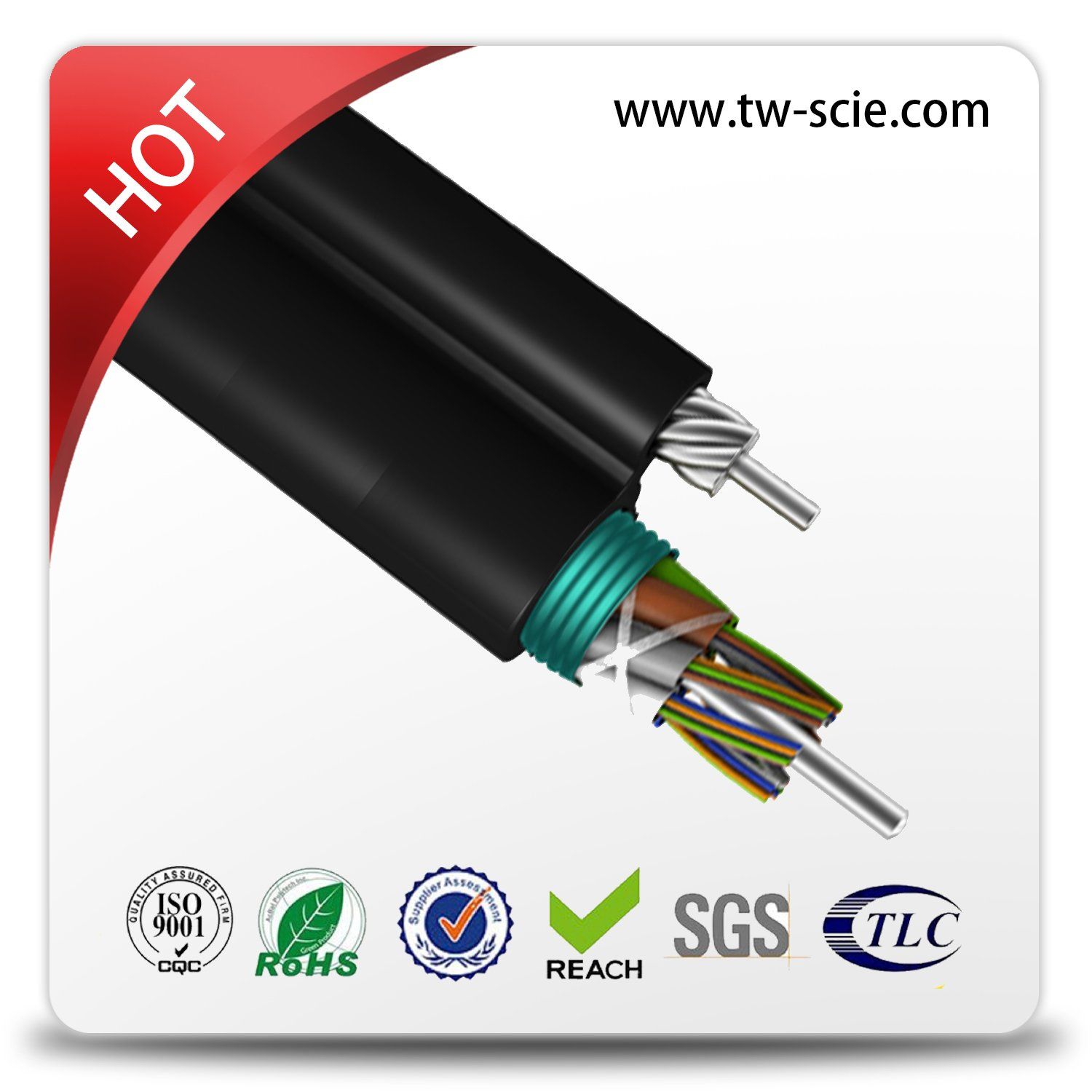

Optical Fiber Cable GYTC8S with Figure 8 Structure for Aerial Use

Name: Optical Fiber Cable GYTC8S with Figure 8 Structure for Aerial Use
Brand: all-electronics-online.com
SKU: 753268135
Availability: InStock
Rating: 4.7 (36 reviews)

Price:	US $ 0.5/Meter
Trade Terms:	FOB
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYTC8S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	China (Mainland)
Brand Name:	Tw-Scie or OEM
Model Number:	GYTC8S
Installation Style:	Aerial
Fiber Brand:	Corning ,Yofc
Loose Tube:	PBT
Waterblocking Material:	Water Blocking Tape
Outer Sheath:	MDPE / HDPE / LSZH
Outer Sheath Color:	Black
Armour Material:	Corrugated Steel Tape
Type:	Single-mode Fiber
Certification:	ISO9001
Application:	Telecommunication

Product Description

Optical Fiber Cable GYTC8S with Figure 8 Structure for Aerial Use

Structure :

1.PE sheath with good UV resisting and protecting cracking as surrounding.
2.small diemeter, light weight, low cost, easy take off
3.flame resistant PE jacket
4.Added oil for Preventing warter entry
5.singal member metel

Features:

1) low loss

2) low dispersion

3) Excellent mechanical and environment properties

4)Compact structure and lightness, flexible and good bend-resustant performance

5)Small outer diameter

6)Applications: Local and inter office communication, CATV and computer ,transmission system

7) Laying modes: Aerial

8)operation temperature:-40+60

Inner packing

cable reel on wood drum which wrapped with a layer/layers/of thermo-resistance material

Outer packing:

Protect by wooden batten or steel tape outside

Technical Parameters:

Cable Count	Out sheath Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage temperature
Cable Count	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(ºC)
2	3.8×5.5	52.00	1500	200	1200	200	20D	10D	-40+60
4	3.8×5.5	52.00	1500	200	1200	200	20D	10D	-40+60
6	3.8×5.5	52.00	1500	200	1200	200	20D	10D	-40+60
8	3.8×5.5	52.00	1500	200	1200	200	20D	10D	-40+60
12	3.8×5.5	52.00	1500	200	1200	200	20D	10D	-40+60

Optical Characteristics:
Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A,B,C)		B1.1:Conventional fiber
		G.652D		B2: Zero dispersion shifted
		G.655		B1.2 :Cut-off wavelength shifted
		G.657(A1,A2 ,B3)		B4: Main technical data for positive dispersion shifted single-mode fiber

Tags: GYXTC8S Figure 8 self-supporting cable

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
