| Prod Model: |
GYTA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
GYTA G652D Optical Fiber Cable |
| Fiber Count: |
2-288 Core |
| Brand Name Of Fiber: |
Corning ,Yofc,as Your Requiremen |
| Loose Tube Material: |
PBT |
| Loose Tube Filling Material: |
Jerry |
| Color Of Loose Tube: |
Blue,Orange, Green, Brown etc |
| Central Strength Member: |
Steel Wire or FRP |
| Single Armour Material: |
Corrugated Steel Tape |
| Core Moisture Protection Methodology: |
Water Blocking Tape or Filling Compound |
| Installation Style: |
Duct,Aerial |
| Application: |
G652D Optical Fiber Cable |
| Certification: |
Reach, Tlc etc. |
| Type: |
Single-Mode or Multi-Mode Fiber |
| Connection Structure: |
G652D Optical Fiber Cable |
| Allowed Lateral Pressure: |
Short Term 1000n; Long Term 300n |
| Allowed Tensile Strength: |
Short Term 1500n; Long Term 600n |
| Core: |
2-288 Core |
| Brand: |
Tw-Scie or OEM |
| Sheath Material: |
MDPE / HDPE / Lszh PE |
Product Description

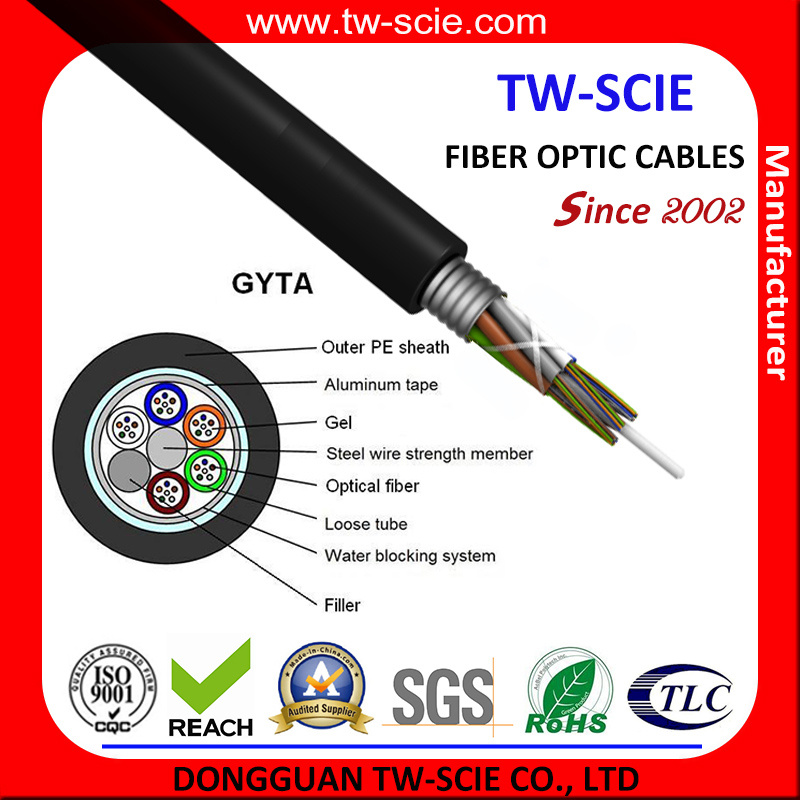

GYTA Optical Fiber G652D Optical Fiber Cable Details:
Product Description
This GYTA Optical Fiber G652D Optical Fiber Cable has been designed for long haul / backbone application. Our stranded loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber. GGYTA Optical Fiber G652D Optical Fiber Cables are designed for easy and economical installation.
GYTA Optical Fiber G652D Optical Fiber Cable Features:
Excellent optical, mechanical & environmental performance
High strength-to-weight ratio
High tensile strength
High crush strength
Corrosion resistance
Very light weight
Very flexible bending radius
GYTA Optical Fiber G652D Optical Fiber Cable Application:
Long haul / backbone application
Duct&Aerial installation
GYTA Optical Fiber G652D Optical Fiber Cable Optical Fiber Technical data:
Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min. Bending radius(mm) | Tension (N) | Crash loading (N/100mm) |
| Static | Dynamic | Short term | Long term | Short term | Long term |
| 2-30 | 9.8 | 95 | 10 times O. D. | 20 times O. D. | 1500 | 600 | 1000 | 300 |
| 32-36 | 10.3 | 115 |
| 38-60 | 10.7 | 115 |
| 62-72 | 11.3 | 140 |
| 74-96 | 12.9 | 175 |
| 98-120 | 14.4 | 210 |
| 122-144 | 15.8 | 245 |
| 146-216 | 16.3 | 260 |
| 218-240 | 19.5 | 345 |
| 242-288 | 21.7 | 415
|
GYTA Optical Fiber G652D Optical Fiber Cable Packaging Detail:
GYTA 2-288 Core Optical Fiber Cable package are wooden drum. Outdoor 2-288 Core Optical Fiber Cable's wooden dimension is 100cm*75cm*75cm, 0.57CBM
Outdoor cable's delivery length according to 2-288 Core Optical Fiber Cable cores.
Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.
Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate
As professioanl manufacturer on optical fibre cables, we can not only offer you optical fibre cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.
Contact with me for this GYTA Optical Fiber G652D Optical Fiber Cable.

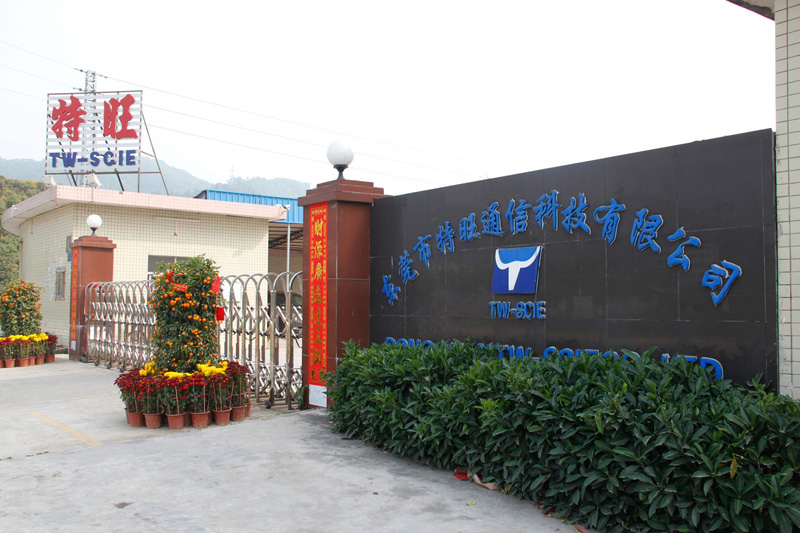

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
