Optical Fiber Passive 0104 OADM (optical multiplexer)

Name: Optical Fiber Passive 0104 OADM (optical multiplexer)
Brand: all-electronics-online.com
SKU: 698406802
Availability: InStock
Rating: 4.7 (71 reviews)

Price:	US $ 17.5-18.5/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SOADM-D1-0104-270-E-2-10-B2-SA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Space:	100g/200g
Fiber Type:	SMF-28e Xb
Channel Space:	20nm
Size:	1008010
Length:	1m
Connector:	Sc APC
Channel:	1270nm
Port:	0104
Application:	SDH
Diameter:	2mm
Usage:	Laptop
Type:	Wired
Support Network:	Ethernet
Certification:	RoHS
Condition:	New
Information Content:	Data, Voice, Vidio

Product Description

OADM

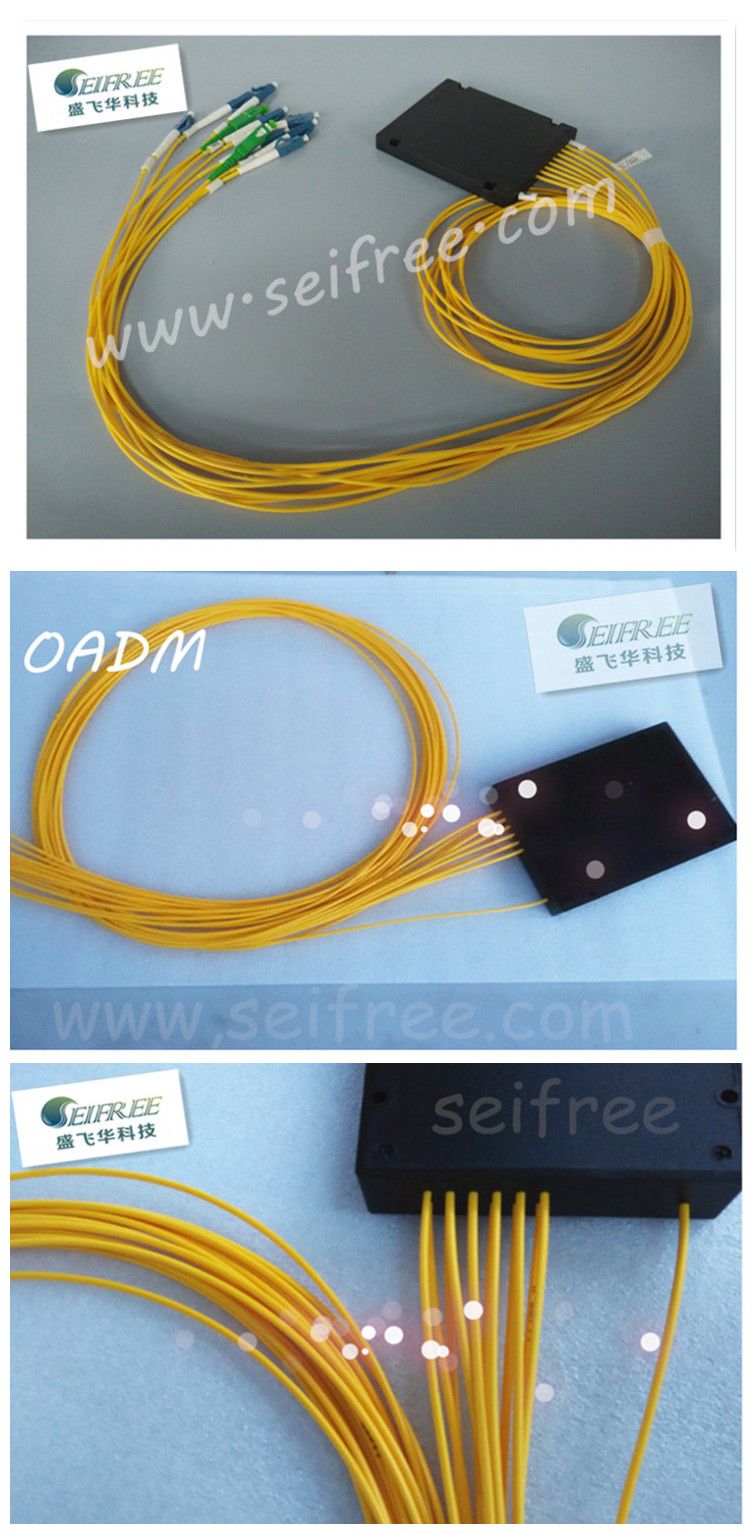

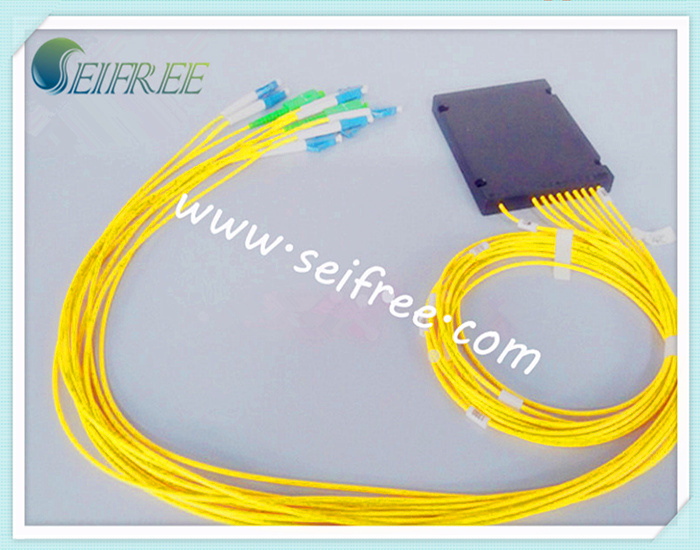

Optical add/drop Multiplexer (OADM)are based on thin film filter technology. The devices are available on ITU channel spacing of 100GHz, 200GHz and 20nm. They are designed and manufactured to meet Telcordia GR-1221-CORE requirements and RoHS compliant.

Applications                                                                                               Features
SONET                                                                                                           High Channel Isolation
SDH                                                                                                                Flat and Wide Passband
OXC system
Ordering Information
SOADM-       -       -       -       -       -       -       -

Space	Channel/ Ports	First Channel(nm)	Fiber Type	Pigtail Dia.	Pigtail Length	Package	Connector Type
D1=100G	0104=λ1D/λ1A	270(1)=1270(1)	E=SMF-28e	09=0.9mm	05=50cm		FU(A)=FC/UPC(APC)
D2=200G	0204=λ1D/λ2A	290(1)=1290(1)	B=SMF-28e XB	20=2mm	10=100cm	B2(3,4)	SU(A)=SC/UPC(APC)
C=20nm	0206=λ1,2D/λ1,2A		/	30=3mm		C2(3,4)
		C33=1550.92			20=200cm	D(1, 3)	LU(A)=LC/UPC(APC)
/	0810=λ1,2,3,4D/λ5,6,7,8A	L87=1588.73		X=Customization

Package and Mounting Dimension (mm)

Stainless Steel Tube (A)

Plastic Box (B)

Aluminum alloy Box (C)

Aluminum alloy Rack (D)

Outline

Mounting

Outline

Mounting

Outline

D1=129x29x160

B2=100x80x10

70x73.5x4Φ3.2

C2=90x72x8

86x68x4Φ3

D2=129x58x160

B3=120x80x18

80x74.5x4Φ3.2

C3=110x95x7.5

99x84x4Φ3.5

D3=485x43.5x230

B4=141x115x18

100x106x4Φ3.2

C4=110x95x15

99x84x4Φ3.5

D4=485x87x230

Item

M=N

M≠N

Dropλ_x=M, Addλ_y=N

0104

0206

0308

0410

0204

0406

0608

0810

φ0.9(φ2,φ3) Plastic Box

φ0.9(φ2/φ3) Aluminum Alloy Box

LGX

D2/ D1 (LC)

19 Inches Rack

Specification

Operating
Wavelength(nm)

ITU-T Grid

Parameter

Unit

Value

Channel Space

100G

200G

CWDM

Fiber Type

SMF-28e/ SMF-28e XB

Channel Number

PMD

<0.1

[email protected]

>0.30

>0.60

>14.0

Directivity

>40

Passband Flatness

<0.50

Return Loss

>45

IL(In->Drop@λdrop)

<1.4

<2.5

<3.2

<1.4

<2.5

<3.2

<1.4

<2.5

<3.2

Pigtail Dia.

0.9 / 2 / 3

IL(Add->Out@λadd)

<1.4

<2.5

<3.2

<1.4

<2.5

<3.2

<1.4

<2.5

<3.2

Pigtail Length

>50

IL(In->Out@λother)

<1.6

<2.8

<4.3

<1.6

<2.8

<4.3

<1.6

<2.8

<4.3

Isolation(Adjacent)

>25

>30

Power Handing

<300

Isolation(Non-Adjacent)

>45

Operating Tem.

ºC

-20~ +70

Isolation(In->Out@λdrop)

>25

Storage Tem.

ºC

-40~ +85

PDL(Max)

0.1

0.15

0.2

0.1

0.15

0.2

PMD(Max)

0.15

0.2

0.25

0.15

0.2

0.25

0.15

0.2

0.25

Return Loss

>45

Wuhan Seifree Technology Co., Ltd is located at the Optical Valley, East Lake National High-tech Development Zone of Wuhan. It specializes in R&D, manufacturing, sales of Optical Passive Components. With the great technologies in optical research and production, Seifree gathers a number of optical talents on fiber communication, which possess the rich experience of R&D and a strong capability of technology innovation.

The product includes thin-film filter (DWDM, CWDM, Triple-play WDM), Fused Bi-Conical Taper (Coupler, WDM) and Waveguide Splitter (PLC Splitter), Micro-optics (Circulator, Isolator) Fiber optical Interconnect (Optical Jumper, Adaptor) and other components and modules of Active (CWDM SFP) and Passive.

We create a good working atmosphere, solidarity and cooperation, and build the corporate culture --Service, Excellence, Innovation, Fidelity, Reciprocity, Economical, and Development. All products are designed, manufactured and delivered to meet the requirements of Telcordia and ISO9001.

We welcome you to consider Seifree to provide the high-quality product and considerate service for meet your demands.
