Original Microwave Radar Motion Detect Sensor Hb100

Name: Original Microwave Radar Motion Detect Sensor Hb100
Brand: all-electronics-online.com
SKU: 787066285
Availability: InStock
Rating: 4.6 (30 reviews)

Price:	US $ 5.5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HB100
Frequency:	10.525GHz
Input Voltage:	5VDC
Current Consumption:	30-40mA
Color:	Green
Usage:	LED Lighting or Security Area
Setting Time:	3ms
Operating Temperature:	-15 ~ 5 'c

Product Description

Microwave Sensors Modules HB100

Detail:

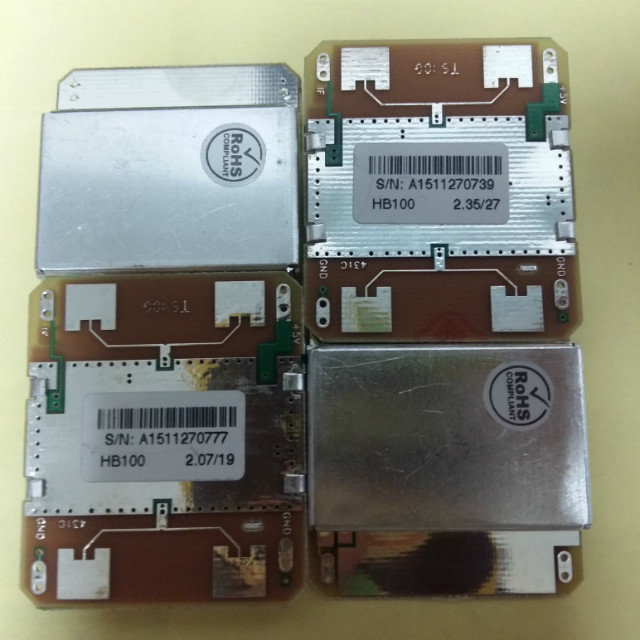

HB100 Miniature Microwave Motion Sensor is a X-Band Bi-Static Doppler transceiver module. Its built-in Dielectric Resonator Oscillator (DRO) and a pair of Microstrip patch antenna array, make it ideal for OEM usage in motion detection equipment. This module is ideally suitable for false alarms reduction in intruder detectors when work together with Passive Infrared (PIR) sensor. It can also be used for auto-door opening and vehicle speed measurement.

Specifications:

frequency setting	10.525GHz
setting time	3 ms
supply voltage	5V DC
current consumption	30-40mA
Operating Temperature	-15 ~ 5 'C

Specifications:
1) frequency setting: 10.525GHz (typ)
2) setting time: 3(typ) μ Sec
3) supply voltage: 5.0VDC
4) current consumption: 30-40mA
5) Operating Temperature: -15 ~ 5 'C

Features:
1) Low current consumption
2) CW or Pulse operation
3) Flat profile
4) Long detection range

Applications:
Microwave-PIR motion detector
Speed measurement
Lighting control

Warm note:
1, Strictly prohibited to operate in charge to avoid any mistake, such as burn out circuit or get an
electric shock.
2,Avoid installed in the hot sun rain, to prevent damage or affect the lifetime.
3: Better install far away from the place of the magnetic field or the conductor to avoid wrong actions.
