Name: OTDR Launch Cable Packing
Brand: all-electronics-online.com
SKU: 796633135
Availability: InStock
Rating: 4.9 (150 reviews)

Price:	US $ 145-180/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	OTDR launch cable packing
Length:	500m, 1km, 2km... 5km ( Custom )
Fiber Optic Connectors Available:	FC, LC, Sc, ST/PC/Upc/APC
L X W X H:	24 X 14 X6.5 Cm
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC-SC
Certification:	ISO9001
Brand:	Datolink
Sheath Material:	PVC or LSZH

Product Description

Profile

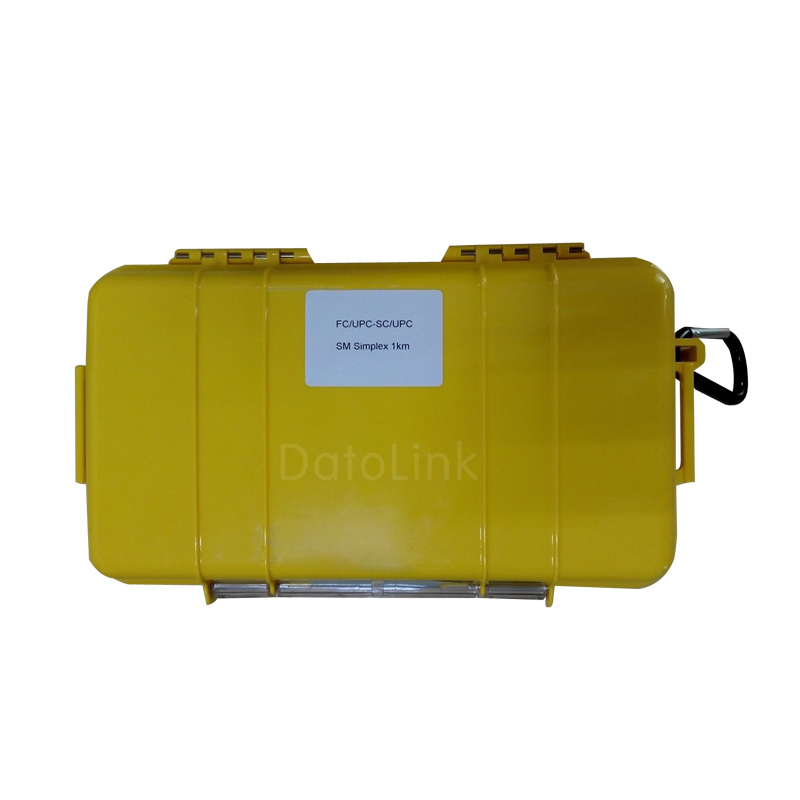

Designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR
Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's) to
help minimize the effects of the OTDR's launch pulse on measurement uncertainty.
Available in many different configurations and fiber lengths

Features

1.The OTDR test extension line, OTDR, OTDR products
2.Mainly used to compensate for the OTDR test blind area, central fiber
3. Without any fusion joint, small volume, light weight Easy to carry.
4.Single-mode, multimode ( 62.5\125 )
5. Length 500M, 1KM, 2KM... 5KM ( custom )
6.Loss less than or equal to 0.5dBm\km
7.With excellent sealing performance, waterproof and dustproof explosion-proof
8.Imported yellow shell
9.Single-mode or multimode optical fiber
10.Length 1-3 km selected at random
11.Fiber optic connectors available: FC, LC, SC, ST/PC or APC

Specification

L x W x H : 24 x 14 x6.5 cm
Material: SR Polypropylene
Color : Yellow
Operating Temperature: -40°to +55ºC
Typical Loss: <1dB @ 1310nm for 1000 meters

Dimension	L 9.37" x W 5.56" x H 2.62"
Material	SR Polypropylene
Color	Yellow
Weight	0.75kg without fiber
Packaging	Rugged, hard-shell transit case
Fiber Types	G652D, G657A, OM1, OM2, OM3, OM4
Fiber Length (m)	100 up to 2000 (max)
Storage Temperature	-40 to +85ºC
Operating Temperature	-40 to +85ºC
Humidity	0 to 95%, non-condensing

Shenzhen Datolink Communication Technology Co., Ltd. Was founded in the January of 2007 by several engineers, who have had many years of working experience in fiber optical as well as in structured cabling industry. Datolink is a high technology oriented company with fiber optical products and structured wiring. We are dedicated to the design, manufacture and sales, meanwhile, we can provide customers with complete cabling solutions in installation and maintenance.

The company has a strict and comprehensive system of quality control and approved the standard ISO9001: 2000. Is well connected with raw materials providers and factories worldwidely, to offer customers a broad line of products with competitive prices and very soon time of delivery.

Our products have been exported to over 20 countries and regions such as Europe, Middle East, Southeast Asia, Latin America, etc. Datolink Ltd is committed to offer the partners high quality products and professional services, we look forward for the successful development with mutual-benefits, for casting the future of fiber optical and structured cabling!
