| Prod Model: |
ADSS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Strength Member: |
Non-Metallic |
| Fiber Type: |
G652 |
| Cable Type: |
Sm or mm |
| Model Number: |
ADSS |
| Sheath: |
PE or at |
| Cable Structure: |
Self-Supporting |
| Short Span: |
100-1400km |
| Aramid Yarn: |
Yes |
| Material: |
All Dielectric |
| Core Number: |
2-96 |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
Product Description

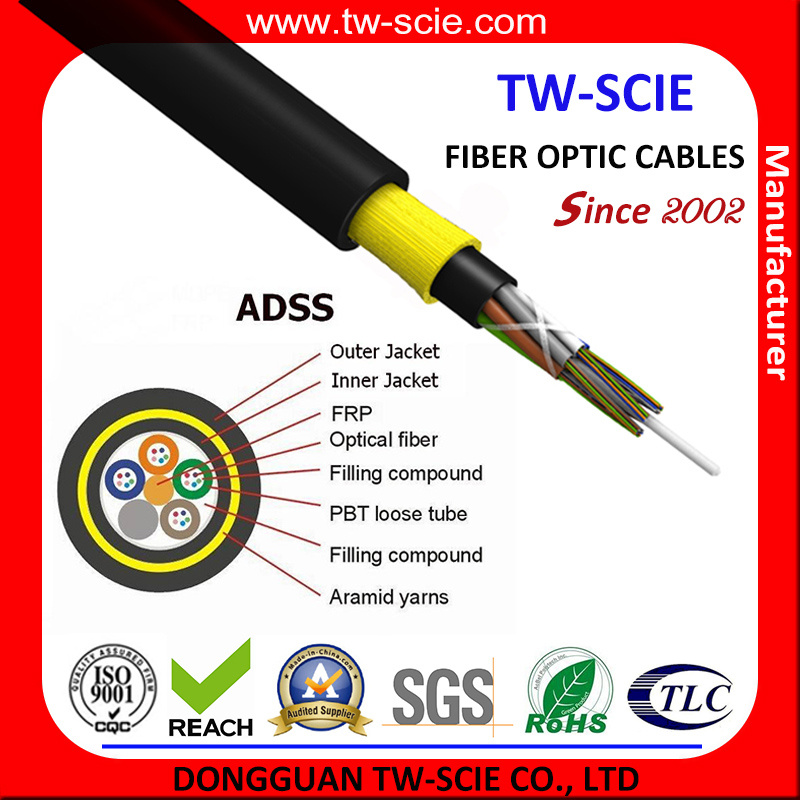

Outdoor 24 Core Self-Support Aerial Optic Fiber Cable
Product Description
ADSS cable, 1000m span, AT sheath (24cores/ wind speed:25m/s, ice thickness:5mm)
Product Description:
Structural Parameters | Central reinforcing member FRP | Cable dia. 2.1 mm |
loose tube
(fiber jelly) | external dia. 2.0 mm |
| inner sheath | thickness 0.9 mm |
| Out sheath | thickness 1.70 mm |
| Kelar yarn | area 28.6 mm2 |
| Standard Section area | area 167 mm2 |
Technical Parameters
|
Cable external dia. | 14.6 mm |
| Cable Weight | 175 kg/km |
| Rated tensile strength | 61.7 kn |
| Max.Allowable strength MAT | 24.7 kn |
| Every day stress EDS | 15.4 kn |
Ultimate stress
( fiber stress)(KN) | 37 kn |
Young's modulus | 28.6 kn/mm2 |
| Thermal expansion coefficient | -0.32 10-6/ºC |
| Crush resistance | long time 1100 n/100mm |
| short time 2200 n/100 mm |
Min bending radius | operation 15D mm |
| Installation 20D mm |
| Temperature range | Installation -15∽ +60ºC |
| | | transportation and operation -40∽ +70ºC |
| Optical fiber extra length | 0.5∽0.7% |
| Outer sheath type | Electric tracking resistance AT sheath |
| Anti-electro-corrosion measurement | Cable outer sheath used Northern Europe sheath type 6081,and it is well anti-electro-corrosion. |
Introduction:
Qingdao powtech Electronics Co.,Ltd is one company which in line with ADSS/OPGW cable,cable accessories for 20 years,experienced workers,advanced technology,equipments,professional after-sales service,high quality product we can supply at a favoured price than other manufacturers in the same production line.
We are ur best choice for mutual profit .
Advantages:
Reliability
Powtech has been engaged in designing and manufacturing ADSS/OPGW cable,Cable accessories nearly for 20 years.
Powtech professional design teams and strict quality control systems ensure each product from Powtech is reliable and ideal deals.
Powtech quality products meet the demands of many clients all around the world well according to their specific requirements.
Faster Delivery
With our own factory and product line, we can ensure faster delivery in the industry.
Further more, we have accumulated rich resources in shipping channels, which also promise our faster delivery time.
Powtech standard cases can be finished within 7 days and those custom-made within 8 days.
Lower Price
Powtech are committed to providing the best products for money of our customers all over the world.
Powtech has its own factory and massive production line,Which ensures that we can procure all materials at a lower purchasing cost than our competitors.
We promise that all products from Powtech are the most affordable in the industry.
Why Choose Us?
1.Strict quality control system
2.Factory direct-sales,Lower purchasing cost
3.Professional,efficient after-sales service,Time and manpower saving
4.Experienced workers team,Advanced technicians,Sophisticated equipment
5.Small trial order/OEM product/artwork is acceptable
6.ADSS/OPGW cable,cable accessories supplier for 20 years from China,ISO certificated
FAQ
Q1:Can u provide us with samples?
Powtech answer:Yes, we can provide 1-2 pieces free samples, But u should pay express
cost or u provide us with express account number.
Q2:If we need customized/OEM product,Can u supply?
Powtech answer:Yes,Customized/OEM product/artwork is available for us.Professional
designers,Advanced technicians and mold modifications department ensure that we will make
the exact model for u accordingly.
Q3:If u can accept small trial order?
Powtech answer:Yes,Small trial order can be available also,But u should pay 100% T/T down
payment before production.
Q4:What payment terms available for u?
Powtech answer:If order amount less than 10000USD,100% T/T;If amount more than
10000USD,30%T/T in advance plus 70%T/T before shipment.
U can place an order via Alibaba website,Which is also very safe
and has payment protection for u.
Q5:Can u offer discount ?
Powtech answer:Yes,Discount available on large order.The larger the order,The more
discount we will offer.
Q6:What is ur delivery time?
Powtech answer:Usually,Delivery will be made within 2 weeks after down payment;If order very
large,1 month we will need.Please note,Delivery time is production time,Shipping time not
included,If u want to know,We can help u consult shipping company for details.
DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
