| Prod Model: |
GYXTC8S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Loose Tube Material: |
PBT with Jerry |
| Outer Sheath Color: |
Black |
| Fiber Color: |
Blue,Orange,Green,Brown,Grey,White,Red,Black,Yello |
| Installation: |
Self-Support Aerial |
| Waterblocking: |
Water Blocking Tape/Yarn |
| Armour Material: |
Corrugated Steel Tape |
| Fiber Count: |
2-24 Core |
| Fiber: |
Corning ,Yofc,Draka, or as Your Requirement |
| Outer Sheath Material: |
MDPE / HDPE / LSZH |
| Messenger Wire: |
1.4mm / 1.0*7-3.0mm |
| Application: |
Communication |
| Certification: |
ISO9001 |
| Type: |
Fiber Optics |
Product Description

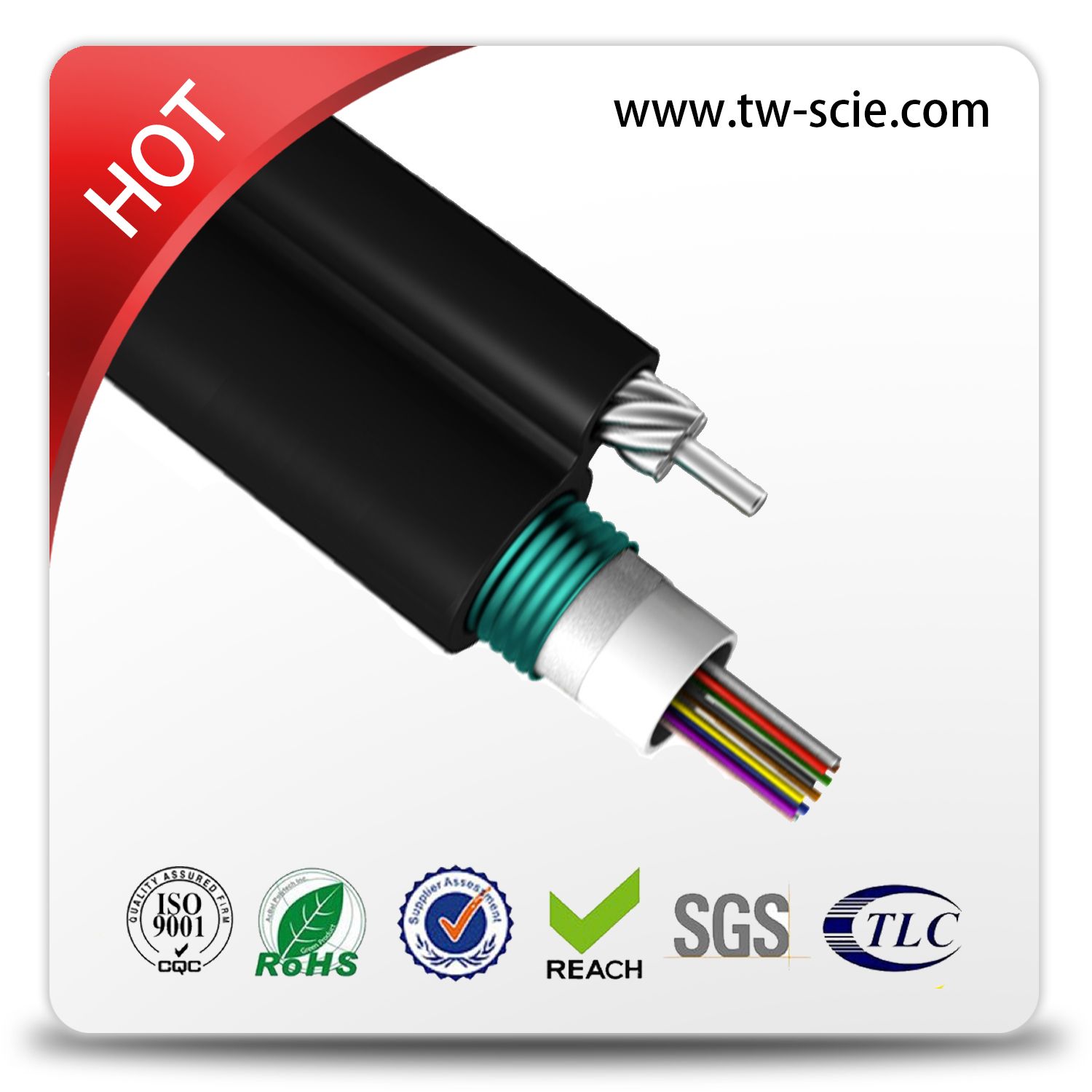

Central tube fibure 8 aerial optical fiber cable GYXTC8SProduct Description
Dong Guan Tw-Scie Co., Ltd. Is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
High Quality GYTA GYXTW GYFTY GYTS GYXTC8S ADSS 12 24 48 core single mode fiber optic cable
Feature:
1.Low insertion loss and back reflection loss
2.Good exchangeability
3.Good Durability
4.High temperature stability.
5.Precise connector
Test Item | Test Conditions | Parameter(dB) |
Optical indicator | IL | 1310nm LED | <0.3(typical:0.1) |
Environmental (the max change of Insertion loss) | RL | 1310nm LD | PC>45,UPC>50,APC>60 |
High Temperature | +85ºC,168hours | 0.2 |
Temperature Cycle | -40ºC~+75ºC,21 cycles,168 hours | 0.2 |
Humidity& Heat(stable situation) | 75ºC, 95%R.H, 168 hours | 0.2 |
Humidity& Heat Cycle | -10ºC~+65ºC, 95%R.H, 21 cycles,168 hours | 0.2 |
Mechanical (the max change of Insertion loss) | Vibration | 10Hz ~55Hz, 1.5mm(p-p) | 0.1 |
Bend | 0.9kgf, -90° 100 cycles | 0.1 |
Torsion | 2.5kgf, 10 time/min,±180°,200 times | 0.1 |
Tensile Strength | 90N, 10min | 0.1 |
Falling | 1.5m High, 8 time | 0.2 |
Repeatability | 10 times | 0.1 |
Durability | >500 times | 0.2 |
Our main products as following:
- 1. 1550nmExternal Modulation Optical Transmitter
- 2. 1500nm EDFA
- 3. 1310nm&1550nm Optical Transmitter
- 4. All kinds of optical receiver,optical nodes
- 5. Optical related products
Besides the quality, we also focus on the sales service, our test equipments all are from American AGILENT(HP), optical spectrometer,network analyzer etc. We could research and meet any of your questions and enquiries.
Packaging & Shipping
30% deposit should be paid by T/T and balance 70% paid before delivery.
Delivered by air, sea or wail.
Our Services
1.Your inquiry related to our products or prices will be replied within 24hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM & ODM, any your customized requirements we can try to help you realize.
4.Protection of your sales area ,ideas of design and all your private information.
5. 1 years warranty.
1. Cable Description

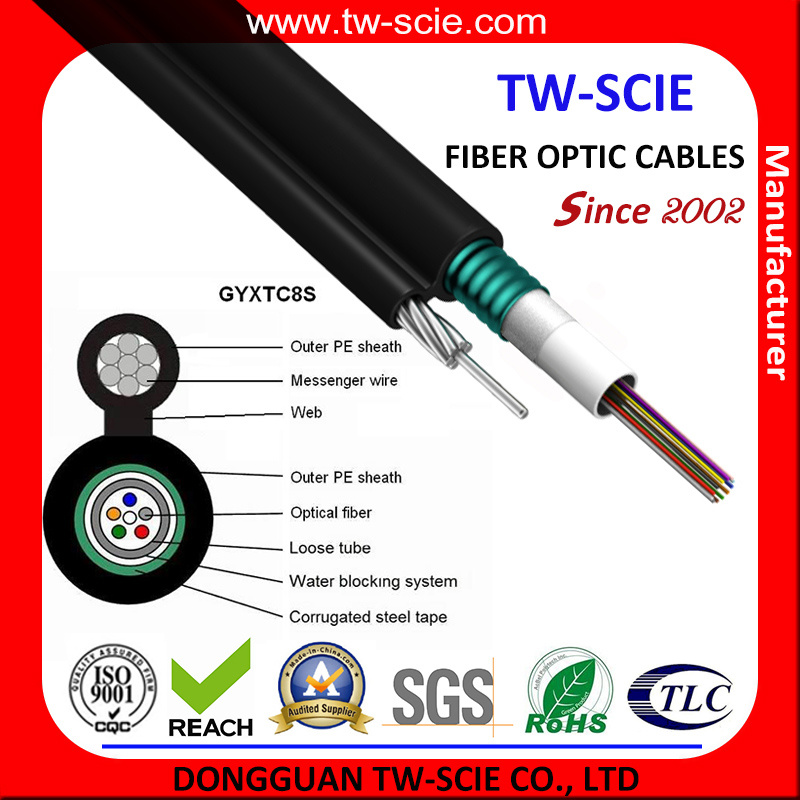

The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic, the tubes are filled with a water-resistant filling compound. Loose tubes filled with water proof compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.
2.Application
· Adopted to Outdoor distribution.
· Suitable for aerial duct and buried method.
· Long distance and local area network communication.
3. Characteristics
· High tensile strength of stranded wires meet the requirement of self-supporting
· and reduce the installation cost.
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· The following measures are taken to ensure the cable watertight:
· Loose tube filling compound
· 100% cable core filling
· steel tape moisture barrier
4.Cable construction details
5.Cable Mechanical characteristic
6.Fiber characteristic
Fiber Parameters:
No. |
Items |
Unit |
Specification |
G.652D |
1 |
Mode Field Diameter |
1310nm |
μm |
9.2±0.4 |
1550nm |
μm |
10.4±0.5 |
2 |
Cladding Diameter |
μm |
124.8±1.0 |
3 |
Cladding Non-Circularity |
% |
≤1.0 |
4 |
Core-Cladding Concentricity Error |
μm |
≤0.6 |
5 |
Coating Diameter |
μm |
245±7 |
6 |
Coating Non-Circularity |
% |
≤6.0 |
7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
8 |
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
9 |
Attenuation(max.) |
1310nm |
dB/km |
≤0.4 |
1550nm |
dB/km |
≤0.3 |
Items |
Specifications |
Fiber Count |
12 |
Colored Coating Fiber |
Dimension |
250±15μm |
Color |
Blue,Orange,Green,Brown,
Grey,White,Red,Black, Yellow,Violet,Pink, Aqua
|
Loose Tube |
Dimension |
2.50±0.05mm |
Material |
PBT |
Color |
Natural |
Strength Member |
Dimension |
7*1.0mm |
Material |
Stranded Steel Wire |
Outer Jacket |
Dimension |
5.0±0.2mm /7.5±0.3mm |
Material |
PE |
Color |
Black |
Items |
Unite |
Specifications |
Tension(Long Term) |
N |
1500 |
Tension(Short Term) |
N |
2500 |
Crush(Long Term) |
N/10cm |
1000 |
Crush(Short Term) |
N/10cm |
2000 |
Min. Bend Radius(Dynamic) |
mm |
20D |
Min. Bend Radius(Static) |
mm |
10D |
Installation Temperature |
ºC |
-20~+60 |
Operating Temperature |
ºC |
-40~+70 |
Storage Temperature |
ºC |
-40~+70 |
