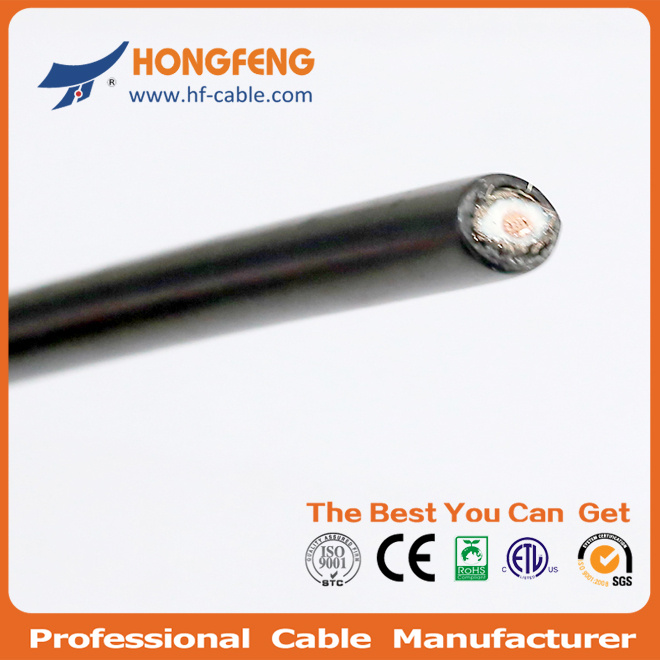

Outdoor CATV Application Coaxial Cable Rg11

Prod Model:	Coaxial Cable RG11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Rg11 Syv-75-9
H.S.Code:	85442000
Standard Of Rg11:	European/JIS/Mil
Place Of Origin:	Hangzhou, Zhejiang, China
Apply:	CATV, Smatv, Satellite
Inner Conductor:	14 AWG (1.63mm) Cu/CCS/CCA
Shielding:	Al.Foil/Pet+ Braiding
Rg11 Messenger Cable:	Trishield Rg11
Trunk Cable Rg11:	Rg11 Cable
Rg11 Coaxial Cable:	Coaxial Cable Rg11
Application:	Long Distance Symmetric Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	ETL
Model:	Coaxial
Brand:	Hf/OEM
Type:	Coaxial

Product Description

JIS Standard RG11/SYV-75-9 / 8D-FB Coaxial Cable 75 Ohms CATV/Satellite/Radio/Atenna Outdoor Trunk Cable

1. Electrical & Mechanical Characteristics
Impedance:
75± 5 Ohm
Nominal capacitance:
53 pF/m
Velocity of propagation:
66%
Insulation resistance:
>2000 Mohm. Km
Inner conductor resistance:
13.5 Ohm/Km
Outer conductor resistance:
24.1 Ohm/Km
Operating temperature range:
-30 ° C - +70 ° C
Cable weight (approx. ):
116.4 -140.4Kg/Km




2. Main products:
1) RG series Coaxial Cable: Rg59, RG6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, RG316, etc;
2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, 3D-FB, 5D-FB, 8D-FB, 10D-FB, 12D-FB, etc;
3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;
4) TRUNK Cable: P3 412, 500, 540, 625, 750, 850;
5) LMR SERIES: LMR200, LMR400, LMR600;
6) Network Cables: LAN Cable CAT3, LAN Cable CAT5, LAN Cable CAT5e, LAN Cable CAT6, LAN Cable CAT7; 7)Combined Cable: Siamese Cables: RG59+2C, RG6+LAN cable, RGB5CRG59, BT3002.



3. Contact:

Mr. Leo
Hangzhou Hongfeng Cable Co., Ltd.
www.hf-cable.com
www.hf-cable.com. Cn
Tel: +86-571-58615536
Fax: +86-571-63816227
MB: +86-18268847560

Frequency(MHz)	Attenuation (dB/100 m)	Attenuation (dB/100ft)
50	3.1	0.95
100	4.2	1.28
250	6.8	2.07
300	7.5	2.29
350	7.9	2.41
400	8.5	2.59
450	9.1	2.77
500	9.5	2.9
550	10.1	3.08
600	10.5	3.2
750	12.1	3.69
860	13.2	4.02
1000	14.3	4.36
1450	18.6	5.67
2050	23	7.01
