| Prod Model: |
GYTS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fiber Type: |
G652D, Om1 Om2 Om3 Om4 9/125 50/125 62.5/125 |
| Fiber Count: |
2-288 Cores |
| Fiber: |
Single Mode |
| Central Strength Member: |
Steel Wire/FRP |
| Tube: |
Loose Tube Stranded/Sz Stranded |
| Armored: |
Aluminium Tape/Steel Tape |
| Applications: |
Aerial, Duct |
| Material Of Jacket: |
PE/LSZH /Flame Retardant PE |
| Bending Radius: |
Static 10*Cable-D Dynamic 20*Cable-D |
| Certificate: |
ISO9001 Tlc RoHS |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
CCC |
| Connection Structure: |
Other |
| Core: |
2-288 |
| Brand: |
Efon |
| Sheath Material: |
PE/Lszh Sheath/Flame Retardant PE/Anti-Rodent PE |
Product Description
Outdoor Direct Buried Singlemode Optical Fiber Cable
Description:
GYTS Armored Loose Tube Single Jacket/Single Armor fiber optic cables are designed to provide high fiber
counts with the flexibility and versatility required for today's most demanding installations, including duct and
underground conduit.

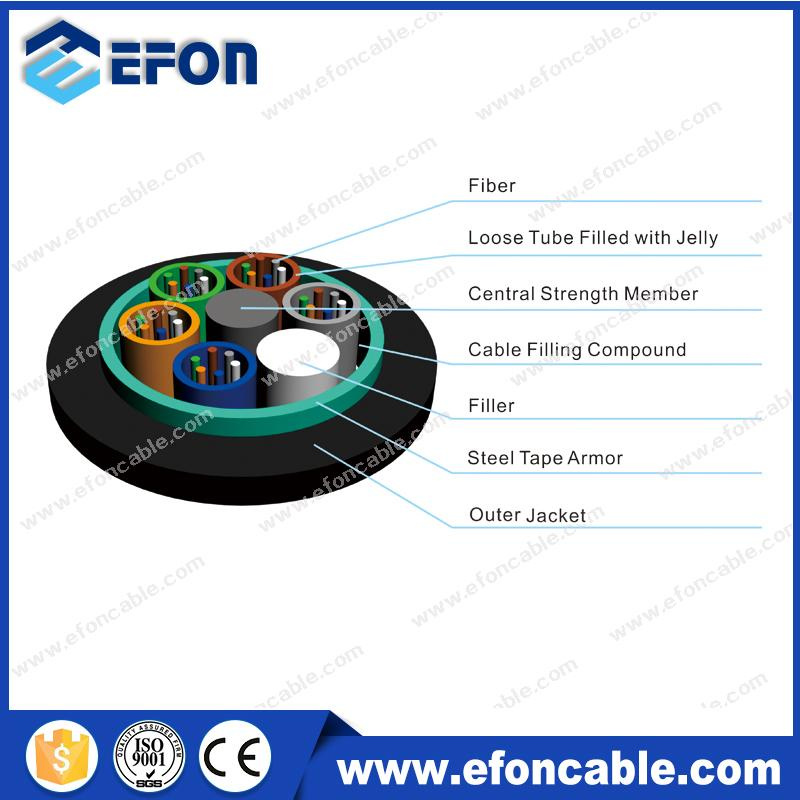

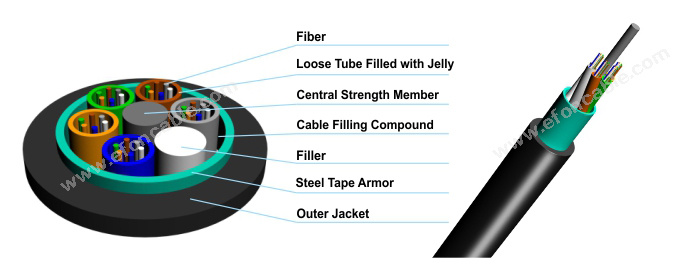

Product Construction:
Fiber:
2-288 fiber
Multi-loose tube gel-filled
Central Strength Member:
Fiberglass reinforced Platic (FRP) or steel wire. Armor:
Corrugated steel tape
Outer Jacket:
Black UV Polyethylene(PE)
Features:
- Up to 288 fibers.
- Loose tube gel-filled construction for superior fiber protection.
- Corrugated steel tape armor to protect cable from mechanical damage.
- UV and waterproof design.
Application:
- Interbuilding voice or data communication backbone.Installed in duct, underground conduit .
Optical Characteristics:
Structure and Technical Specifications:
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fiber Per Tube | Max No. of (Tubes+fillers) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) |
Short Term | Long Term | Short Term | Long Term |
2~36 | 10.7 | 132 | 6 | 6 | 1500 | 600 | 1000 | 300 |
38~72 | 12.0 | 165 | 12 | 6 | 1500 | 600 | 1000 | 300 |
74~96 | 13.8 | 204 | 12 | 8 | 2000 | 600 | 1000 | 300 |
98~120 | 15.3 | 240 | 12 | 10 | 2000 | 600 | 1000 | 300 |
122~144 | 17.0 | 284 | 12 | 12 | 2500 | 600 | 1000 | 300 |
146~216 | 17.1 | 285 | 12 | 18(2 layers) | 2500 | 600 | 1000 | 300 |
218~288 | 19.5 | 350 | 12 | 24(2 layers) | 3000 | 600 | 1000 | 300 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
We produce and test cable comply with following standard:
Mechanical Performance |
Max Tension Performance | IEC 60794-1-2-E |
Max. Operation Tension | IEC 60794-1-2-E1 |
Crush Test | IEC 6079 -1-2-E3 |
Impact Test | IEC 60794-1-2-E4 |
Repeated Bending | IEC 60794-1-2-E6 |
Torsion Test | IEC 60794-1-2-E7 |
Cable bend | IEC 60794-1-2-E11A |
Attenuation Coefficient | ITU-T G.652 |
Structural Test | IEC-60793-1-20 |
Environmental Performance |
Temperature Cycling | IEC 60794-1-2-F1 |
Water Penetration | IEC 60794-1-2-F5B |
Filing Compound Flow | IEC 60794-1-E14 |
