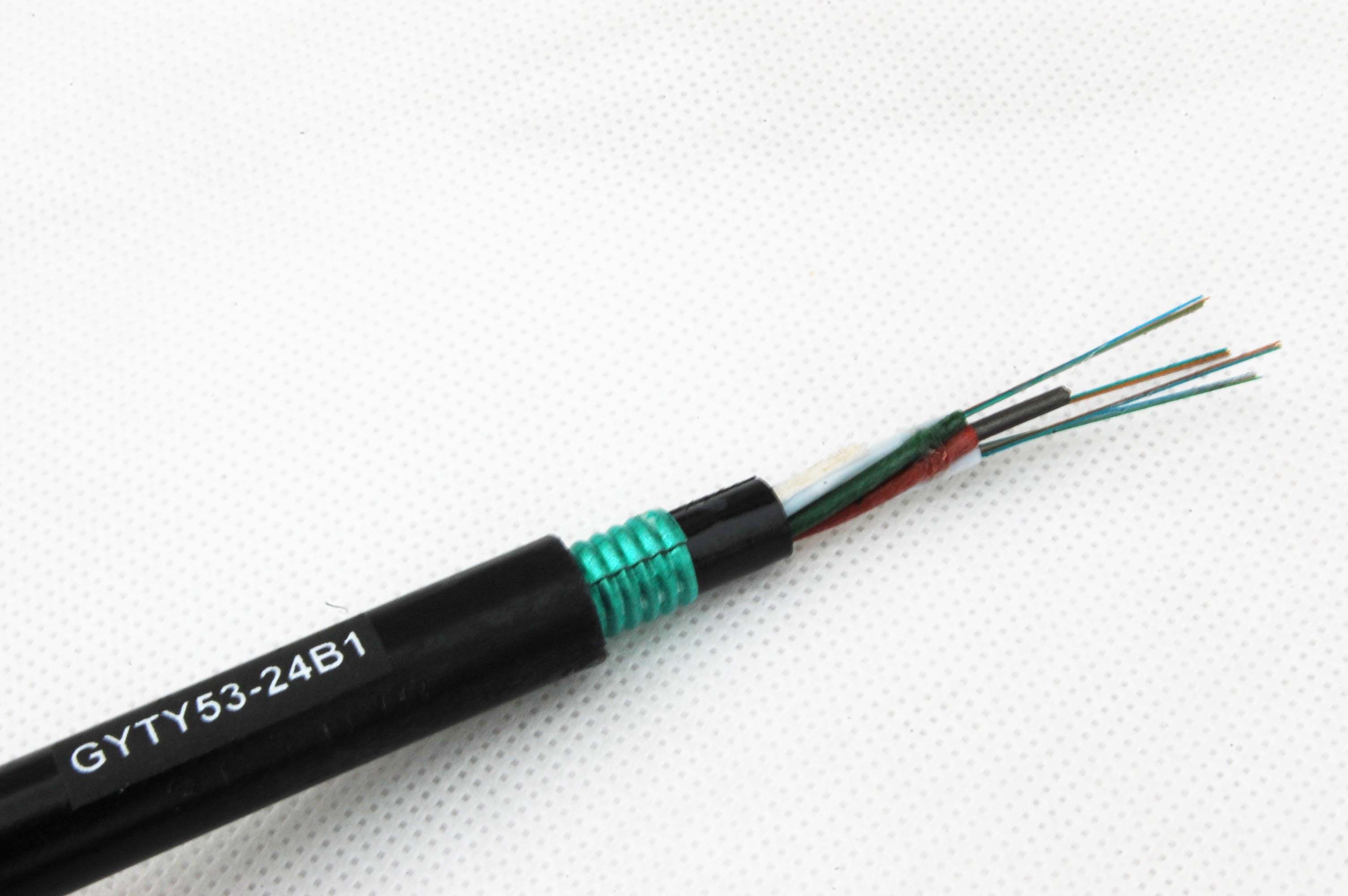

Outdoor Double Armoured Optic Fiber Cable

Prod Model:	GYTY53 Double Armoured Optic Fiber Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No:	Gyty53 Double Armoured Optic Fiber Cable
Fiber Count:	2-288 Core
Brand Name Of Fiber:	Corning ,Yofc,Draka, Fujikura...as Your Requiremen

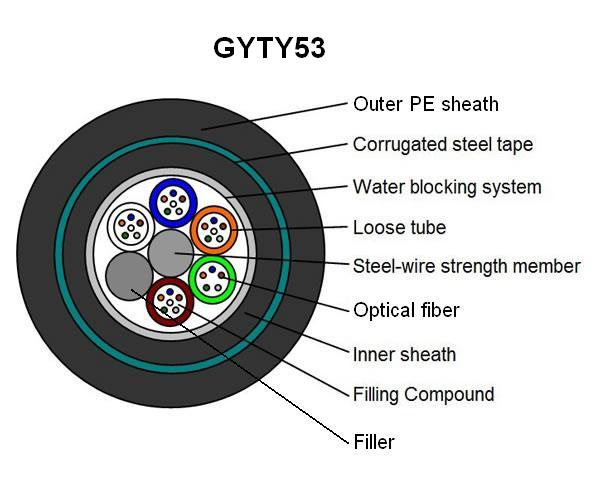

Loose Tube Material:	PBT
Loose Tube Filling Material:	Jerry
Color Of Loose Tube:	Blue,Orange,Green, Brown,Red etc
Central Strength Member:	Steel Wire or FRP
Single Armour Material:	Corrugated Steel Tape Under PE Sheath
Core Moisture Protection Methodology:	Water Blocking Tape or Filling Compound
Installation Style:	Direct-Burial, Duct
Application:	Double Armoured Optic Fiber Cable
Certification:	Reach,Tlc,etc
Type:	Single-Mode or Multi-Mode Fiber
Connection Structure:	Double Armoured Optic Fiber Cable
Allowed Lateral Pressure:	Short Term 3000n; Long Term 1000n
Allowed Tensile Strength:	Short Term 3000n; Long Term 1000n
Core:	2-288 Core
Brand:	Tw-Scie or OEM
Sheath Material:	MDPE / HDPE / LSZH PE

Product Description

Outdoor Double Armoured Optic Fiber Cable Details:

Product Description
This Outdoor Double Armoured Optic Fiber Cable are suitable for installation in harsh environments where mechanical impact on the cable is to be expected. E. G. Direct buried opplication. Outdoor Double Armoured Optic Fiber Cable are also suitable for installation in ducts where the rodent resistance is to be expected or the moisture resistance is expected.


Outdoor Double Armoured Optic Fiber Cable Features:
Excellent optical, mechanical & environmental performance
Moisture-proof & roden-proof
High strength-to-weight ratio
High tensile strength
High crush strength
Corrosion resistance
Very flexible  bending radius

GYTY53 Double sheath PE Armored 6 Core Fiber Optic Cable Application:
Long haul / backbone application
Direct-burial, duct installation

GYTY53 Double sheath PE Armored 6 Core Fiber Optic Cable Technical data:

Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min.Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
			Static	Dynamic	Short term	Long term	Short term	Long term
2-24	12.6	185	12.5 times O.D.	25 times O.D.	3000	1000	3000	1000
26-36	12.9	195
38-60	13.4	200
62-72	13.9	230
74-96	15.5	275
98-120	17	320
122-144	18.4	365
146-216	18.9	385
218-240	22.1	495
242-288	24.3	580

Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.

Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate

As professioanl manufacturer on optical fibre cables, we can not only offer you optical fibre cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.

Contact with me for this Outdoor Double Armoured Optic Fiber Cable.
