| Prod Model: |
GYTA Ducted Fiber Optic Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
GYTS Ducted Fiber Optic Cable |
| Fiber Count: |
2-288 Core |
| Brand Name Of Fiber: |
Corning ,Yofc,as Your Requiremen |
| Loose Tube Material: |
PBT |
| Loose Tube Filling Material: |
Jerry |
| Color Of Loose Tube: |
Blue, Orange, Green, Brown, Grey, White, Red etc |
| Central Strength Member: |
Steel Wire or FRP |
| Single Armour Material: |
Corrugated Steel Tape |
| Core Moisture Protection Methodology: |
Water Blocking Tape or Filling Compound |
| Installation Style: |
Duct,Aerial |
| Application: |
Ducted Fiber Optic Cable |
| Certification: |
Reach, Tlc etc. |
| Type: |
Single-Mode or Multi-Mode Fiber |
| Connection Structure: |
Ducted Fiber Optic Cable |
| Allowed Lateral Pressure: |
Short Term 1000n; Long Term 300n |
| Allowed Tensile Strength: |
Short Term 1500n; Long Term 600n |
| Core: |
2-288 Core |
| Brand: |
Tw-Scie or OEM |
| Sheath Material: |
MDPE / HDPE / Lszh PE |
Product Description

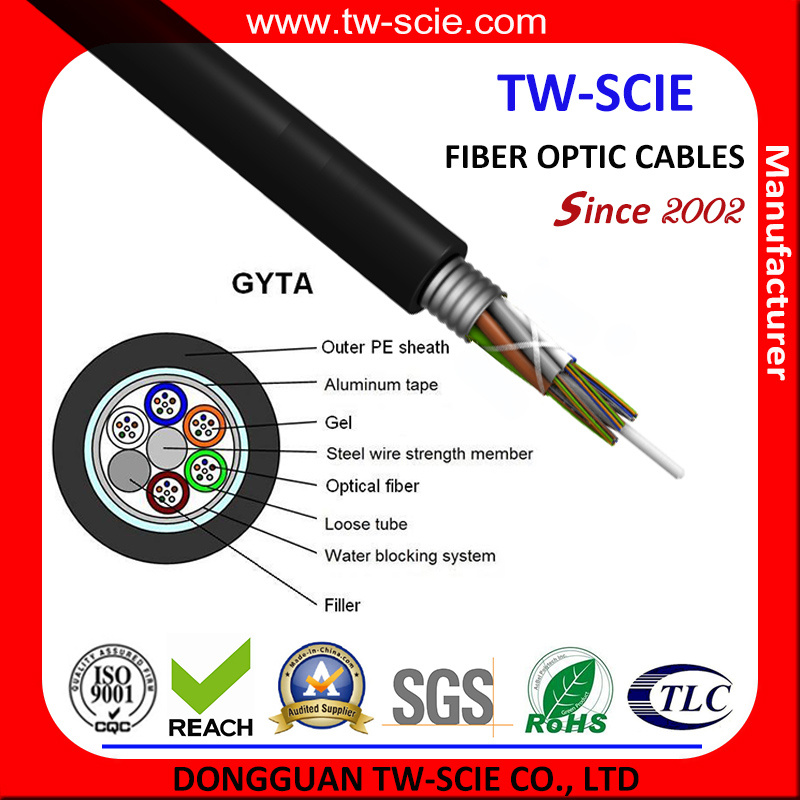

GYTA Ducted Fiber Optic Cable Details:
Product Description
This GYTA Ducted Fiber Optic Cable has been designed for long haul / backbone application. Our stranded loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber. GYTA Ducted Fiber Optic Cables are designed for easy and economical installation.
GYTA Ducted Fiber Optic Cable Features & Application:
Excellent optical, mechanical & environmental performance
High strength-to-weight ratio
High tensile strength
High crush strength
Corrosion resistance
Very light weight
Very flexible bending radius
Long haul / backbone application
GYTA Ducted Fiber Optic Cable Optical Fiber Technical data:
Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min. Bending radius(mm) | Tension (N) | Crash loading (N/100mm) |
| Static | Dynamic | Short term | Long term | Short term | Long term |
| 2-30 | 9.8 | 95 | 10 times O. D. | 20 times O. D. | 1500 | 600 | 1000 | 300 |
| 32-36 | 10.3 | 115 |
| 38-60 | 10.7 | 115 |
| 62-72 | 11.3 | 140 |
| 74-96 | 12.9 | 175 |
| 98-120 | 14.4 | 210 |
| 122-144 | 15.8 | 245 |
| 146-216 | 16.3 | 260 |
| 218-240 | 19.5 | 345 |
| 242-288 | 21.7 | 415
|
GYTA Ducted Fiber Optic Cable Packaging Detail:
GYTA Ducted Fiber Optic Cable package are wooden drum. Outdoor 2-288 Core Optical Fiber Cable's wooden dimension is 100cm*75cm*75cm, 0.57CBM
Outdoor cable's delivery length according to 2-288 Core Optical Fiber Cable cores. Also accept custom cabledrum from customers. welcome to contact us!
Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.
Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate
As professioanl manufacturer on optical fiber cables, we can not only offer you optical fiber cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.
