| Prod Model: |
GYTY53 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation Style: |
Direct Buried |
| Place Of Origin: |
Guangdong Dongguan |
| Name: |
GYTY53 Fiber Optic Cable |
| Outer Diameter: |
9.6~15.6mm |
| OEM: |
Yes |
| Gross-Weight: |
90-230 Kg/Km |
| Color: |
Yellow/Orange/Blue/Customized |
| Model Number: |
GYTY53 |
| Jacket Material: |
LSZH/PVC/TPU |
| Certificate: |
ISO9001 and Ce |
| Application: |
Communication |
| Certification: |
ISO9001 |
| Type: |
Fiber Optic |
| Sheath Material: |
PE |
Product Description

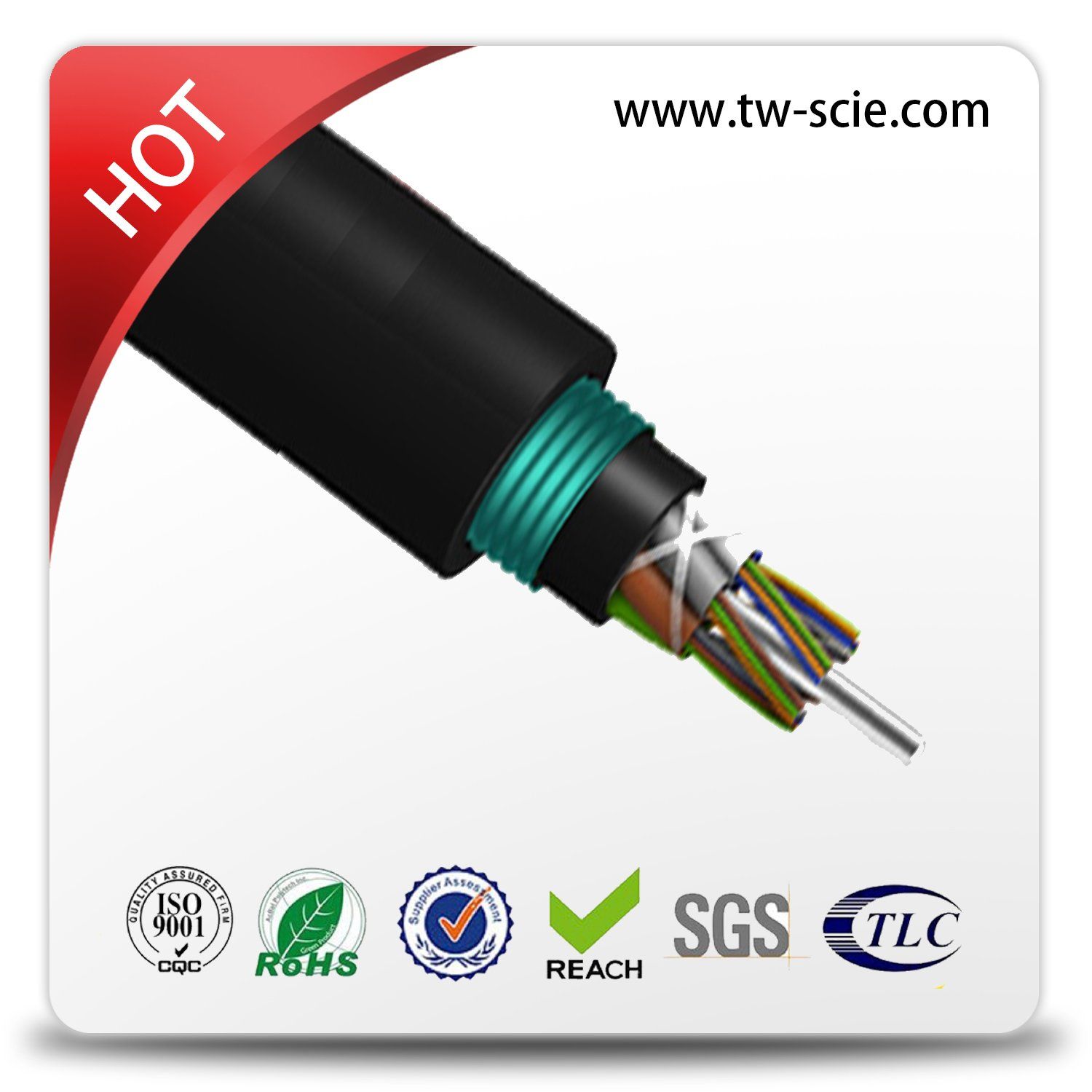

Outdoor Fiber Cable GYTY53 Layer-stranded Single Armored and Double sheathed Optical Cable
Application:
- Adopted to Outdoor distribution.
- Suitable for aerial duct and buried method
- Long distance and local area network communication
Feature
- Low dispersion and attenuation
- Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
- Double-jacket structure make cable have nice properties of moisture resistance and crush resistance
- With small cable diameter, light cable weight, easily to lay
- Operating Temperature : -40 ~ +60 C
Characteristics
- Steel wire strength.filler protect tube fiber.steel tape armord.
- Good ultra violet radiation resistant property.
- Double sheath .Good moisture-resistance
Technical Parameters:
Cable Count | Out sheath
Diameter | Weight | Minimum allowable Tensile Strength
(N) | minimum allowable Crush Load
(N/100mm) | Minimum Bending Radius
(MM) | Storage
temperature |
(MM) | (KG) | short term | long term | short term | long term | short term | long term | (°C) |
24 | 12.0 | 155.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
36 | 12.0 | 155.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
42 | 12.0 | 155.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
48 | 13.0 | 155.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
60 | 13.0 | 185.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
72 | 13.0 | 215.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 96 | 14.5 | 215.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 144 | 18.3 | 275.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
Optical Characteristics: |
Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
A1b:62.5/125 |
Singlemode | G.652(A,B,C) | B1.1:Conventional fiber |
G.652D | B2: Zero dispersion shifted |
G.655 | B1.2 :Cut-off wavelength shifted |
G.657(A1,A2 ,B3) | B4: Main technical data for positive
dispersion shifted single-mode fiber |
