Outdoor High Voltage Vacuum Circuit Breaker

Name: Outdoor High Voltage Vacuum Circuit Breaker
Brand: all-electronics-online.com
SKU: 816267875
Availability: InStock
Rating: 4.9 (54 reviews)

Price:	US $ 800-2000/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZW32Y-12
Rated Frequency:	50Hz
Rated Voltage:	12kv
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Structure:	MCCB
Poles Number:	1
Certification:	ISO9001-2000

Product Description

Product description

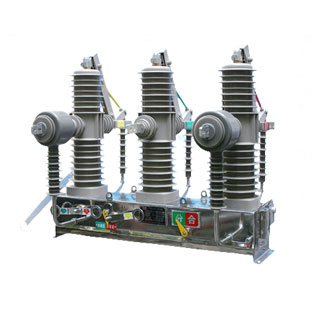

Name:ZW32-12(G) Series Outdoor High Voltage Vacuum Circuit Breaker
Material:the arc extinguish chamber is made of silicone rubber, the reactor is cross-core type, the material of the insulation tube is of outdoor eopxy resin
Advantage:1. small volume, well sealed
2. the improvement of tube and reduction of phase spacing
3. the locating collar of arc extinguish chamber: special silicone rubber for suppresion, high elastic and insulation performance, which performs the buffer function of heat-expansion, cold-contraction and also improves the insulation performance of arc extinguish chamber and insulation tube, and its easy installation makes it out-of-the-box.
Application:suitable for the breaking,and making on-load current, overload current and short-circuit current of city and countryside distribution system.

rated voltage	12kv
Rated frequency	50HZ
rated current	630A
rated short-circuit breaking current	20KA
rated frequency	50Hz
mechanical life	10000times
rated operating sequence	0-0.3s-CO-180s-CO
rated short-circuit closed current	50kA
rated peak withstand current	50KA
rated short time withstand current	20kA

rated short-circuit breaking current breaking times	30times
Power frequency withstand voltage(1min):wet and dry, to earth/fracture	34/42/48
Lightning impulse withstand voltage(peak value)interface,to earth/facture	75/85KV

Our company
SHANGHAI POWERY INDUSTRIES CO., LTD. ( SPI ) corporate group has been dealing with the interfaces in the flow of electricity ever since it was founded back in 2011. SPI's three groups - Pole Line Hardware( Tsingtao, China ),High Voltage Line Protection(Lishui, China ), Distribution Transformers( Shinseong, Korea ) - offer a unique set of brands and products. As a specialist in energy transmission and distribution, we offer our customers and business partners a range of sophisticated, future-ready products: For all voltage ranges and wherever reliable, long-lasting systems are needed for powerful energy grids. We are already well-established in all key global markets and are continuing to strengthen our brand on a worldwide scale.SPI has identified key factors that will be instrumental to its sustainabilit

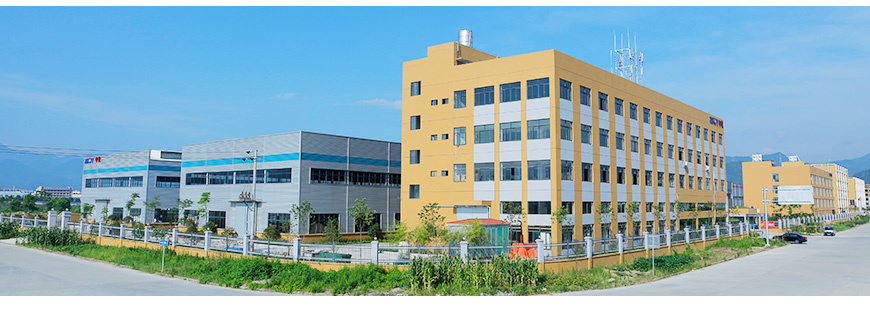

Shanghai Powery Industries Co., Ltd. Located in Shanghai China, our factory located in the beautiful seaside city--Qingdao, covering more than 10000sqm, with the workshop covering an area of 5000sqm, is a advanced management company, which is about 15 minutes' drive away from the Qingdao airport and about half-hour's drive away from the port.

We are engaged in the design, manufacture and marketing services of rigging, vessel and container fittings, electric power fittings, and high and low voltage transmission and distribution line fittings. We have been equipped all kinds of forging machines, casting machines, punching machines, lathes and drilling machines. "Quality and Service" is our top belief. Our products have been exported to Asia, America and Africa for many years. Most of our friends and customers are satisfied with our quality and services, on the basis of which, long-term friendships have been established.

Being ISO9001: 2008 certified and with permits for all products, we produce all products according to relative International Standards and customers' requirements.

You and your esteemed company are welcomed to visit us. Our best services, famous Qingdao beach sightseeing and delicious seafood are waiting for your presence.
