| Prod Model: |
GYTS Lszh Fiber Optic Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
GYTS LSZH Fiber Optic Cable |
| Fiber Count: |
2-288 Core Lzsh Fiber Optic Cable |
| Brand Name Of Fiber: |
Corning ,Yofc,as Your Requiremen |
| Loose Tube Material: |
PBT |
| Loose Tube Filling Material: |
Jelly |
| Color Of Loose Tube: |
Blue, Orange , Green , Brown etc |
| Central Strength Member: |
Steel Wire or FRP |
| Single Armour Material: |
Corrugated Steel Tape |
| Core Moisture Protection Methodology: |
Water Blocking Tape or Filling Compound |
| Installation Style: |
Duct,Aerial |
| Application: |
Communication |
| Certification: |
Reach, Tlc etc. |
| Type: |
Single-Mode or Multi-Mode Fiber |
| Connection Structure: |
Lszh Fiber Optic Cable |
| Allowed Lateral Pressure: |
Short Term 1000n; Long Term 300n |
| Allowed Tensile Strength: |
Short Term 1500n; Long Term 600n |
| Core: |
2-288 Core Lszh Fiber Optic Cable |
| Brand: |
Tw-Scie or OEM |
| Sheath Material: |
MDPE / HDPE / Lszh PE |
Product Description

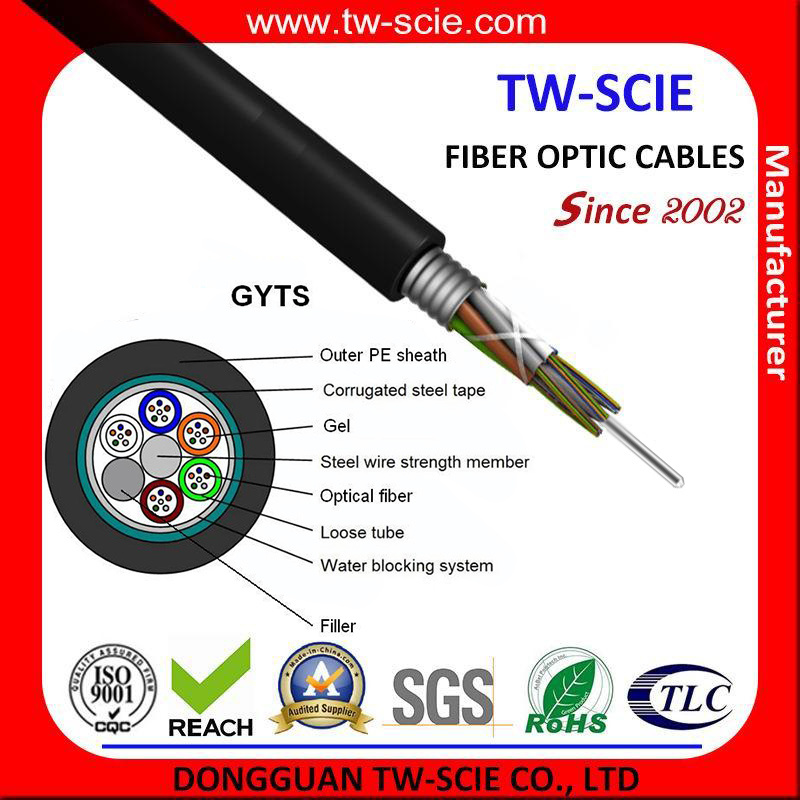

GYTS Outdoor Lszh Fiber Optic Cable Details:
Product Description
This GYTS Outdoor Lszh Fiber Optic Cable has been designed for long haul / backbone application. Our stranded loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber. GYTS type Outdoor Lszh Fiber Optic Cables are designed for easy and economical installation.
GYTS Outdoor Lszh Fiber Optic Cable Features & Application:
Excellent optical, mechanical & environmental performance
High strength-to-weight ratio
High tensile strength
High crush strength
Corrosion resistance
Very light weight
Very flexible bending radius
Long haul / backbone application
GYTS Outdoor Lszh Fiber Optic Cable Technical data:
Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min. Bending radius(mm) | Tension (N) | Crash loading (N/100mm) |
| Static | Dynamic | Short term | Long term | Short term | Long term |
| 2-30 | 9.8 | 95 | 10 times O. D. | 20 times O. D. | 1500 | 600 | 1000 | 300 |
| 32-36 | 10.3 | 115 |
| 38-60 | 10.7 | 115 |
| 62-72 | 11.3 | 140 |
| 74-96 | 12.9 | 175 |
| 98-120 | 14.4 | 210 |
| 122-144 | 15.8 | 245 |
| 146-216 | 16.3 | 260 |
| 218-240 | 19.5 | 345 |
| 242-288 | 21.7 | 415
|
GYTS Outdoor Lszh Fiber Optic Cable Packaging Detail:
GYTS Outdoor 2-288 Core Loose Tube Optic Fiber Cable package are wooden drum. Outdoor 2-288 Core Optical Fiber Cable's wooden dimension is 100cm*75cm*75cm, 0.57CBM
Outdoor cable's delivery length according to 2-288 Core Optical Fiber Cable cores. Also accept custom cabledrum from customers. welcome to contact us!
