Outdoor Optical Fiber Cable Factory

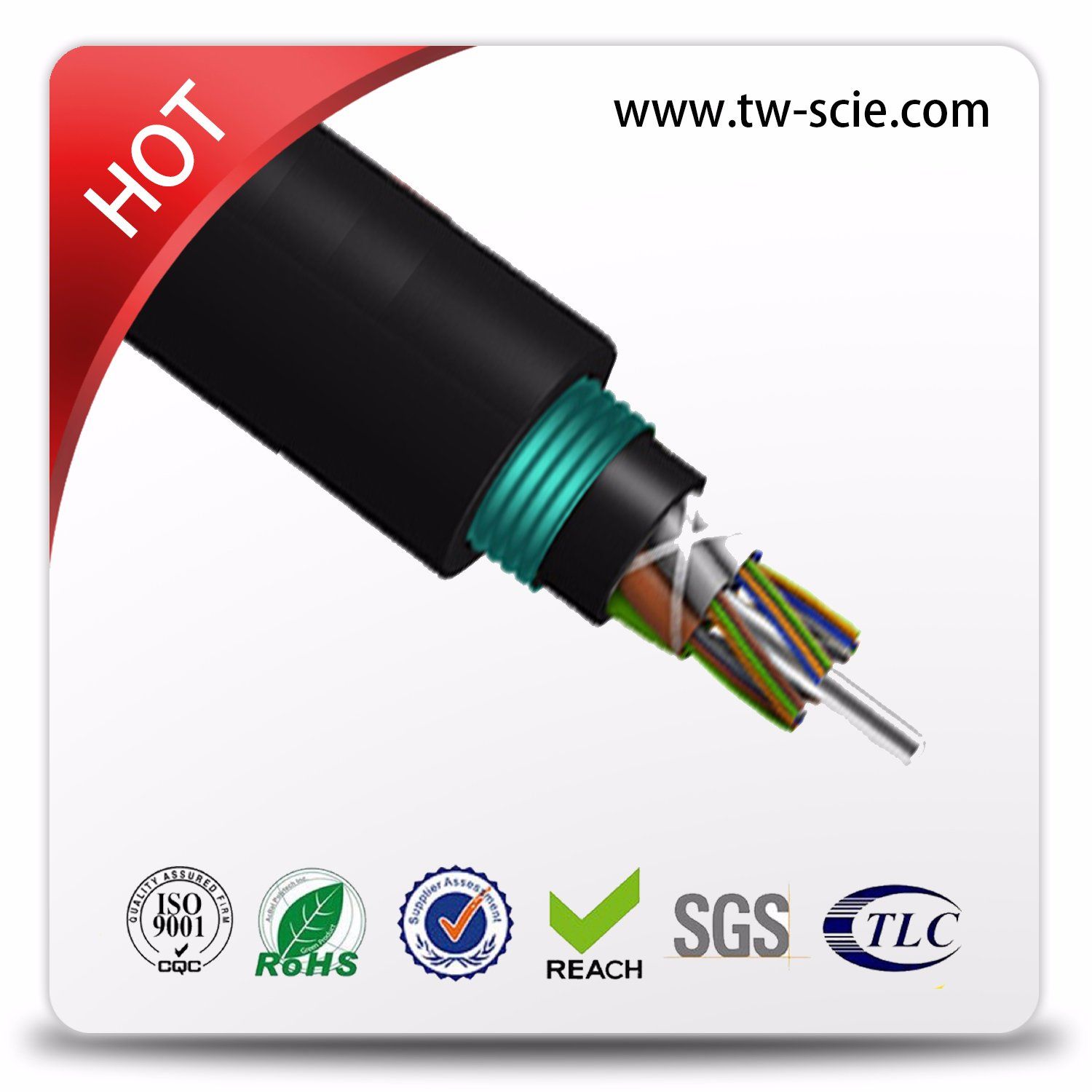

Prod Model:	GYTY53 Outdoor Optical Fiber Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outer Sheath Color:	Black
Outer Sheath Material:	PE
Filler:	Filling Compound
Central Stranding Member:	Steel Wire or FRP
Waterblocking Material:	Water Blocking Tape or Filling Compound
Operation Temperature:	-40degree~ +60degree
Single Armour Material:	Corrugated Steel Tape
Fiber Account:	2-288 Core
Brand Name Of Fiber:	Corning, Yofc...as Your Requiremen
Loose Tube Material:	PBT with Jerry
Application:	Communication
Type:	Single-mode Fiber
Certification:	Reach
Connection Structure:	Sz Straned
Sheath Material:	PE

Product Description

Application:
These corrugated steel tape and aluminum tape armored and double sheath cables are suitable for installation in harsh environments where mechanical impact on the cable is to be expected. E. G. Direct buried opplication. They are also suitable for installation in ducts where the rodent resistance is to be expected or the moisture resistance is expected.

Features:
1. Up to 288 fibers.
2. The loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube. Which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
3. Corrugated steel tape armored and double PE sheath providing excellent crush resistance and rodent resistance.
4. Metal strength member provides excellent strain performance.

Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min.Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
			Static	Dynamic	Short term	Long term	Short term	Long term
2-24	13.3	210	12.5 times O.D.	25 times O.D.	3000	1000	3000	1000
26-36	13.6	220
38-60	14.1	225
62-72	14.6	255
74-96	16.2	305
98-120	17.7	350
122-144	19.1	395
146-216	19.6	420
218-240	22.8	530
242-288	25	620


Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.

Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate

As professioanl manufacturer on optical fibre cables, we can not only offer you optical fibre cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.

Contact with me for this Outdoor Optical Fiber Cable.
