| Prod Model: |
GYTA 48 Core Fiber Optic Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
GYTA 48 Core Fiber Optic Cable |
| Fiber Count: |
48 Core Fiber Optic Cable |
| Brand Name Of Fiber: |
Corning ,Yofc,Draka, Fujikura...as Your Requiremen |
| Loose Tube Material: |
PBT |
| Loose Tube Filling Material: |
Jerry |
| Color Of Loose Tube: |
Blue,Orange,Green , Brown,Red etc |
| Central Strength Member: |
Steel Wire or FRP |
| Single Armour Material: |
Corrugated Aluminium Tape |
| Core Moisture Protection Methodology: |
Water Blocking Tape or Filling Compound |
| Installation Style: |
Duct,Aerial |
| Application: |
48 Core Fiber Optic Cable |
| Certification: |
Reach, Tlc etc. |
| Type: |
Single-Mode or Multi-Mode Fiber |
| Connection Structure: |
48 Core Fiber Optic Cable |
| Allowed Lateral Pressure: |
Short Term 1000n; Long Term 300n |
| Allowed Tensile Strength: |
Short Term 1500n; Long Term 600n |
| Core: |
48 Core Fiber Optic Cable |
| Sheath Material: |
MDPE / HDPE / LSZH PE |
Product Description

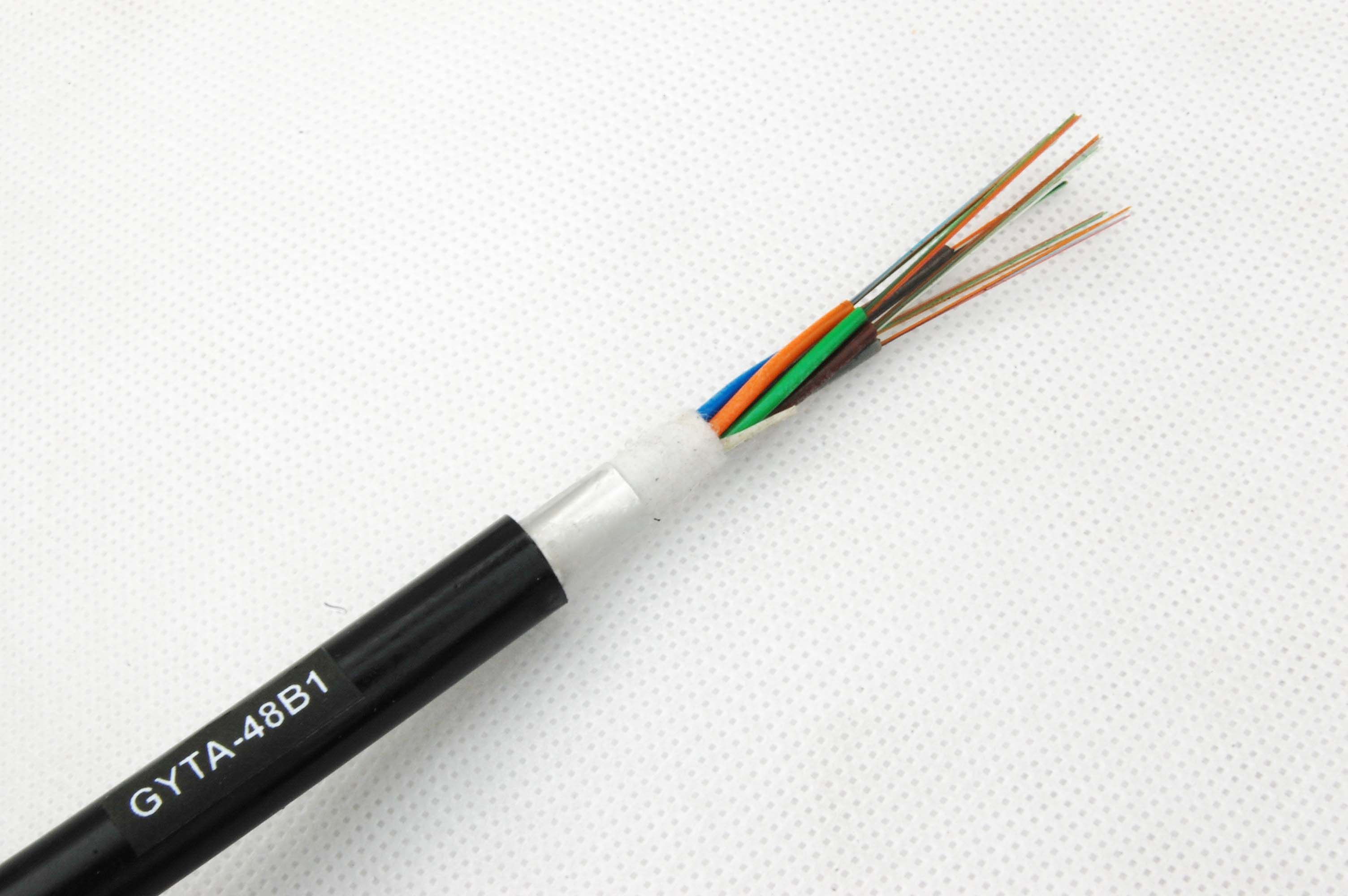

GYTA Outdoor Singlemode 48 Core Fiber Optic Cable Details:
Product Description
This GYTA Outdoor Singlemode 48 Core Fiber Optic Cable has been designed for long haul / backbone application. Our stranded loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber. Outdoor Singlemode 48 Core Fiber Optic Cable are designed for easy and economical installation.
Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.
Outdoor Singlemode 48 Core Fiber Optic Cable Features:
Excellent optical, mechanical & environmental performance
Moisture-proof & roden-proof
High strength-to-weight ratio
High tensile strength
High crush strength
Corrosion resistance
Very light weight
Very flexible bending radius
Outdoor Singlemode 48 Core Fiber Optic Cable Application:
Long haul / backbone application
Duct or Aerial intallation
Outdoor Singlemode 48 Core Fiber Optic Cable Optical Fiber Technical data:
Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min. Bending radius(mm) | Tension (N) | Crash loading (N/100mm) |
| Static | Dynamic | Short term | Long term | Short term | Long term |
| 2-30 | 9.8 | 95 | 10 times O. D. | 20 times O. D. | 1500 | 600 | 1000 | 300 |
| 32-36 | 10.3 | 115 |
| 38-60 | 10.7 | 115 |
| 62-72 | 11.3 | 140 |
| 74-96 | 12.9 | 175 |
| 98-120 | 14.4 | 210 |
| 122-144 | 15.8 | 245 |
| 146-216 | 16.3 | 260 |
| 218-240 | 19.5 | 345 |
| 242-288 | 21.7 | 415 |
Outdoor Singlemode 48 Core Fiber Optic Cable Packaging Detail:
GYTS 2-288 Core Optical Fiber Cable package are wooden drum. Outdoor 2-288 Core Optical Fiber Cable's wooden dimension is 100cm*75cm*75cm, 0.57CBM
Outdoor cable's delivery length according to 2-288 Core Optical Fiber Cable cores. Also accept custom cabledrum from customers.
Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fibre cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.
Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate
As professioanl manufacturer on optical fibre cables, we can not only offer you optical fibre cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.
Contact with me for this GYTA Outdoor Singlemode 48 Core Fiber Optic Cable.
