Outdoor Singlemode Simplex Fiber Optical Cable

Name: Outdoor Singlemode Simplex Fiber Optical Cable
Brand: all-electronics-online.com
SKU: 831138165
Availability: InStock
Rating: 4.8 (98 reviews)

Price:	US $ 0.5-5/Meter
Min Order:	100/Meter
Pay Type:	T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FOC-12C-PT
Color:	Blue, Yellow, White
Short Term:	1500n
Long Term:	600n
Storage Temp:	-40~60
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001

Product Description

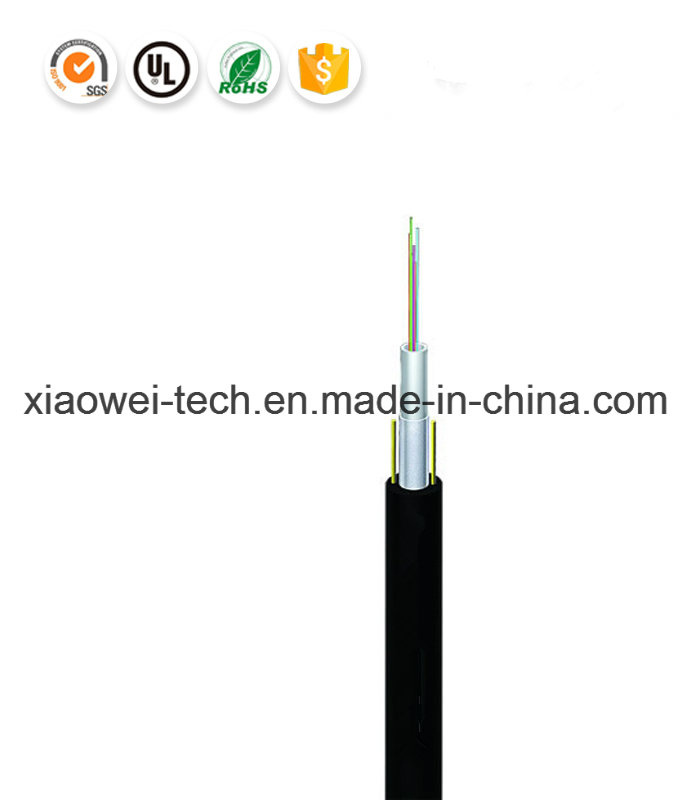

Outdoor Singlemode Simplex Fiber Optical Cable

Model: IFOC-2C-PT
General: Low dispersion and attenuation, proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties. Double-jacket structure make cable have nice properties of moisture resistance and crush resistance.

Features:

To fill the single mode or singlemode fibers into the PBT loose tube made of high modulus polyester.

The inside of the tube is filled with water-proof compounds.

The outside of loose tube is longitudinally wrapped with plastic coated steel tapes.

Between the steel tape and the loose tube, water-proof material is filled to ensure the compactness and the water resistence of the cable.

Two parallel steel wires are placed at the two sides of the steel tape. The steel wires are all inside the (PE) outer jacket.

Technical parameters:

Cable count	Outer sheealth diameter (mm)	Maximum Tensile Load (N)		Minimum Crush Load (N/100mm)		Minimum Bending Radius (mm)		Storage Temp. (^oC)
Cable count	Outer sheealth diameter (mm)	Short term	Long term	Short term	Long term	Short term	Long term	Storage Temp. (^oC)
12	7.0 (±0.5)	1500	600	1000	300	20D	10D	-40 + 60

Fiber performance (ITU-G.652):

FIBER PERFORMANCE (ITU-G.652)	Item	Specifications
	Mode field diameter(μm)	1310 nm 9.2±0.4
	Mode field diameter(μm)	1550nm 10.5±0.4
	Coating diameter(μm)	245±7
	Coating non-circularity (%)	<6.0
	Mode field /cladding concentricity error (μm)	≤0.6
	Cladding diameter(μm)	125.0±1
	Cladding non-circularity (%)	<1.0
	Attenuation(dB/Km)	1310mm ≤0.35
		1550nm ≤0.21
		1625nm ≤0.24
	Cut-off wavelength (nm)	2m(λc) 1150~1330
	Cut-off wavelength (nm)	20m cable +2m fiber (λcc) <1260

Fiber performance (ITU-G.652) CONT'S

FIBER PERFORMANCE (ITU-G.652)	Item	Specifications
	Dispersion	Zero dispersion wavelength(m) 1300~1322
		Zero dispersion slope(ps/nm².Km) ≤0.092
		Chromatic dispersion (Ps/nm2.Km)	1285~1330nm ≤3.1
			1550nm ≤18
			1625nm ≤22
	Fiber color	Blue, orange, green, brown, slate, white, red, black, yellow, violet, pink and aqua

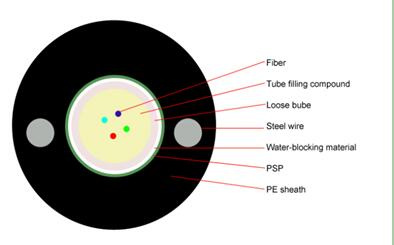

Diagrammatic drawing:

For more information, please feel free to let me know!!
