Outdoor Sm/Mm Non-Metallic Strength Member Fiber Optic Cable GYFTY
| Price: |
US $ 10/Meter |
| Trade Terms: |
FOB |
| Min Order: |
2000/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
GYFTY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outer Sheath Color: |
Black |
| Central Stranding Member: |
Steel Wire or FRP |
| Installation Style: |
Aerial |
| Waterblocking Material: |
Water Blocking Tape or Filling Compound |
| Brand Name Of Fiber: |
Corning ,Yofc,Draka,Fujikura or as Your Requiermt |
| Second Armour Material: |
Corrugated Aluminium Tape |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
Product Description
Dielectric Loose Tube Fiber Optic Cable
  |

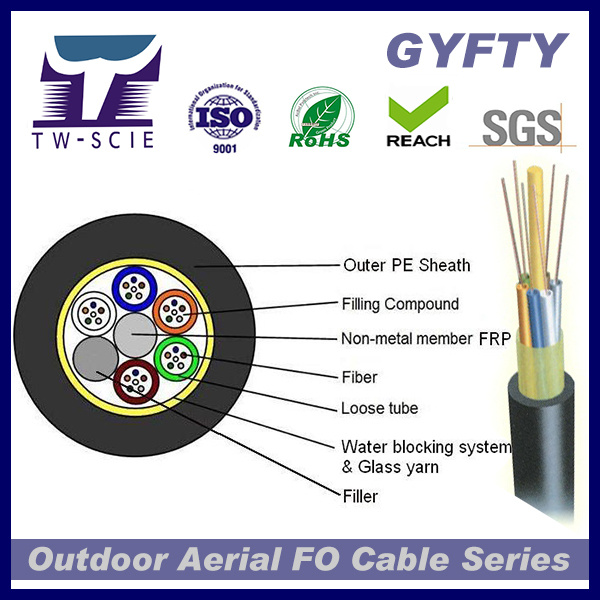

1. Cable Description
The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking tape. The cable is completed with a PE sheath. |
2.Application
The actual status of overhead power lines ,Cable for aerial or duct. |
3. Characteristics
· FRP central strength member
· Tube filling gel
· Loose tube stranded
· PE sheath outdoor cable | | |
| | | | | | | | | |
| | | | | | | | | |
| 4.Cable construction details | | | | | | | | |
| Number of fiber | 2-144core |
| Moisture Barrier | Water blocking system |
| Loose tube and Filler elements | material | PBT |
| diameter | Ф2.2mm+-0.2mm |
| Central strength member | material | FRP |
| diameter | 2.0mm+-0.2mm |
| Outer sheath | material | PE |
| diameter | 1.8±0.2mm |
| | | | | | | | | |
| 5. Fiber color | | | | | | | | |
Number of fiber per
tube 8cores | 1 | 2 | 3 | 4 | 5 | 6 | | |
| Blue | Orange | Green | Brown | Grey | White | | |
| 7 | 8 | 9 | 10 | 11 | 12 | | |
| Red | Black | Yellow | Violet | Pink | Aqua | | |
| | | | | | | | | |
| 6.Cable Mechanical characteristic | |
| core | Cable diameter | weight | |
| 2 core to 36core | 10.2±0.5mm | 85±5kg/km | |
| 38 core to 72core | 11±0.5mm | 100±5kg/km | |
| 74 core to 96core | 12±0.5mm | 130±5kg/km | |
| 98 core to 120core | 14±0.5mm | 160±5kg/km | |
| 122 core to 144core | 16±0.5mm | 204±5kg/km | |
| Min Bending Radius(mm) | Long term | 10D | |
Min Bending
Radius(mm) | Short term | 20D | |
Min allowable
Tensile Strength(N) | Long term | 600 | |
Min allowable
Tensile Strength(N) | Short term | 1500 | |
| Min. Allowable Crush Load (N/100mm) | Long term | 300 | |
| Min. Allowable Crush Load (N/100mm) | short term | 1000 | |
Operation
temperature (ºC) | -40+70 | |
Installation
temperature(ºC) | -15+60 | |
Storage temprature
(ºC) | -40+70 | |
| 7.Fiber characteristic |
| Fiber style | Unit | SM
G652 | SM
G652D | MM
50/125 | MM
62.5/125 | MM
OM3-300 | |
| condition | nm | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | |
| attenuation | dB/km | ≤ | ≤ | ≤ | ≤3.0/1.0 | ≤3.0/1.0 | |
| 0.36/0.23 | 0.34/0.22 | 3.0/1.0 | ---- | ---- | |
| Dispresion | 1550nm | Ps/(nm*km) | ---- | ≤18 | ---- | ---- | Dispresion | |
| 1625nm | Ps/(nm*km) | ---- | ≤22 | ---- | ---- | | |
| Bandwith | 850nm | MHZ.KM | ---- | ---- | >=400 | >=160 | Bandwith | |
| 1300nm | MHZ.KM | ---- | ---- | >=800 | >=500 | | |
| Zero dispersion wavelength | nm | 1300-1324 | >=1302,
≤1322 | ---- | ---- | >= 1295,
≤1320 | |
| Zero dispresion slope | nm | ≤0.092 | ≤0.091 | ---- | ---- | ---- | |
| PMD Maximum Individual Fibr | | ≤0.2 | ≤0.2 | ---- | ---- | ≤0.11 | |
| PMD Design Link Value | Ps(nm2*k
m) | ≤0.12 | ≤0.08 | ---- | ---- | ---- | |
| Fibre cutoff wavelength λc | nm | >= 1180,
≤1330 | >=1180,
≤1330 | ---- | ---- | ---- | |
Cable sutoff
wavelength λcc | nm | ≤1260 | ≤1260 | ---- | ---- | ---- | |
| MFD | 1310nm | um | 9.2+/-0.4 | 9.2+/-0.4 | ---- | ---- | ---- | |
| 1550nm | um | 10.4+/-0.8 | 10.4+/-0.8 | ---- | ---- | ---- | |
Numerical
Aperture(NA) | | ---- | ---- | 0.200+/
-0.015 | 0.275+/-0.
015 | 0.200+/-0
.015 | |
Step(mean of bidirectional
measurement) | dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
Irregularities over fiber
length and point | dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
| | | | | | | | | |
| Dicontinuity | |
Difference backscatter
coefficient | dB/km | ≤0.05 | ≤0.03 | ≤0.08 | ≤0.10 | ≤0.08 | |
| Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | | | | |
| Core dimater | um | | | 50+/-1.0 | 62.5+/-2.5 | 50+/-1.0 | |
| Cladding diameter | um | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | |
| Coating diameter | um | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | |
Coating/chaffinch
concentrically error | um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | |
| Core/cladding conentricity error | um | ≤0.6 | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 | |
| Curl(radius) | um | ≤4 | ≤4 | ---- | ---- | ---- | |
| 8.Package |
| 1.Packing material: Wooden drum | |
| 2.Packing length: standard length of cable shall be 2 km. Other cable length is also availabler | |
| if required by custome | |
| | | | | | | | | |
| 9. Cable marking and cable reel marking | |
| The cable sheath shall be marked with white characters according to customer's requirement. | | | | | | | | |
