| Prod Model: |
GYXTY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fiber Type: |
G652D |
| Fiber Material: |
Doped Silica |
| Fiber: |
Single Mode |
| Central Strength Member: |
Steel Wire |
| Tube: |
Central Loose Tube |
| Material Of Jacket: |
HDPE/LSZH Sheath/Flame Retardant Sheath/Anti-Roden |
| Bending Radius: |
Static 10*Cable-Diameter: Dynamic 20*Cable-Diamete |
| Applications: |
Outdoor Aerial and Duct |
| Certificate: |
ISO9001 Tlc RoHS Ce |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
CCC |
| Connection Structure: |
Other |
| Core: |
2-24 |
| Brand: |
Efon |
| Sheath Material: |
HDPE/LSZH Sheath/Flame Retardant Sheath/Anti-Roden |
Product Description
Product Description:

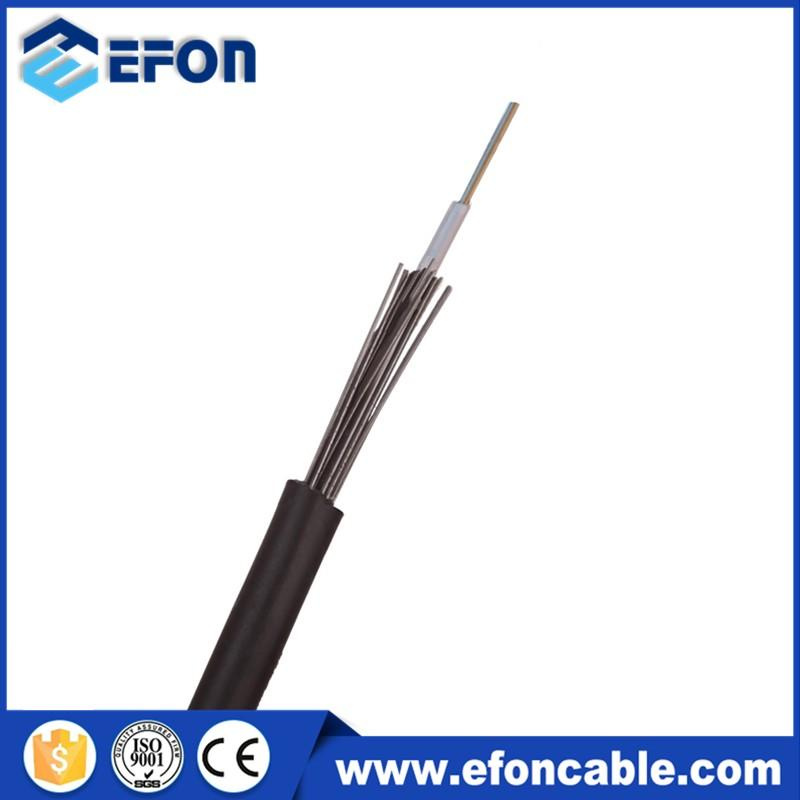

Outdoor Steel Wire 6/12 Core Singlemode Optical Fiber Cable GYXTY Steel Wire Armored Uni Tube Single Jacket cable is designed with the flexibility and versatility required
for today's most demanding installations, including aerial, Conduit and Duct. Overall steel wire armoring provide
good tensile and crush resistant.

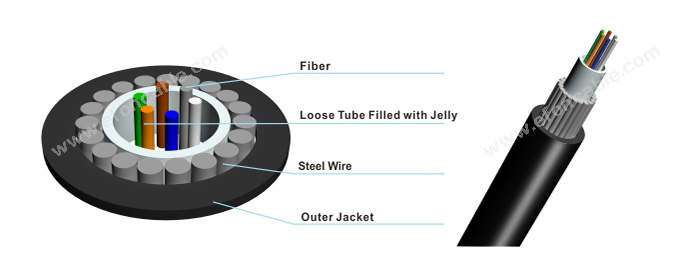

Product Construction
Fiber:
2-24 fibers
Uni-loose tube gel-filled
Strength Member:
Overall steel wire
Armor:
Steel wire armor
Outer Jacket:
Black UV and waterproof polyethylene (PE).
Features
- Uni-tube gel-filled construction for superior fiber protection.
- Steel wire armor provide high tensile and crush resistant.
- Compact, easy to install.
- UV and waterproof design.
Applications
- Interbuilding voice or data communication.
- Installed in duct, underground conduit or directly buried.
- FTTx.
Optical Characteristics
Fiber Type | G.652 | G.655 | 50/125 um | 62.5/125 um |
Attenuation (+20X) | 850 nm | | | <3.0 dB/km | <3.3 dB/km |
1300 nm | | | <1.0 dB/km | <1.0 dB/km |
1310 nm | <0.36 dB/km | <0.40 dB/km | | |
1550 nm | <0.22 dB/km | <0.23 dB/km | | |
Bandwidth | 850 nm | | | >500 MHz-km | >200 Mhz-km |
1300 nm | | | >500 MHz-km | >500 Mhz-km |
Numerical Aperture | | | 0.200±0.015 NA | 0.275±0.015 NA |
Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | | |
Structure and Technical Specifications
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance(N/100mm) |
Short Term | Long Term | Short Term | Long Term |
2~12 | 7.1 | 74 | 2000 | 1000 | 1500 | 600 |
14~24 | 7.5 | 80 | 2000 | 1000 | 1500 | 600 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
We produce and test cable comply with following standard:
Mechanical Performance |
Max Tension Performance | IEC 60794-1-2-E |
Max. Operation Tension | IEC 60794-1-2-E1 |
Crush Test | IEC 6079 -1-2-E3 |
Impact Test | IEC 60794-1-2-E4 |
Repeated Bending | IEC 60794-1-2-E6 |
Torsion Test | IEC 60794-1-2-E7 |
Cable bend | IEC 60794-1-2-E11A |
Attenuation Coefficient | ITU-T G.652 |
Structural Test | IEC-60793-1-20 |
Environmental Performance |
Temperature Cycling | IEC 60794-1-2-F1 |
Water Penetration | IEC 60794-1-2-F5B |
Filing Compound Flow | IEC 60794-1-E14 |
You May Like
Payment
For large orders, T/T , L/C, and E-credit lines are all offered.
For small orders, credit-cards are accepted.
Shipping & Delivery
We will send the products within 10 days.
We ship small batched by air, or large orders by container.
Return and Warranty:
All products have been tested before ship out
All products have 5 years warranty. If there is no man-made problem ,we will replace or repair for you freely.
We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.
We produce fiber optic cable, patch cord, pigtail, optical coupler, PLC splitter and other passive components for FTTX.

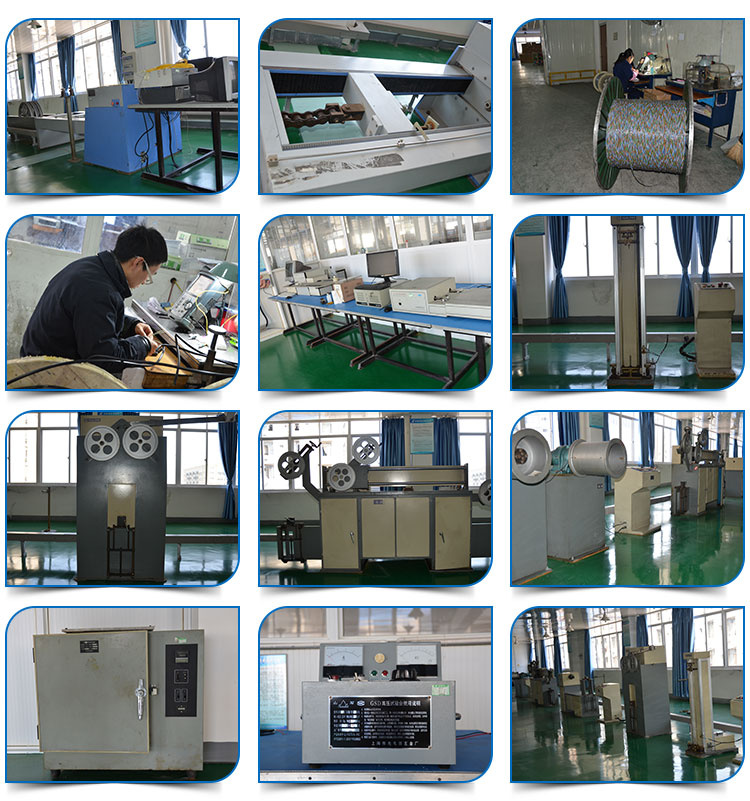

We offer products of a consistent quality. Our QC team monitors the manufacturing process and inspects all products before shipment.
