Outdoor Underground Direct Buried Optic Fiber Cables

Prod Model:	GYTA53 Direct Buried Optic Fiber Cables
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No:	GYTA53 Direct Buried Optic Fiber Cables
Fiber Count:	2-288 Core
Brand Name Of Fiber:	Corning ,Yofc,Draka, Fujikura...as Your Requiremen
Loose Tube Material:	PBT
Loose Tube Filling Material:	Jerry
Color Of Loose Tube:	Blue,Orange,Green,Brown,Grey, White,Red etc
Central Strength Member:	Steel Wire or FRP
Double Armour Material:	Corrugated Steel and Aluminium Tape
Core Moisture Protection Methodology:	Water Blocking Tape or Filling Compound
Installation Style:	Direct-Burial and Duct
Application:	Direct Buried Optic Fiber Cables
Certification:	Reach,Tlc,etc
Type:	Single-Mode or Multi-Mode Fiber
Connection Structure:	Direct Buried Optic Fiber Cables
Allowed Lateral Pressure:	Short Term 3000n; Long Term 1000n
Allowed Tensile Strength:	Short Term 3000n; Long Term 1000n
Core:	2-288 Core
Brand:	Tw-Scie or OEM
Sheath Material:	MDPE / HDPE / Lszh PE

Product Description

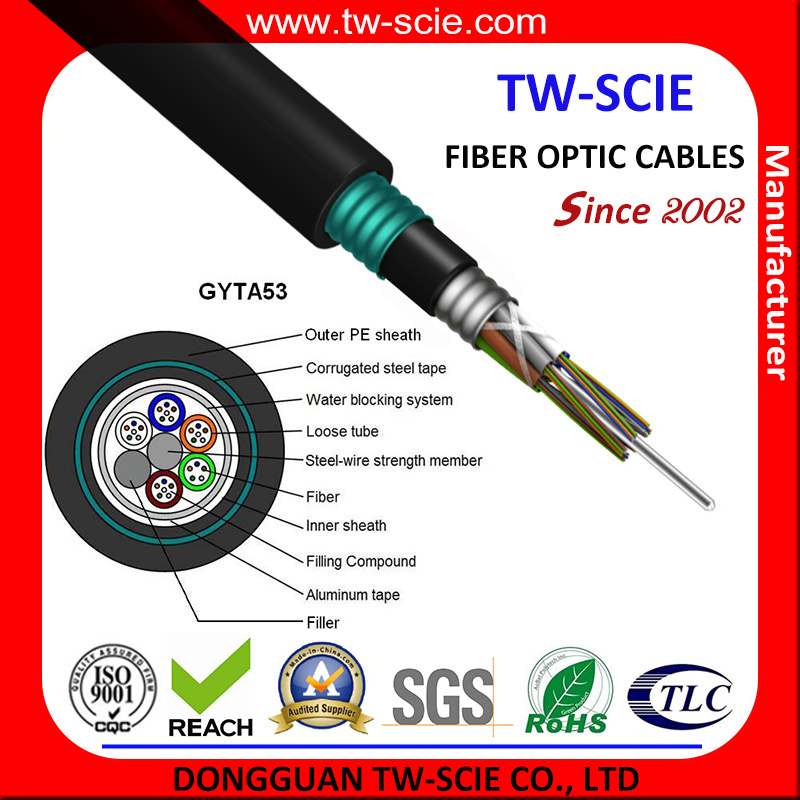

Outdoor Underground Direct Buried Optic Fiber Cables

Product Description:
This GYTA53 Outdoor Loose Tube Fiber Optic G652D Fiber Optic Cable are suitable for installation in harsh environments where mechanical impact on the cable is to be expected. E. G. Direct buried opplication. They are also suitable for installation in ducts where the rodent resistance is to be expected or the moisture resistance is expected.



Packaging & Delivery:
Packaging Details:  in fumigated wooden drum or polywooden drum
Delivery Time:  within one week


Features:
Excellent optical, mechanical & environmental performance
Moisture-proof & roden-proof
High strength-to-weight ratio
High tensile strength
High crush strength
Corrosion resistance
Very flexible  bending radius

Application:
Long haul / backbone application
Direct-Burial and duct


Optical Characteristics:

Fiber type	G.652D(9/125)
Loose tube	PBT Loose Tube
Attenuation@1310nm	≤ 0.36 dB/km
Attenuation@1550nm	≤ 0.22 dB/km
Temperature range	Transport/Operating -40~+70°C

Technical data:

Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min.Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
			Static	Dynamic	Short term	Long term	Short term	Long term
2-24	13.3	210	12.5 times O.D.	25 times O.D.	3000	1000	3000	1000
26-36	13.6	220
38-60	14.1	225
62-72	14.6	255
74-96	16.2	305
98-120	17.7	350
122-144	19.1	395
146-216	19.6	420
218-240	22.8	530
242-288	25	620

Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate

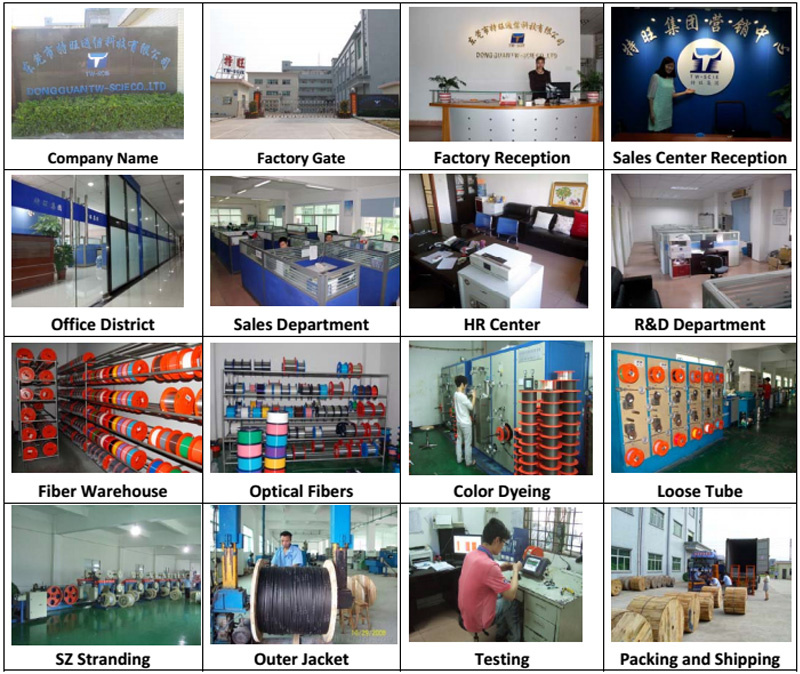

Our Company:
DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.




FAQ:

1.Are you the real manufacturer?

Yes.  We are the real manufacturer  with more than 10 years' history.



2.What is your fiber brand ?

Corning, YOFC, FiberHome, etc



3.Can you accept small order?

Of course.



4.Which kind of certification you have ?

ISO9001, SGS, UL, RoHs.



5.What is your delivery time?

Usually within 2-7 working days



6.What is your payment way?

 T/T, L/C, Western Union and Paypal.
