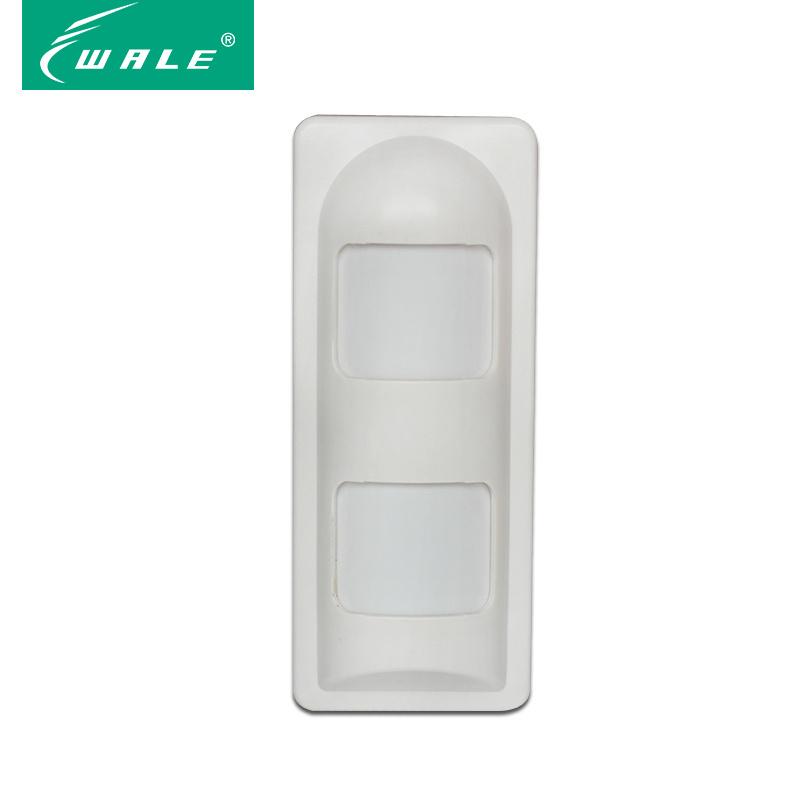

Outdoor Waterproof Microwave Pet Immunity PIR Detector
| Price: |
US $ 22-24/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
WL-838F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pet-Immune Level: |
Under 25kg |
| Dimension: |
128*64*40mm |
| Tri-Tech: |
PIR + Microwave + Energy Anlysis |
| Detecting Distance: |
9m-18m |
| Type: |
Probe |
| Installation Mode: |
Wall Mounted |
| Application: |
Home, Industry, Communication Electronic Product |
| Usage: |
Anti-Theft |
| Detection Type: |
PIR Detector |
| Material: |
ABS |
| Certification: |
Ce & RoHS |
Product Description
Features:- Alarm indicator: Red led
- Outdoor pet immunity function
- PIR, Microwave and Energy analysis Tri-tech detector
- Sensor: Dual element infrared sensor
- A full range of waterproof, moth-proof design
- Digital circuit, using microprocessor
- Bipolar pulse count adjustable
- Anti-white, anti-fluorescent function
- Full automatic temperature compensation
- Digital microprocessor controller, anti false alarm
- SMT manufacturing process, anti RFI, EMI interference
- Environment memory and C output mode
- Three sensor composite detection, fuzzy logic and the ASTC
- ABS plastic material
- The tamper function
Technical Specification | Model | WL-838F | WL-838MF |
| Model Type | Wired Tri-tech PIR detector | Wired Curtain Tri-tech PIR detector |
| Working Voltage | DC9-16V |
| Working Current | 33mA |
| Detection Distance | 12m |
| Detection Angle | 110° | 15° |
| Anti RF interference | 30V/m 10MHz-1GHz |
| Installation height | 1.7 to 2.5m(2.2m is proposed) |
| Installation mode | Wall mounted |
| Water-proof level | IP 65 |
| Anti-pet Level | 25kg |
| Alarm output | NC , 100mA/DC30V max |
| Temper output | NC , 100mA/DC30V max |
| Operating Temperature | -40ºC~ +70ºC |
| Anti-white light interference | >100000LUX |
| Relative Humidity | ≤95% (non-condensing) |
| Unit size | 138*75*46mm |
