Outdoor Waterproof Series Split Core Current Transformer for Chuangyin Current Sensor

Name: Outdoor Waterproof Series Split Core Current Transformer for Chuangyin Current Sensor
Brand: all-electronics-online.com
SKU: 798184015
Availability: InStock
Rating: 4.7 (118 reviews)

Price:	US $ 53-60/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CY-LMCK055-10-005
Accuracy:	0.5 Class
Range Rated Primary Current:	100-1200A
Secondary Current:	5A or 1A
Operating Temperature:	-35 C- 55c
Opening Dimension:	55mm
Environment:	Indoor or Outdoor
Sea Level:	0-3000m
Standards:	GB1208-2006;IEC 60044-1;Ntc 2205
Application:	Instrument
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Brand:	Chunagyin

Product Description

We're manufacturer.

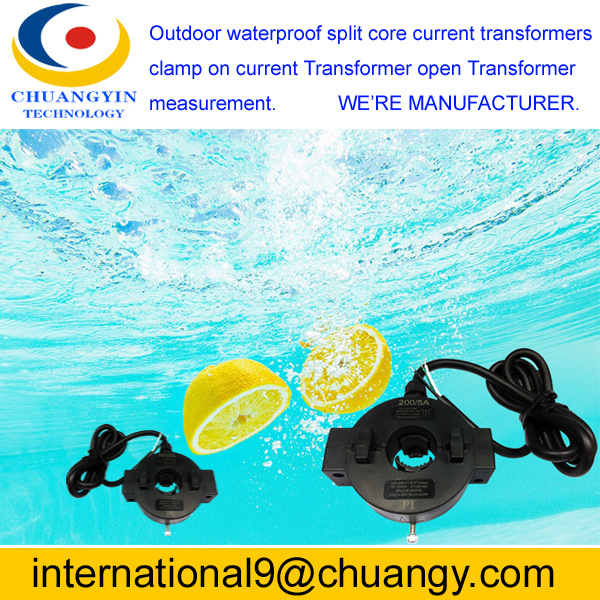

Outdoor Waterproof Split Core CT Current Transformer
Primary rated current 100~1200A

Feature:

Application:Electronic, Instrument, Position Sensor

Type:Current Transformer

Phase:Single

Operation Condition:Outdoor

Usage:Measurement

Winding Form:Single Layer & Tightly Wound Type

Insulating Medium:Common Insulating Materials

Installation:Active Type

Magnetic Circuit Structure:Single Stage Type

Voltage Transformation Principle:Capacitive Type

Accuracy:0.5%

Standards:GB1208-2006;IEC 60044-1;Ntc 2205

Safety Factor Rating:< 5

Rated Frequency:50Hz or 60Hz

Environment:Outdoors or Indoors

Rated Secondary Current:5A or 1A

Secondary Winding Power Frequency Withst:3kv/1min

Export Markets:Global

Application:

. Power quality monitoring
. Power instrument and meter
. Distributed measurement systems
. Measurement of current of power supply equipment below 10KV
. Microcomputer protection

Character :

. Use high permeability silicon steel
. Outdoor, water proof IP65, dust proof
. Secondary winding employ with high quality epoxy resin casting in plastic case which is flame retardant,anti-moisture, stable performance.
. Split core and full sealed,use sealed water proof cable as secondary leading wire.

Note:
Please browse our website and download product catalogue for detailed information.
Pls contact me for much more information below:

SHENZHEN CHUANGYIN TECHNOLOGY CO., LTD.
( CY GROUP )
Certification: KEMA, ISO9001, UL, SGS, CE.
( Your reliable partner for CT,PT (up to 72.5KV) ,Cable accessories, Split core CT, Rogowski Coil , Latching Relay, Flx-core CT )

Address: 1st Floor, Building B, Jiada R&D Building, No.5 Songpingshan Rd., Shenzhen High-Tech Zones, Nanshan, Shenzhen, China,
Post code: 518057
Tel: +86 0755-86000302/ 8600709
Fax: +86 0755-86000614
Web: www.chuangy.com
Becky Wang
Business Development Executive
Mob: +86 15889623648

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
