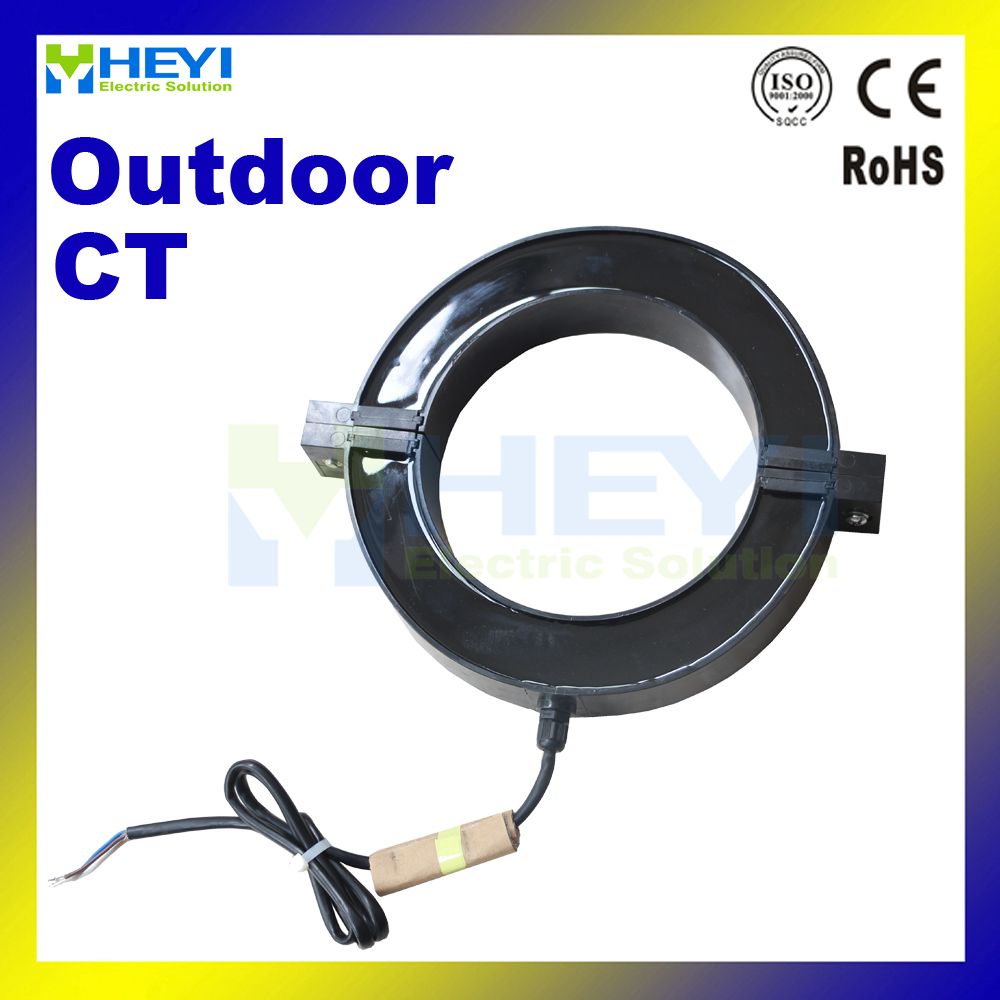

Outdoor Waterproof Series Split Core Current Transformer for Heyi Current Sensor

Outdoor Waterproof Series Split Core Current Transformer for Heyi Current Sensor
Price: US $ 1-15/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: Outdoor waterproof series
Model: Outdoor Wate Split Core Current Transformer 13mm
Is Customized: Yes
Application: Instrument
Type: Current Transformer
Phase: Single

Product Description



Application:

.Power quality monitoring

.Power instrument and meter

.Distributed measurement systems

.Measurement of current of power supplyequipment below 10KV

.Microcomputer protection

Character:

.Use high permeability silicon steel

. Outdoor , water proof IP65,dust proof

.Secondary winding employ with high qualityepoxy resin casting in plastic case which is flame retardant, anti-moisture,stable performance

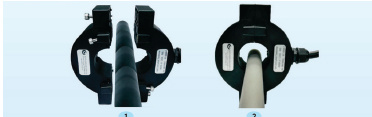

.Split core and full sealed ,use sealedwater proof cable as secondary leading wire

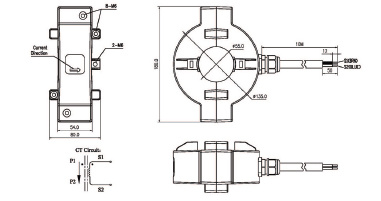

Circuit connection diagram



Technical Index:

Technical parameters



Standards

-IEC60044-1;IEC61869-2;NTC2205;GB1208-2006

Accuracy class

0.5%,1%

Range of primary rated current

100-1200A

Range of rated load

2.5VA,5VA,10VA

Range frequency

50/60Hz

Rated secondary current

5A or 1A

Secondary winding power frequency  withstand voltage

3kV , 1min

Safety Factor Rating

(FS) <5

Flame retardant ABS plastic shell inside,  jaw waterproof apron

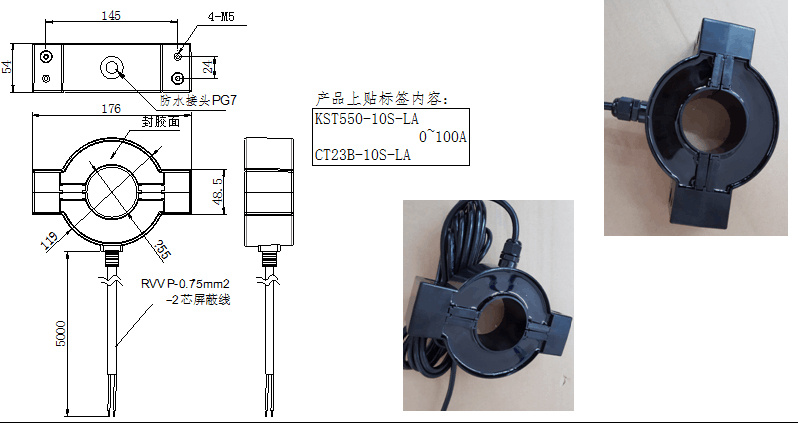

Mechanical parameters



Aperture(mm)

Ø55

Dimensions(W*D*H)(mm)

180*138*52

Weight(kg)

2

Working conditions



Operating temperature

-35oC+55oC ,not exceeding +40oC

Environment

Outdoor or indoors

The Height of above sea level

0-3000m

Conditions

No existence of severely begrimed,  erosive and radioactive gas in the air. Continuous working under the rated  current is allowed

We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on

1. Who we are

Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer

Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss

2 why choose us

We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.

3 Heyi Mission, vision values

Heyi mission is to provide reliable, accurate and customized current transformer solution

Heyi vision is leading global split core CT manufacture and energy solution provider

Values Enthusiastic by our work, we offer a quality personal and close service to our customers

Some products have been approved by CE and IEC certificates.
