Outstanding Performance Ceramic End-Effector with Good Durability

Name: Outstanding Performance Ceramic End-Effector with Good Durability
Brand: all-electronics-online.com
SKU: 727626382
Availability: InStock
Rating: 4.8 (106 reviews)

Price:	US $ 100-2000/Piece
Min Order:	2/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	N/M
Color:	White,Light Yellow
Product Name:	Ceramic End-Effector
Features:	High Temperature Resistance
Manufacturing Technology:	Optoelectronic Semiconductor
Type:	Intrinsic Semiconductor
Package:	CSP
Material:	Alumina or Zirconia
Application:	Semiconductor
Brand:	Xdl

Product Description

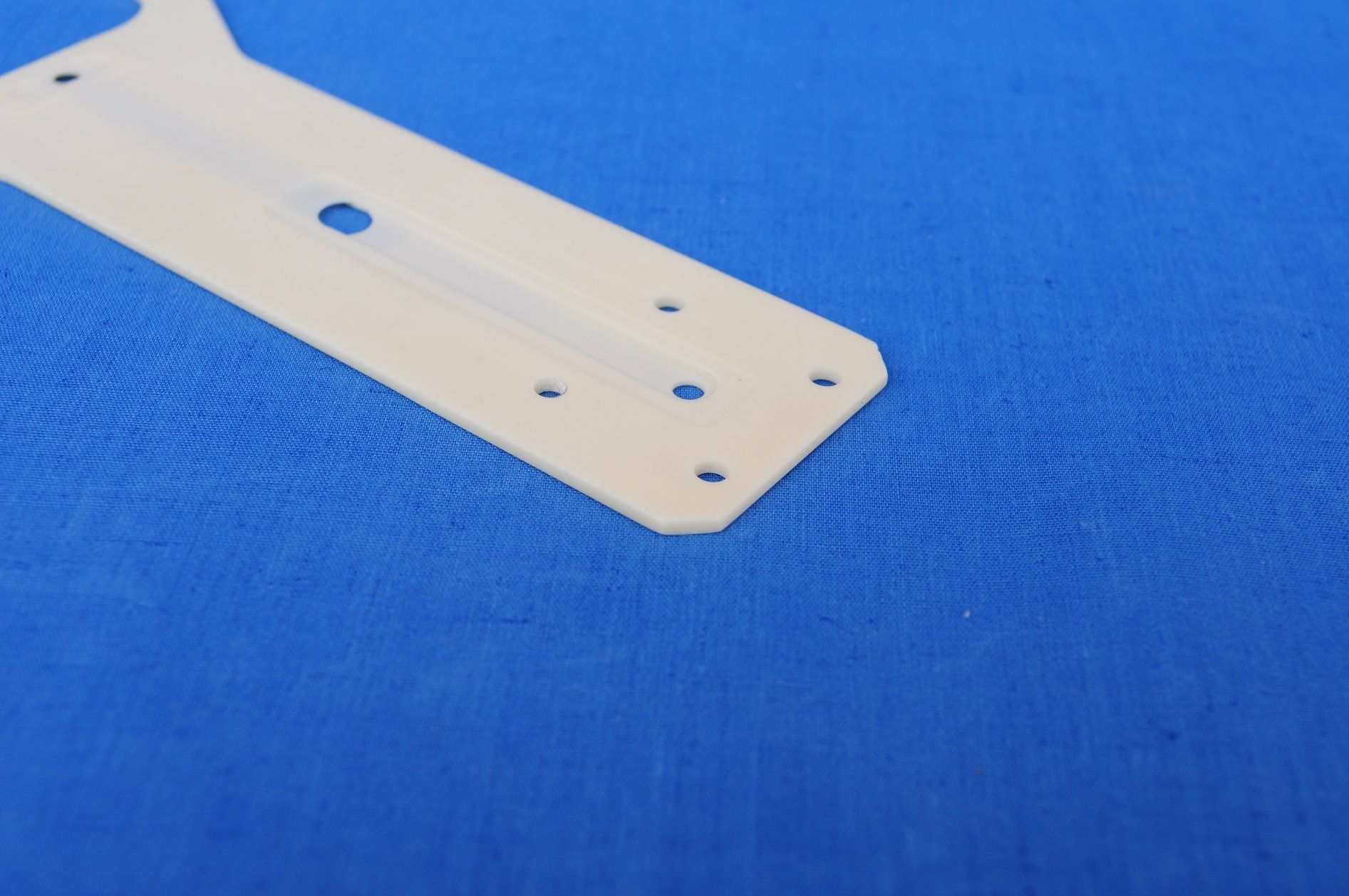

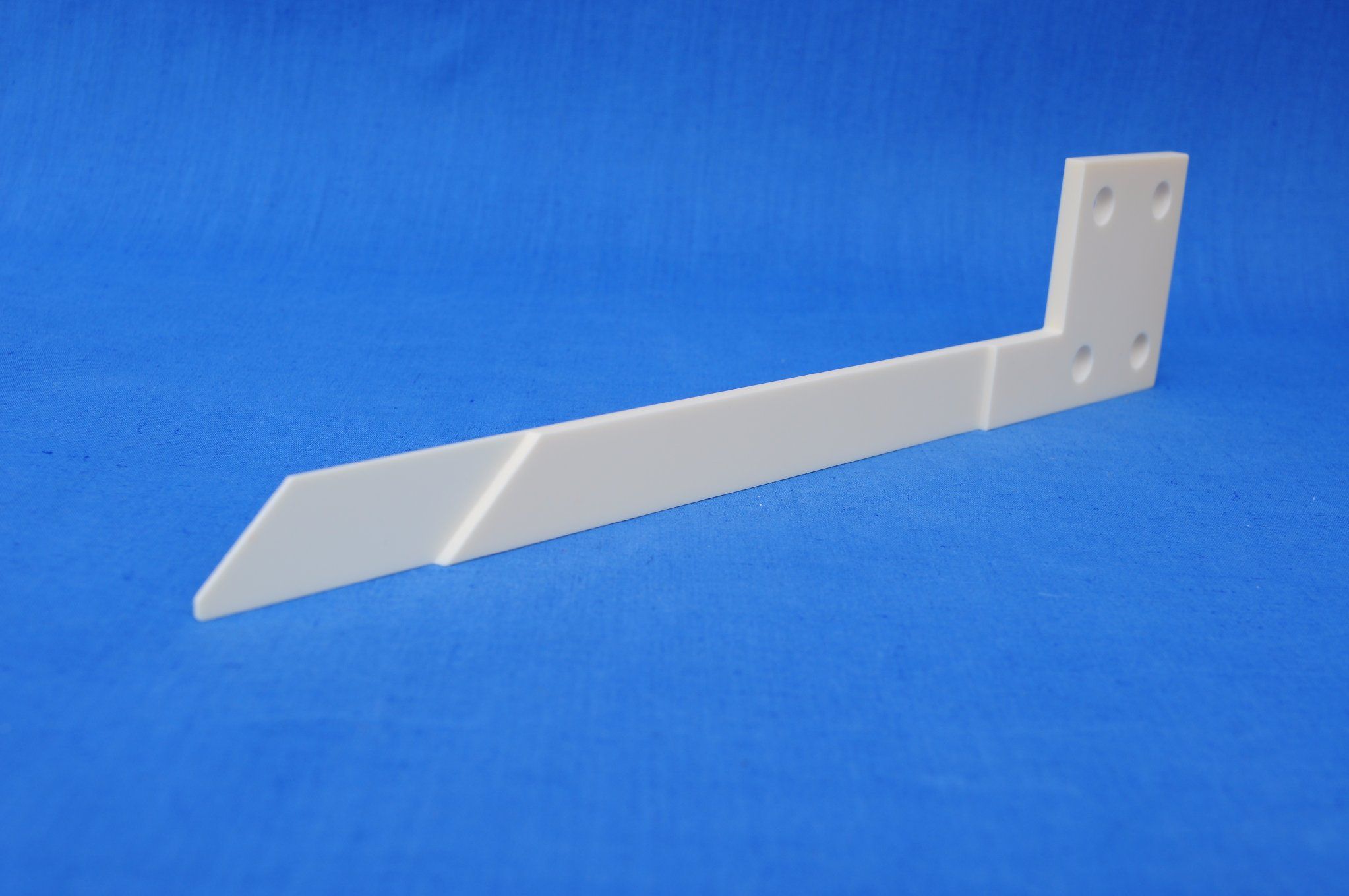

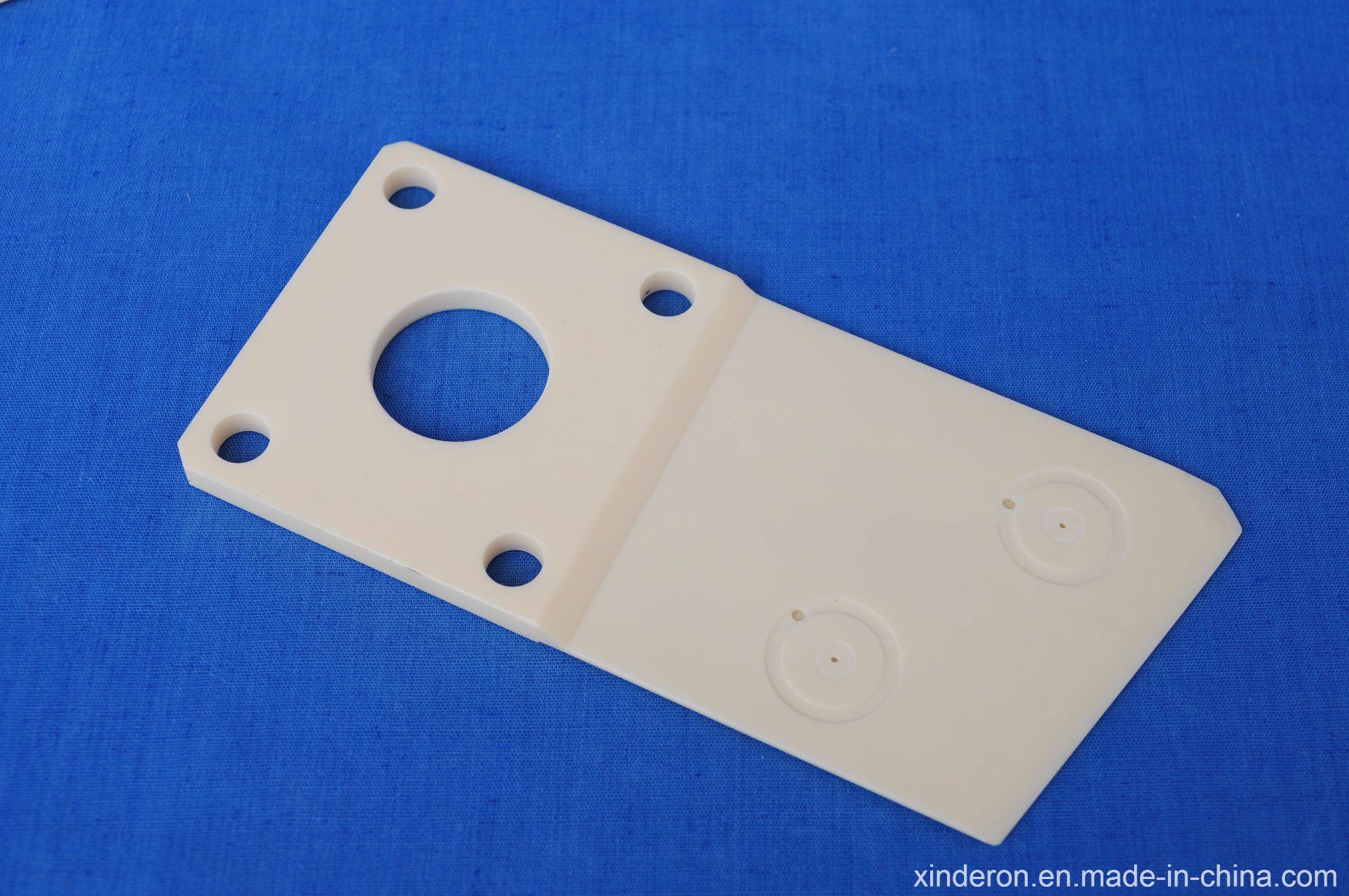

Ceramic End-effector/Ceramic Robotic Arm

Ceramic end-effectors are used to manipulate and carry silicon wafers through the whole production in the semiconductor process. It enables the handling of large-size wafers and can be designed with vacuum channels in order to hold the part.

In robotics, an end-effector is a device or toll connected to the end of a robot arm. The structure of an end effector and the nature of the programming and hardware that drives it, depends on the intended task.

A robot arm can accommodate only certain end-effector task modes without changes to the ancillary hardware and/or programming. It is not possible to directly replace a gripper with a screwdriver head, for example, and expect a favorable result. It is necessary to change the programming of the robot controller and use a different set of end-effector motors to facilitate torque rather than gripping force. Then the gripper can be replaced with a driver head.

The specification of ceramic end-effectors:

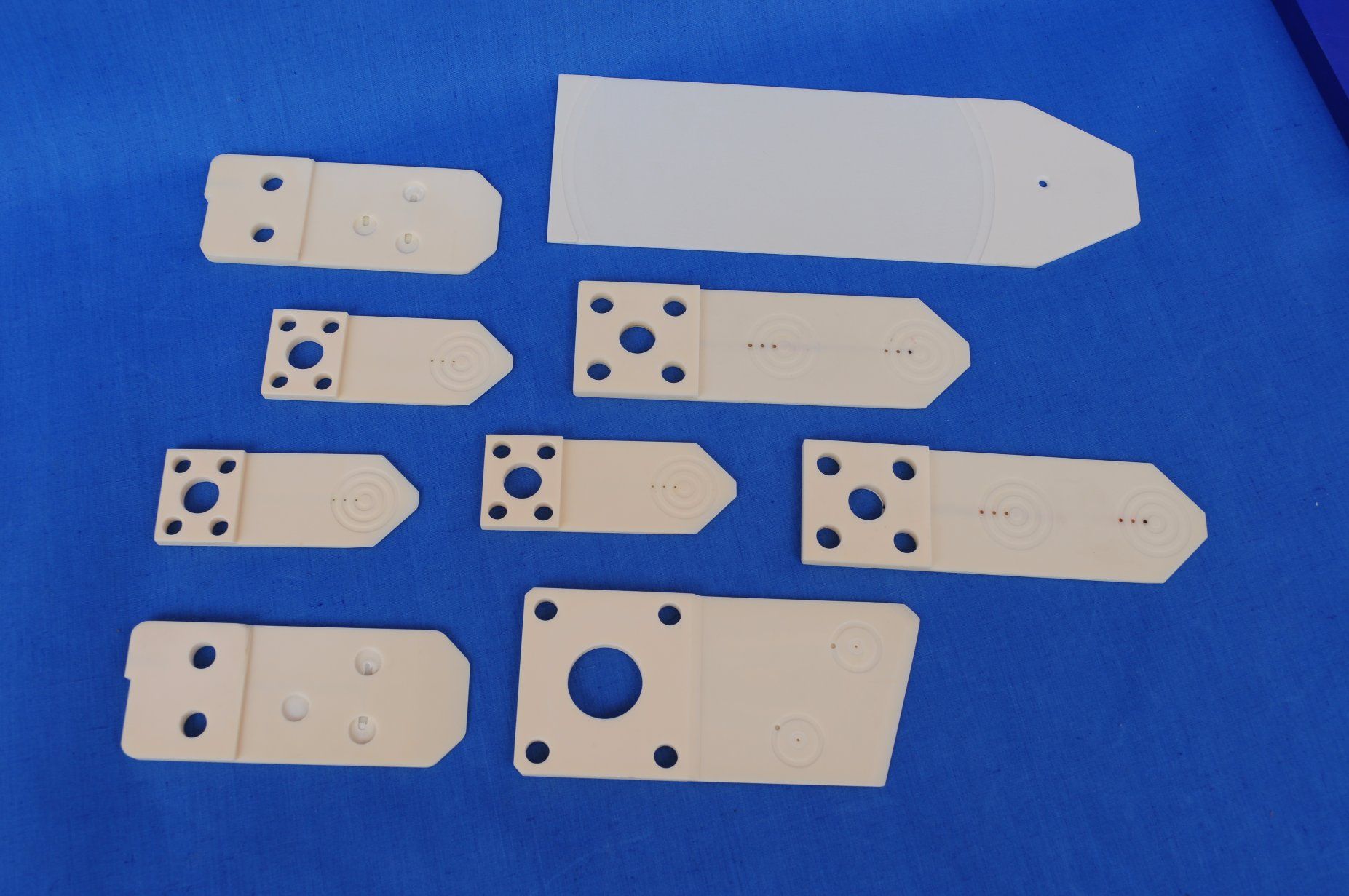

Standard paddle and fork designs
For 4", 5", 6", 8" and 12" wafers
Vacuum and non-vacuum
High temperature resistance
Chemical resistance
Durable and reliable

	Unit	95% Al2O3	99% Al2O3	ZrO2	GP-Si3N4
Color	-	white	ivory	white	gray
Density	g/cm³	3.70	3.90	6.04	3.31
Water Absorption	%	0	0	0	0
Young's Modulus	Gpa	280	350	205	295
Vickers Hardness	Gpa	14	20	12	18-20
Flexural Strength ( at R.T. )	Mpa	280	300	900	650
Compressive Strength ( at R.T. )	Mpa	2000	2500	2200	2200
Thermal Conductivity ( at R.T. )	W/(m.K)	18-25	30	2.2	25
Thermal Shock Resistance	ΔT(°C)	220	180-200	280-350	450-650
Max. Working Temperature ( at R.T. )	°C	1500	1700	800	1200
Volume Resistivity ( at R.T. )	Ω.cm	>10^15	>10^14	>10^12	>10^14
Dielectric Constant (1 MHz at R.T. )	-	9.50	9.80	26	8.20
Dielectric Strength	kV/mm	16	22	-	16

Jiangsu Xindelong Precision Ceramics Co., Ltd. is located in Yixing Economic Development Zone, which is famous for China all over the world, the company name of Yixing Tigar Precision Ceramic Co., Ltd is our subsidiary.

Xindelong Ceramics has dedicated in manufacturing and processing precision parts/components with a wide range of products and services covering high precision ceramics and high performance ceramics, such as machinery ceramic parts/components, textile ceramic parts, electronic ceramics parts, engineered ceramic components, pump components, valve components, flow components, wear components, corrosion resistant ceramic parts, high temperature ceramic parts, welding ceramic parts, ceramic parts for semiconductor etc. The raw materials is including alumina, zirconia, silicon carbide, silicon nitride, mullite, cordierite and steatite, PBN/ALN, BeO and graphite and so on.

Xindelong Ceramics has complete facilities, such as CNC machines, internal grinding machines, cylindrical grinding machines, centerless grinding machines, double surfacce lapping machines, vibration polishing machines, honing machines, and electron microscope, three-coordinates measuring machine, hardness tester, surface roughness instrument-to enable us to manufacture technical ceramic components to the highest specifications.

Our current customers comes from USA, Canada, Germany, England, Italy, Spain, Denmark, Mexico, Brazil, Argentina, Korea, Singapore, Thailand, Malaysia and so on.

Our company always insists on quality first, the supremacy of the purposes of the users. We'd like to cooperate sincerely with enterprises at home and abroad to create a win-win future.
