Yueqing Lovadon Electric Co., Ltd. >> Over Current Protection with Residual Current Circuit Breaker RCCB

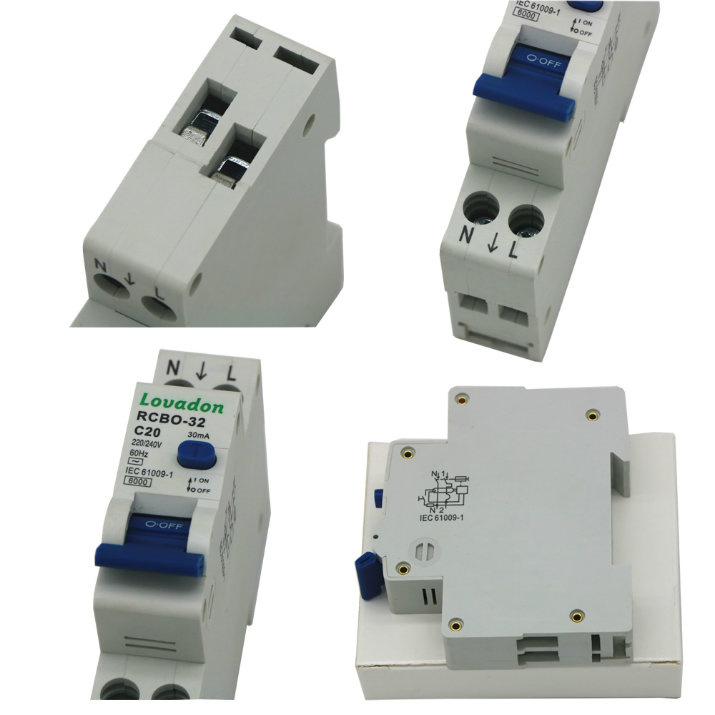

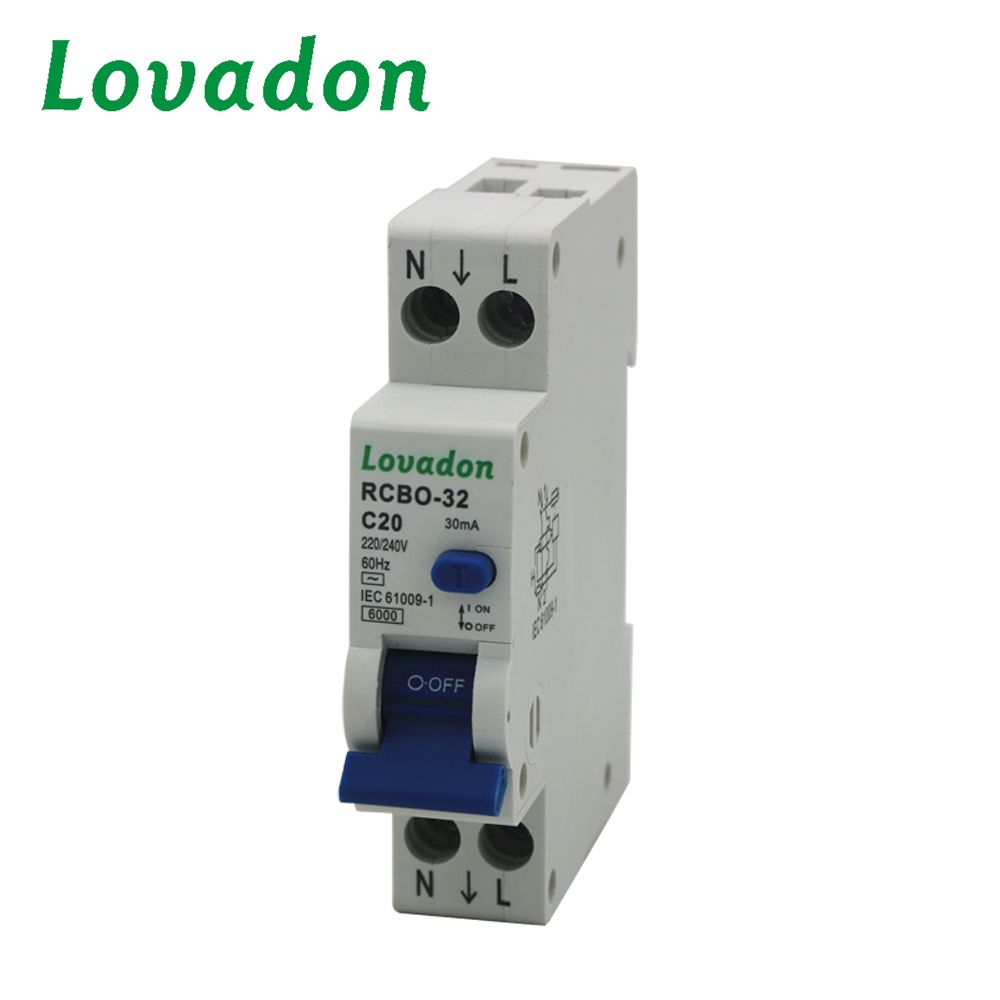

Over Current Protection with Residual Current Circuit Breaker RCCB

Over Current Protection with Residual Current Circuit Breaker RCCB
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: RCBO-32
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Air
Certification: CE
Breaking Capacity: 4.5 Ka 6ka 10ka
Operation: Electrical Type / Magnetic Type
Installation: DIN Type
Structure: RCCB
Poles Number: 2p,4p

Product Description

1.Item name: RCBO-32
2.Standard:GB16917.1,IEC61009
3.Function:Leakage protection
4.Rated current: 6A/10A/16A/25A/32A
5.Endurance:>6000times

1.Specifications
ypeRCBO-32 / RCBO-32N
StandardGB16917.1 IEC61009
Number of poles1P+N
Rated current(In)6 10 16 20 25 32A
Rated operating current(In)10 30 100 300mA
Rated current(In)AC240V
Residual operating current scope0.5 I n-In
Residual current off-time<0.3s
TypeAAC
Ultimate short-circuit breaking capacity(Inc)6000A
Endurance>6000 times
Terminal protectionIP20
