Overhead 7 Steel Strand Wire Self Supporting Optical Fiber Cable

Prod Model:	GYXTC8Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	G652D, Om1 Om2 Om3 Om4 9/125 50/125 62.5/125
Fiber Count:	2-24
Tube:	Central Loose Tube
Armored:	No Armored
Material Of Jacket:	PE/Lszh /Flame Retardant PE
Diameter Of Self Support Member:	0.9mm*7;1.0mm*7;1.2mm*7;1.5mm*7
Bend Radius:	Static 10*Cable-D: Dynamic 20*Cable-D
Max Tension:	1200n
Applications:	Hanging on Poles.
Self-Supporting:	Steel Strand Wire
Type:	Single-mode Fiber
Application:	Communication
Certification:	CCC
Brand:	Efon
Core:	2-24
Sheath Material:	Lszh/PE Sheath/Flame Retardant Sheath/Anti-Rodent
Connection Structure:	Other

Product Description

 Description

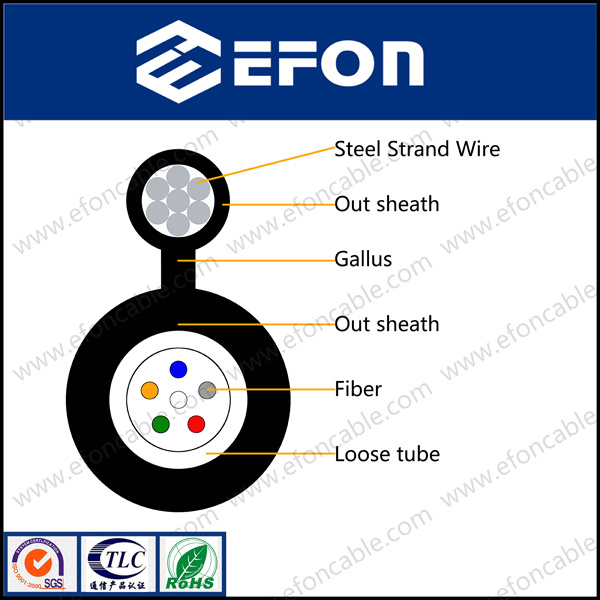

The loose tube are made of high modulus plastics(PBT), which are filled with water resistant gel. Outer sheath is made of UV resistance PE jacket. Figure-8 self-supporting structure provide high tensile strength and enables easy and cost saving aerial installations.

Feature

1.Self-supporting member could be 7*0.5, 7*0.67, 7*0.9, 7*1.0, 7*1.2, mm
2.Excellet mechanical and environmental performance
3.Compact size and light weight, good choice for last mile FTTX project.

Application:

1.Adopted to Outdoor distribution.
2.Suitable for aerial install.
3.Local area network communication.

Mechanical Performance :
Max Tension Performance  : IEC 60794–1-2-E
Max. Operation Tension     : IEC 60794–1-2-E1
Crush Test                        : IEC 6079 –1-2-E3
Impact Test                      : IEC 60794–1-2-E4
Repeated Bending              : IEC 60794–1-2-E6
Torsion Test                     : IEC 60794–1-2-E7
Cable bend                        : IEC 60794–1-2-E11A
Attenuation Coefficient       : ITU-T G.652
Structural Test                  : IEC-60793-1-20
Environmental Performance
Temperature Cycling         : IEC 60794–1-2-F1
Water Penetration             : IEC 60794–1–2-F5B
Filing Compound Flow      : IEC 60794-1-E14


Technical parameters

Number of Fiber,(pcs)	1-8	12		14-16	18-24
Diameter of Loose,(mm)	2.5	3.0		3.2	3.5
Stranded stell  wire(mm)	3.0mm(7*1.0mm)
HDPE Thickness of Out jacket, (mm)	1.2 1.0	1.5 1.2		1.5 1.2	1.5 1.2
Cable Diameter, (mm)	4.9*11.4	6.0*12.5		6.2*12.7	6.5*13.0
Cable Weight (kg/km)	76	85		87	90
Min Bending Radius Static/Dynamic	10 / 20 Cabel Diameter
Tension Loading (N)	1200/300
Compression loading, N/100mm	200/100
Span length(m)	40/50
temperature range	Operation		-20oC to +60oC
	Installation		-20oC to +60oC

* The nominal sheath thickness may vary by ±0.2mm.
** The nominal outer diameter and height may vary by ±0.4mm.
