Prod Model: |
WL-ACSR01 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model Number: |
ACSR Cable |
Brand Name: |
Dayuan |
Conductor: |
Aluminium Conductor Steel Reinforced |
Cross Section Area: |
10/2-800/100 |
Core: |
According to Customers' Requests |
Certificate: |
ISO9001,CCC,ASTM, BS, DIN, IEC, CSA |
Type Of Conductor: |
Stranded |
Packing Details: |
Wooden Drum |
Place Of Origin: |
Henan, China |
Usage: |
Overhead, Power Transmission Line |
Voltage: |
Low and Medium Voltage Cable |
Insulation Material: |
Bare |
Current: |
DC & AC |
Application: |
Power Station |
Certification: |
VDE |
Model: |
Wl-ACSR01 |
Brand: |
Dayuan |
Sheath Material: |
Bare |
Wire Core Material: |
Aluminium Conductor Steel Reinforced |
Product Description
Specifications

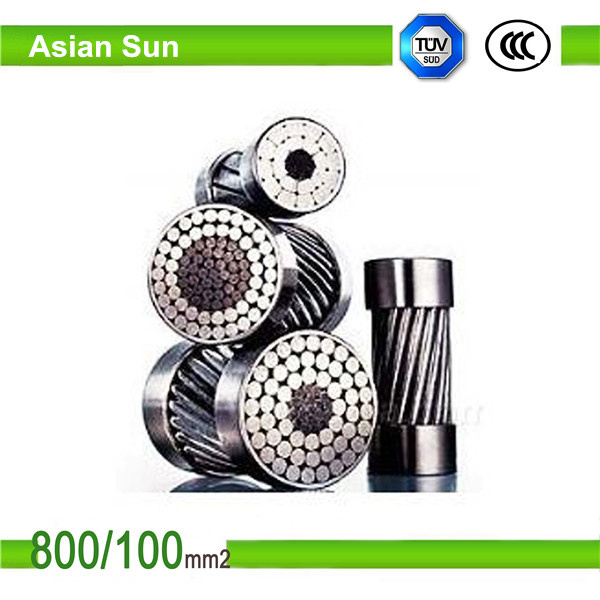

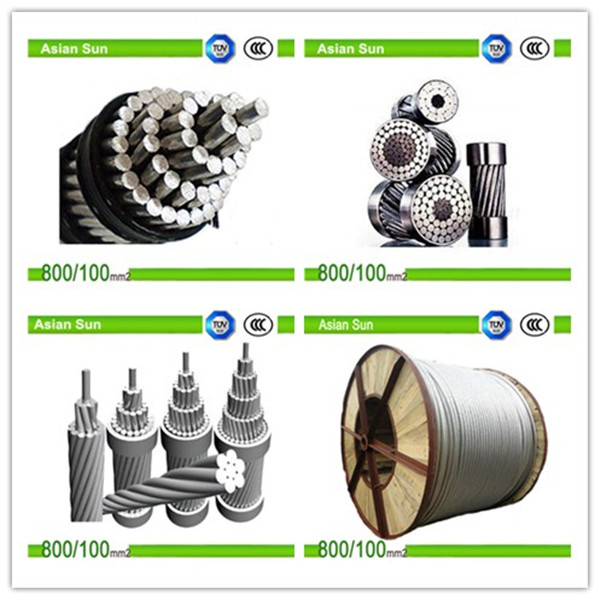

ACSR/AAC/AAAC/ACAR aluminum strand overhead conductor
1.18 years factory product
2.good feature
3.delivery fast
ACSR,AAC,AAAC,ASCSR&ACAR conductor widely used in power transmission lines with various voltage levels.
Application:
Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support.ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
Quality:
Production accroding to ASTM-B232,BS215-2,and IEC60189,DIN48201.
Material:
Conductor:AL1350 aluminum
Steel core:G1A or G2A steel wire
Galvanized steel reinforced
Working Conditions:
Ambient temperature:Above -20°C
Working temperature:Not exceed 80°C
Laying bending radius:Not less than 30 times the cables outer diameter
Standards:
ASTM-B232 Standard specification for Concentric-Lay-Stranded Aluminum 1350 Conductors
BS215-2 Aluminium conductors steel-reinforced -For overhead power transmission
DIN48204 Steel reinforced aluminum stranded conductors
IEC209 Aluminum stranded conductor steel reinforced
Customized type available.
ACSR Codes :
Code Name from ASTM-B232:
Code Name from ASTM-B232 |
Thrasher | Bluejay | Gannet | Flicker | Guinea |
Kiwi | Curlew | Flamingo | Pelican | Leghorn |
Bluebird | Ortolan | Egret | Lark | Quail |
Chukar | Tanager | Scoter | Ibis | Minorca |
Falcon | Cardinal | Grosbeak | Brant | Raven |
Lapwing | Rail | Rook | Chickadee |
|
Parrot | Catbird | Swift | Oriole | Petrel |
Nuthatch | Canary | Kingbird | Linnet | Robin |
Plover | Ruddy | Teal | Merlin | Grouse |
Bobolink | Mallard | WoodDuck | Ostrich | Sparate |
Martin | Condor | Squab | Partridge | Sparrow |
Dipper | Tern | Peacock | Waxwing | Swanate |
Pheasant | Drake | Eagle | Penguin | Swan |
Bittern | Cuckoo | Dove | Cochin | . |
Skylark | Coot | Parakeet | Brahma | Turkey |
Grackle | Redwing | Osprey | Dorking |
|
Bunting | Starling | Hen | Dotterel |
|
Finch | Stilt | Hawk | Pigeon |
|
Code Name from BS215-2:
Mole | Racoon | Wolf | Deer |
Squirrel | Otter | Caracal | Zebra |
Gopher | Cat | Lynx | Eik |
Weasel | Hare | Jaguar | Camel |
Fox | Dog | Panther | Moose |
Ferret | Hyena | Lion |
|
Rabbit | Leoperd | Bear |
|
Mink | Coyotte | Goat |
|
Shunk | Congar | Sheep |
|
Beaver | Tiger | Antilope |
|
Horse | Dingo | Bizon |
|
Standards:
ASTM-B232 Standard specification for Concentric-Lay-Stranded Aluminum 1350 Conductors
BS215-2 aluminum conductors steel-reinforced -For overhead power transmission
DIN48204 Steel reinforced aluminum stranded conductors
IEC209 Aluminum stranded conductor steel reinforced
Customized type available.
ACSR Technical Characteristics Based on Standard BS 215-2
Code name | Nominal aluminum area | Stranding and wire diameter | Sectional area of aluminum | Total sectional area | Approx. overall diameter | Approx. mass | Calculated D.C. resistance at 20oC | Calculated breaking load |
Al | Steel |
mm2 | No./mm | mm2 | mm2 | mm | kg/km | Ω/km | kN |
RABBIT | 50 | 6/3.35 | 1/3.35 | 52.88 | 61.7 | 10.05 | 214 | 0.5426 | 18.35 |
DOG | 100 | 6/4.72 | 7/1.57 | 105 | 118.5 | 14.15 | 394 | 0.2733 | 32.7 |
WOLF | 150 | 30/2.59 | 7/2.59 | 158.1 | 194.9 | 18.13 | 726 | 0.1828 | 69.2 |
DINGO | 150 | 18/3.35 | 1/3.35 | 158.7 | 167.5 | 16.75 | 506 | 0.1815 | 35.7 |
LYNX | 175 | 30/2.79 | 7/2.79 | 183.4 | 226.2 | 19.53 | 842 | 0.1576 | 79.8 |
ZEBRA | 400 | 54/3.18 | 7/3.18 | 428.9 | 484.5 | 28.62 | 1621 | 0.0674 | 131.9 |
