| Prod Model: |
ZS-ABC16-5-139 |
| Specification Type: |
ABC-016mm |
| Core Material: |
Aluminium Wire |
| Voltage Type: |
Low Voltage, Medium Voltage |
| Manufacturer: |
6 Years |
| OEM/ODM: |
Ok |
| Delivery Time: |
7 Workdays |
| Product Name: |
ABC Cable |
| Application: |
Telecommunication |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC Cable |
| Certification: |
TUV |
| Insulation Material: |
PVC/PE/XLPE |
| Sheath Material: |
XLPE |
| Model: |
Zs-ABC16-5-139 |
| Brand: |
Dayuan |
Product Description

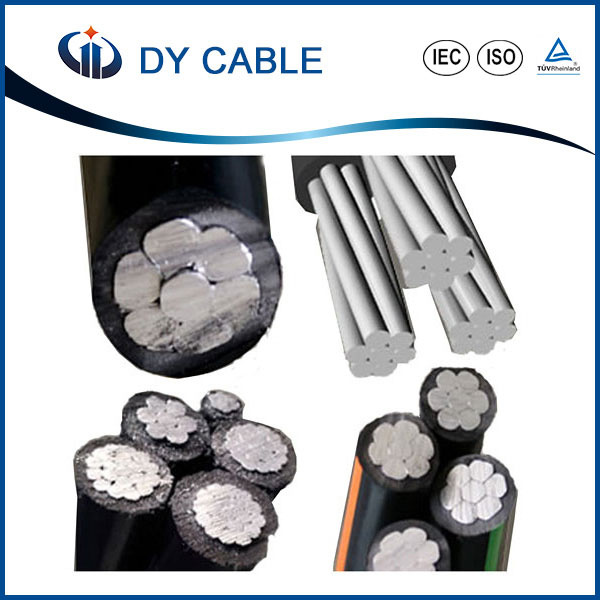

Overhead Power Aluminum Conductor Aerial Bundle Cable
Application:
The product is a new type of aerial cable for power transmitting . It is extensively used in overhead power transmission line. It improves the safety and reliance of electrified wire netting . It is primarily used on lighting, outdoor lighting,and temporary service for construction . To be used at voltage of 600V phase-to-phase or less,and the conductor temperatures no exceed 75degred for polyethylene insulated conductors 90degree for crosslinked polyethylene (XLPE) insulated conductors.
Construction:
Conductors are concentrically stranded,compressed 1350-H19 aluminum. Insulated with either polyethylene or crosslinked polyethylene (XLPE). Neutral messengers are concentrically stranded 6201, AAC,or ACSR .
The product is a new type of aerial cable for power transmitting . It is extensively used in overhead power transmission line. It improves the safety and reliance of electrified wire netting . It is primarily used on lighting, outdoor lighting,and temporary service for construction . To be used at voltage of 600V phase-to-phase or less,and the conductor temperatures no exceed 75degree for polyethylene insulated conductors 90degree for crosslinked polyethylene (XLPE) insulated conductors.
Specifications:
Cross Section of Conductor
(mm2) | Min.Nos. of Wires for Conductor
(mm) | Insulation Thickness
(mm) | Average Max. O.D.per Single-core
(mm) | Max.Conductor Resistance at 20ºC
(Ω/km) | Min Insulated Resistance at Rated Working Temperature
(MΩ.km) | Cable Tensile Breaking Force |
| | |
| 2x10 | 6 | 1.00 | 6.5x13.0 | 3.08 | 0.0067 | 0.67 | 1650 |
| 2x16 | 6 | 1.20 | 8.0x16.0 | 1.91 | 0.0065 | 0.65 | 2512 |
| 2x25 | 6 | 1.20 | 9.4x18.8 | 1.2 | 0.0054 | 0.54 | 3762 |
| 2x35 | 6 | 1.40 | 11.0x22.0 | 0.868 | 0.0054 | 0.54 | 5177 |
| 2x50 | 6 | 1.40 | 12.3x24.6 | 0.641 | 0.0046 | 0.46 | 7011 |
| 2x70 | 12 | 1.40 | 14.1x28.2 | 0.443 | 0.004 | 0.4 | 10354 |
| 2x95 | 15 | 1.60 | 16.5x33.0 | 0.32 | 0.0039 | 0.39 | 13727 |
| 2x120 | 15 | 1.60 | 18.1x36.2 | 0.252 | 0.0035 | 0.35 | 17339 |
| 2x150 | 15 | 1.80 | 20.2x40.4 | 0.206 | 0.0035 | 0.35 | 21033 |
| 2x185 | 30 | 2.00 | 22.5x45.0 | 0.164 | 0.0035 | 0.35 | 26732 |
| 2x240 | 30 | 2.20 | 25.6x51.2 | 0.125 | 0.0034 | 0.34 | 34679 |
| 4x10 | 6 | 1.00 | 6.5x26.0 | 3.08 | 0.0067 | 0.67 | 1650 |
| 4x16 | 6 | 1.20 | 8.0x32.0 | 1.91 | 0.0065 | 0.65 | 2512 |
| 4x25 | 6 | 1.20 | 9.4x37.6 | 1.2 | 0.0054 | 0.54 | 3762 |
| 4x35 | 6 | 1.40 | 11.0x44.0 | 0.868 | 0.0054 | 0.54 | 5177 |
| 4x50 | 6 | 1.40 | 12.3x49.2 | 0.641 | 0.0046 | 0.46 | 7011 |
| 4x70 | 12 | 1.40 | 14.1x56.4 | 0.443 | 0.004 | 0.4 | 10354 |
| 4x95 | 15 | 1.60 | 16.5x66.0 | 0.32 | 0.0039 | 0.39 | 13727 |
| 4x120 | 15 | 1.60 | 18.1x72.4 | 0.252 | 0.0035 | 0.35 | 17339 |
| 4x150 | 15 | 1.80 | 20.2x80.8 | 0.206 | 0.0035 | 0.35 | 21033 |
| 4x185 | 30 | 2.00 | 22.5x90.0 | 0.164 | 0.0035 | 0.35 | 26732 |
| 4x240 | 30 | 2.20 | 25.6x102.4 | 0.125 | 0.0034 | 0.34 | 34679 |
Our Services:
Luoyang Da Yuan Cable Factory Co., Ltd., a professional wires and cables manufacturer for 6 years in China. Da Yuan attends International Exhibitions every year, we support to offer many kinds of wires and cables, such as xlpe/pvc electrical power cable, control power cable, aerial cable, ABC, AAC, AAAC, ASCR cables, and XLPO/PVC Solar PV Cable etc. We can produce the standard: ASTM, BS, CSA, IEC, ASMC, DIN as your need.
1. Factory: 200,081 square meters, available for OEM&ODM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: CCC,ISO9001, CQC, etc;
4. Payment terms: T/T, L/C;
5. Guarantee: 17 years;
6. QC inspection: Strict inspection before delivery;
