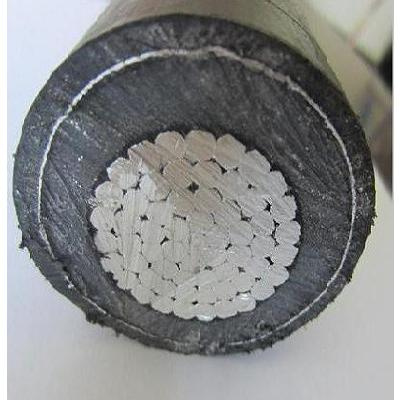

Overhead Power Line 11kv Cable with Best Quality Low Price

Name: Overhead Power Line 11kv Cable with Best Quality Low Price
Brand: all-electronics-online.com
SKU: 711086202
Availability: InStock
Rating: 4.3 (68 reviews)

Price:	Negotiablem
Min Order:	1000m
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	overhead 11kv cable B2-9
Color:	Black
Application:	Power Station
Current:	DC Cable
Insulation Material:	XLPE
Certification:	CE
Voltage:	11kv Cable
Wire Core Material:	Al
Model:	11kv Overhead Cable
Brand:	Yifang Cable

Product Description

Specifications
11kv cable
1) Copper or Aluminum conductor,ACSR
2)1 or 3 core
3)xlpe cable
Product Description
overhead power line 11kv cable with best quality low price
Including Overhead cable and power cable

1.11kv overhead insulated cable
Rated voltage U:11kV
Insulating temperature should not be below -20ºC
Max.temperature when short circuit (Max.continuous time not more than 5 sec):XLPE insulation 250ºC,HDPE insulation 150ºC.

(1)type ,description and main application

Type	Name	Main application
JKYJ	11kV copper conductor XLPE insulated overhead cable	Overhead fixed installation
JKLYJ	11kV Aluminum conductor XLPE insulated overhead cable
JKY	11kV Copper conductor PE insulated overhead cable
JKLY	11kV Aluminum conductor PE insulated overhead cable
JKLGYJ	11kV Aluminum conductor steel reinforced XLPE insulated overhead cable
JKLYJ/Q	11kV Aluminum conductor light-duty XLPE insulated overhead cable
JKLY/Q	11kV Aluminum conductor light-duty PE insulated overhead cable
JKLGYJ/Q	11kV Aluminum conductor steel reinforced light-duty PE insulated overhead cable

(2)Specs of 11kv overhead cable

Type	No of cores	Rated voltage(kV)
		11kV
		Nominal section area(mm2)
JKYJ	1	25-300
JKLYJ	3	25-300
JKY	1	16-300
JKLY
JKLGYJ
JKLGYJ/Q
JKLYJ/Q
JKLY/Q

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
