Overload Indicator and Sensor for Construction Hoist (KQC-C2)
| Price: |
US $ 180-200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
KQC-C2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Construction Hoist Spare Parts Overload: |
Kqc-C2 |
Product Description
Construction hoist spare parts overload indicator and sensor Product Details:
Working power: AC220V/50Hz;
Output contact capacity of relay: 10A/250VAC;
Input signal range: 15mV
Construction hoist spare parts, motor, gearbox, coupling, cable, safety device, gear rack, rack pinion. Limit switch, roller.
Construction hoist spare parts:
GJJ parts, BAODA parts.
Driving device;
Motor,
Gearbox,
Coupling,
Cable,
Safety device,
Gear rack.
Overload indicator and sensor;
Master Roller;
Guide roller;
Master section;
Seamless steel tube.
Limit switch;Product Description
I. Introduction
KQC-C2 overload limiter is a new type of smart weight overload protection device, which measure the loaded weight's change by load cell. KQC-C2 could display actual load. When the load reached a rated load setting value, it will show the signals with sound and light, and giving the value of output for switch signal.
KQC-C2 contains a series of advantage: rational structure, easy installation and debugging, reliable working and high precision and so on.

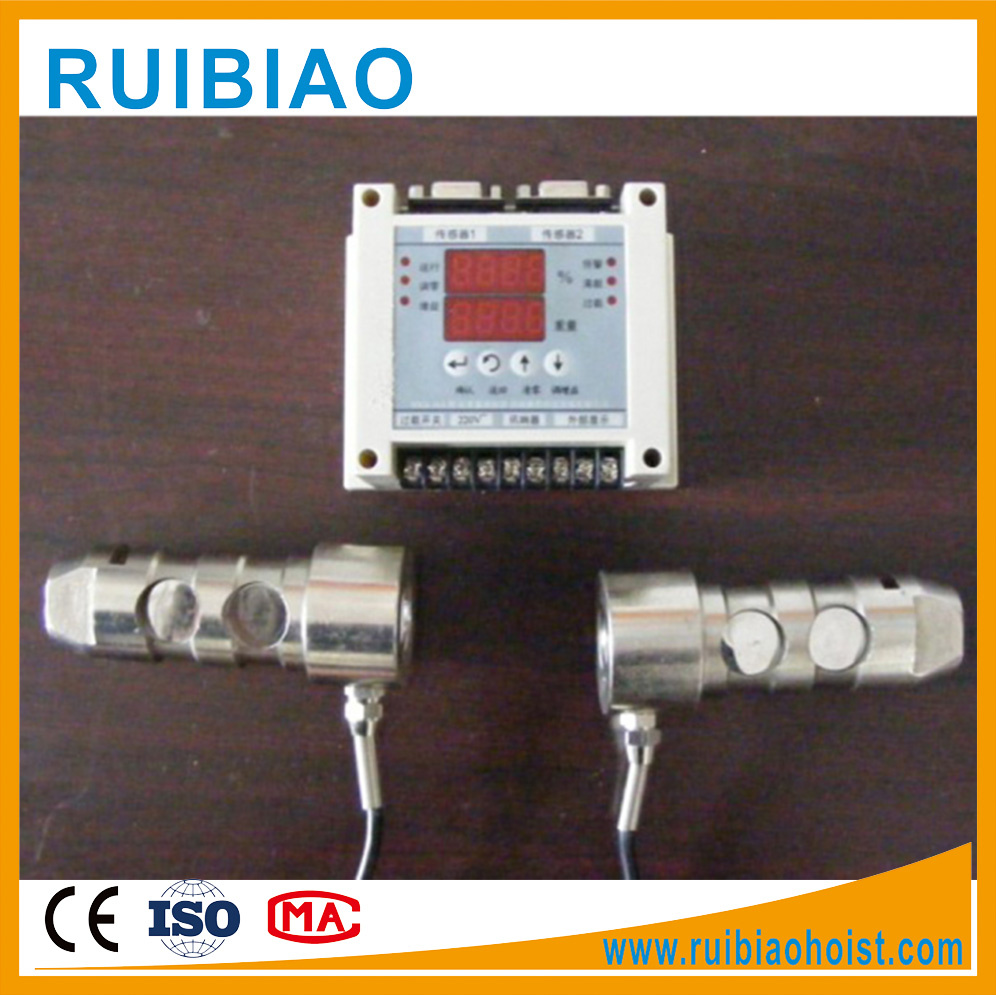

Using a single load cell is for the tower hoist, windlass and so on; Using two load cells are for the building hoist. II.Technical Parameter
Working power:AC220V/50Hz;
Total error:≤5% F.S;
Excitation:DC5V;
Relay output capacity:10A/250VAC;
Input signal:0mV--15mV;
Max input signal:≤15mV;
Display digits:4 bits;
Working temperature:-20-60degree centigrade
Relative humidity:≤85%RH;
Warming-up time:≥10min;

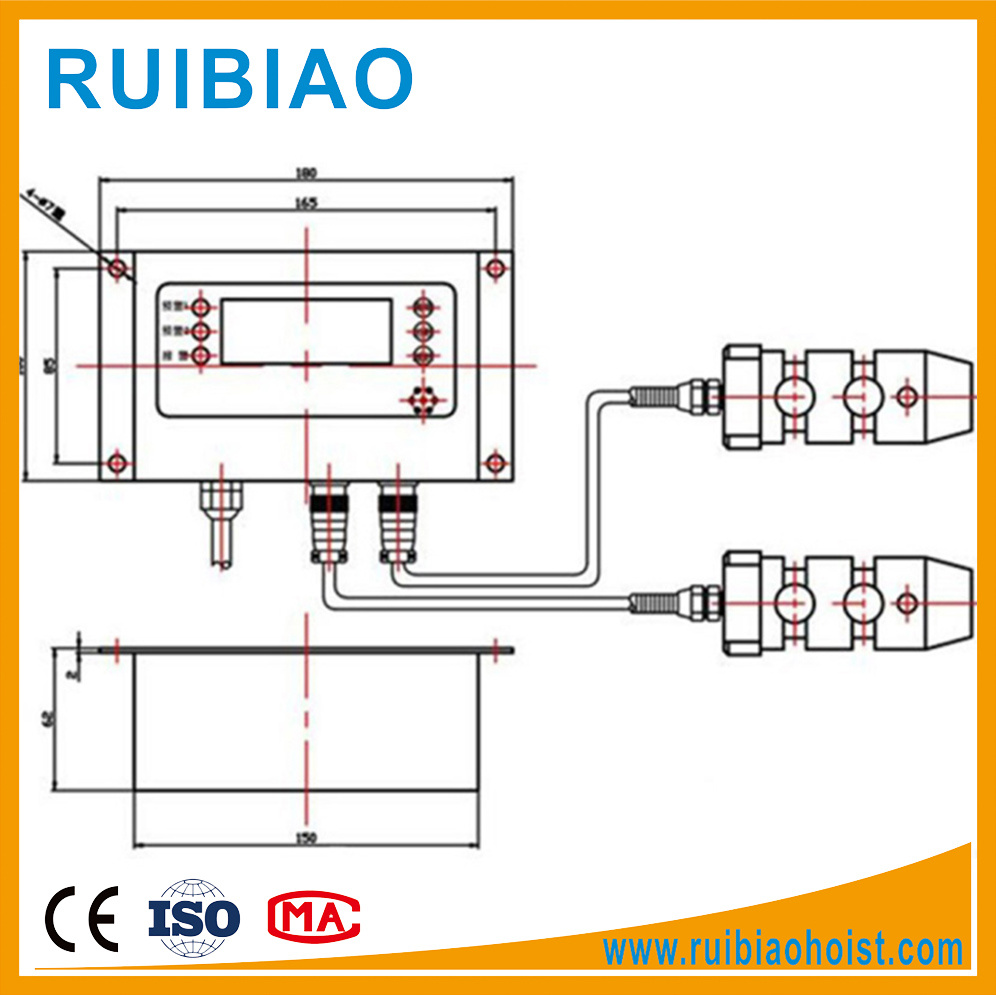

Indicator dimension:130mm*155mm*72.5mm;
IV. Function of keyboard

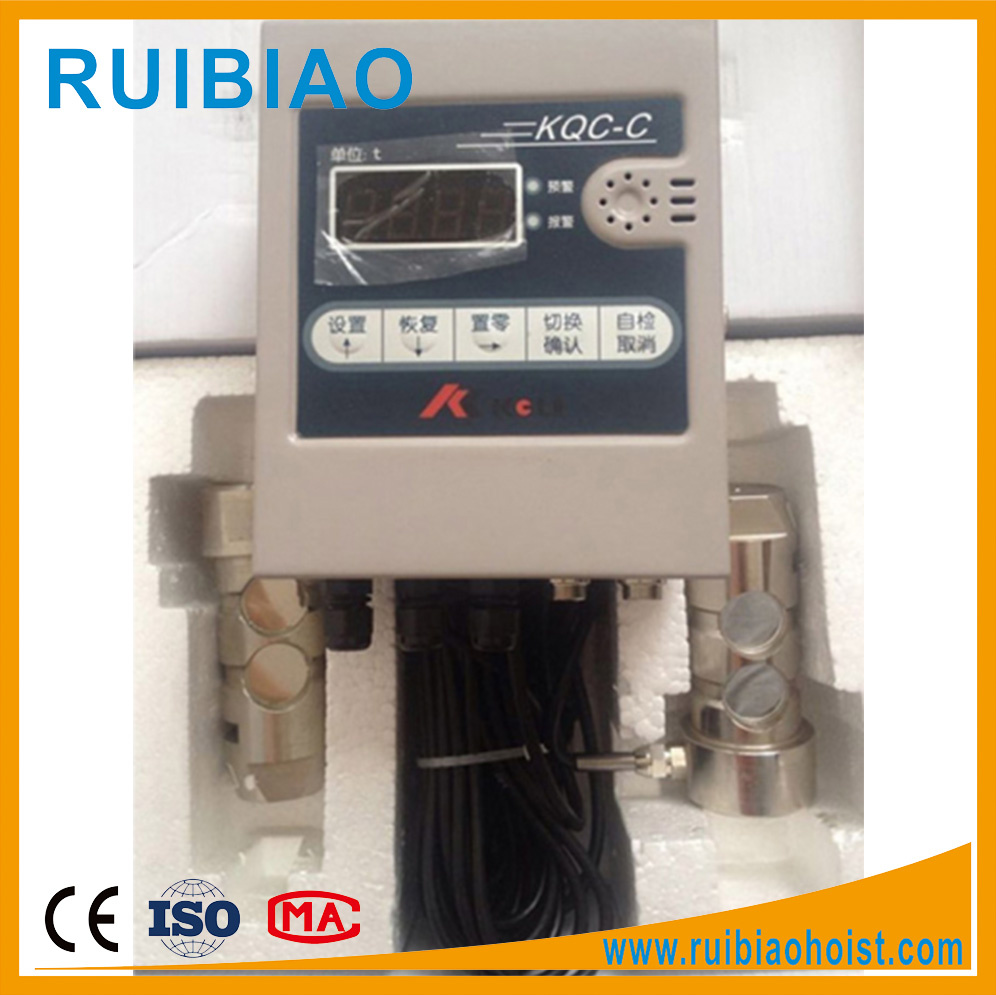

Indicator's control board profile:
Keyboard function instruction:
In setting state, put in parameter set and calibration mode; indicate asset
In setting state, choose menu or add current parameters; indicate as .
In weighing state, resume defaults; indicate asresume.
In weighing state, choose menu or decrease current parameters; indicate as.
In weighing state, it will display 0 by pressing this key; indicate as0.
In weighing state, move flashing bit to right; indicate as.
In weighing state, switchweight/percentage/ISN; indicate asswitch.
In setting state, confirm and save parameters; indicate asconfirm.
High quality construction hoist spare parts
High quality GJJ, BAODA material hoist spare parts
All kinds of hoist spare parts , GJJ,BAODA,ZOOMLION,TIGER,
Driving device with 2-motors / 3-motors;
motor: 11kw, 14.5kw,18kw;
motor spare parts: braking system; brake sheet, motor adjustor, electromagnet,motor fan.
safety device: 30KN,40KN,50KN,60KN;
gearbox: 16:1,14:1,12:1;10:1;
coupling with rubber;
master rollers for 76 tube and 89 tube;
gear rack M8 40x60x1508mm;
gear pinion: M8,15teeth;
limit switch;
gate rollers;
counter rollers;
transformer;
Overload protect system;
cable: 3x16+2x6, 3x16+2x10
Overload Indicator and Sensor
Construction Hoist Spare Parts
Shanghai RuiBiao Construction Machinery Co., Ltd is the special maker of power precision transmission products of gear racks, slewing ring bearings, safety devices and gearboxes, Anemometer Wind Speed Meter, Overload Indicator and Sensor, Worm and Worm Wheel, Hoist Spare Parts for construction, engineering, lifters, lifting elevators, hoists, and machinery transmission. Our products are mainly exported to Malaysia, Italy, the USA, Spain, Greece, Turkey and Russia. We can satisfy our customers' needs well. We can produce products according to customers' special requirements.
We are making precision casting parts according to customer's technical requirements
We sincerely hope to cooperate with friends in the fields!
