Overload Protector /Load Limiter for Construction Hoist
| Price: |
US $ 180-200/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
KQC-C2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Power: |
AC220V/50Hz |
Product Description
Overload Protector /Load Limiter for Construction HoistOverload protector is a new smart weight overload protection, by setting the weight sensor measures changes in weight loading , when the load reaches the set value of its rated load , giving out the audible alarm signal, and gives the switch output.

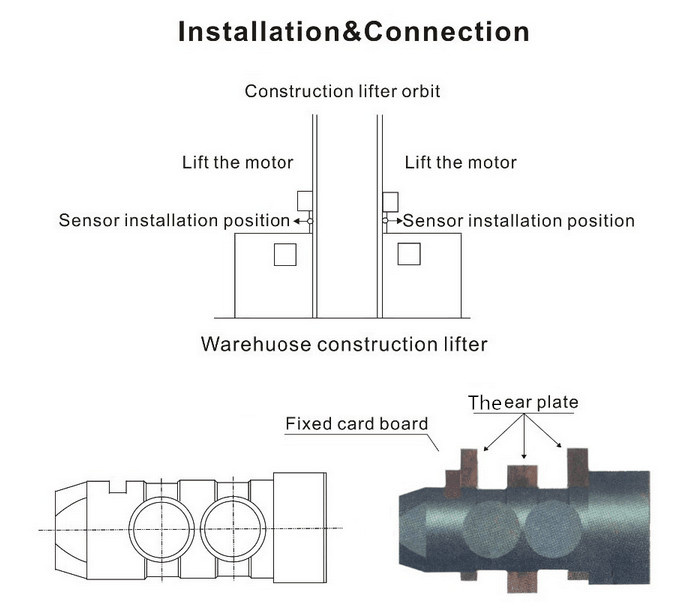

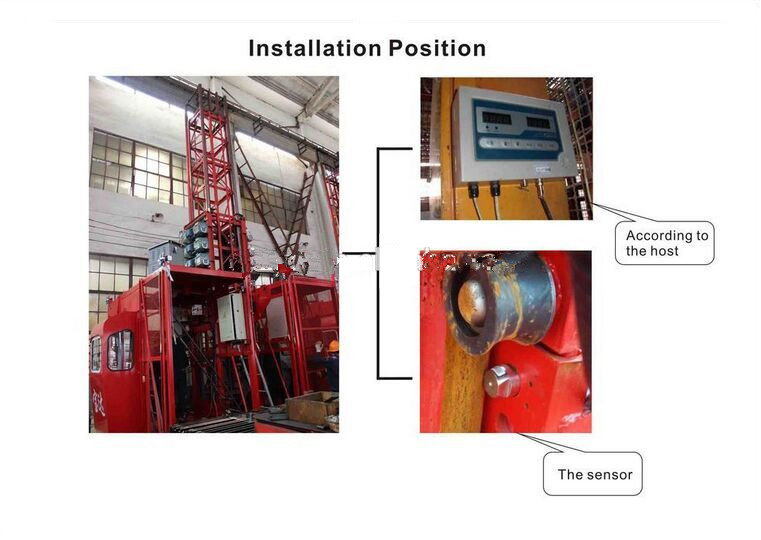

In order to avoid overloading the cage and accidents,equipped with overload protection device between the cage ring and wire rope.General use of fprce sensor ,and installed in the cage of the microcomputer connection weight limiter.Techical Parameter | Working Power | AC220V/50HZ |
| Total error | ≤5% F.S |
| Excitation | DC5V |
| Relay output capacity | 10A/250VAC |
| Input signal | 0mV---15mV |
| Max input signal | ≤15mV |
| Display digits | 4 bits |
| Working temperature | -20ºC-60ºC |
| Relative humidity | ≤85%RH |
| Warming-up time | ≥10min |

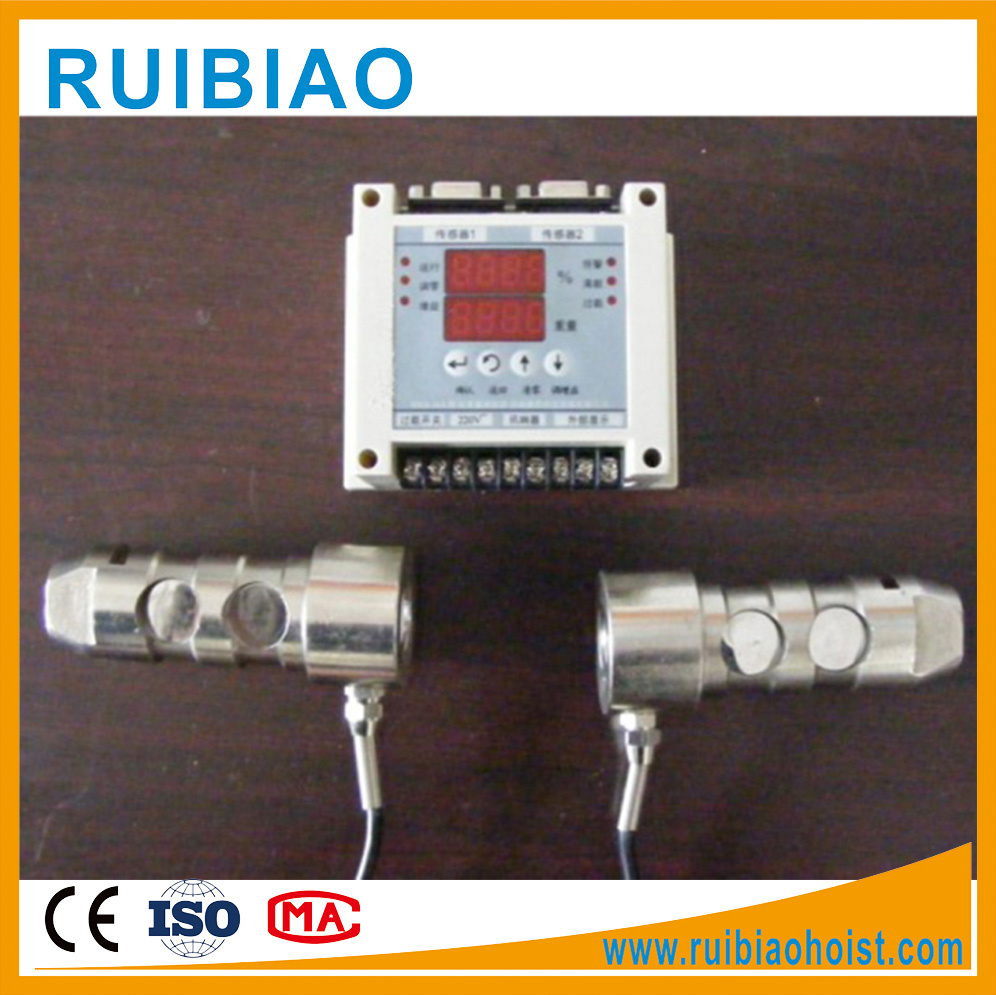

KQC contains a series of advantage:rational structure,easy installation and debugging,reliable working and high precision and so on.Using a single load cell is for the tower hoist,windlass and so on,Using two load cells are for the building hoistA. Producing process: Strict material selection- Blanking- Inspection - Welding- Inspection- Blasting - Inspection - Baking finished or galvanized- Inspection - Finished product
Outdoor building elevator can be customized according to customers'requirements (drawing, specifications and so on).
B. Special design for Cage:
1. Bottom and roof of Cage adopt trapezoidal frame
2. Bottom and the roof are full symmetry
3. The plane of symmetry are connected by Bending plate, Bending channel and square pipe which make it firm, straight and balance in use.
4. The wall around cage can be fixed by Punched Aluminium plate, Punched zinc plate, steel wire mesh.
5. Surface Treatment: Blasting, Baking finished, GalvanizedC. Workshop Details and Transport Details:
1. All Production Line adopt standard of the fixture, mould, gauge
2. Each Construction Lift should be testing-run and adjustment in Factory
3. Workshop 5S mangement style
D: About us
We are a professional construction hoist manufacturer, and we makes professional designing, producing, marketing, repairing and maintaining a coordinated process.
Quality is life of enterprise, detail makes difference. We have a standard operation and stict check on every procedure.
The common construction lifter models
Name |
Unit |
SC100 |
SC100/100 |
SC200 |
SC200/200 |
Rating loading capacity |
Kg |
1000 |
2×1000 |
2000 |
2×2000 |
Passenger number |
Person |
12 |
2×12 |
16 |
2×16 |
Rating rising rate |
m/min |
36 |
36 |
36 |
36 |
Max. promoting height |
m |
200 |
200 |
200 |
200 |
Motor power |
KW |
2×11 |
2×2×11 |
3×11 |
2×3×11 |
Cage size |
m |
3*1.5*2.5 |
3*1.5*2.5 |
3*1.5*2.5 |
3*1.5*2.5 |
650 mast section weight |
Kg |
124 |
148 |
124 |
148 |
650 mast section length |
mm |
650×650
×1508 |
650×650
×1508 |
650×650
×1508 |
650×650
×1508 |
Steeve rating rising weight |
Kg |
200 |
200 |
200 |
200 |
Shanghai RuiBiao Construction Machinery Co., Ltd is the special maker of power precision transmission products of gear racks, slewing ring bearings, safety devices and gearboxes, Anemometer Wind Speed Meter, Overload Indicator and Sensor, Worm and Worm Wheel, Hoist Spare Parts for construction, engineering, lifters, lifting elevators, hoists, and machinery transmission. Our products are mainly exported to Malaysia, Italy, the USA, Spain, Greece, Turkey and Russia. We can satisfy our customers' needs well. We can produce products according to customers' special requirements.
We are making precision casting parts according to customer's technical requirements
We sincerely hope to cooperate with friends in the fields!
