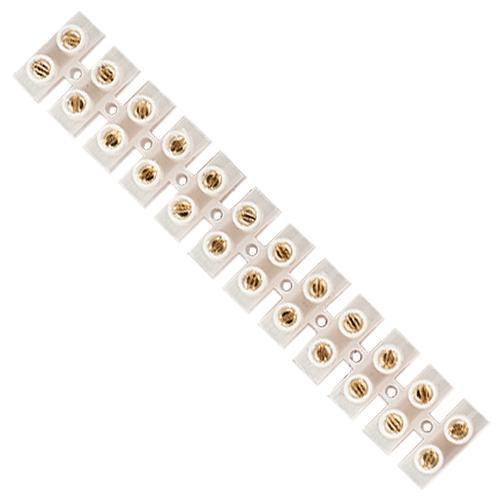

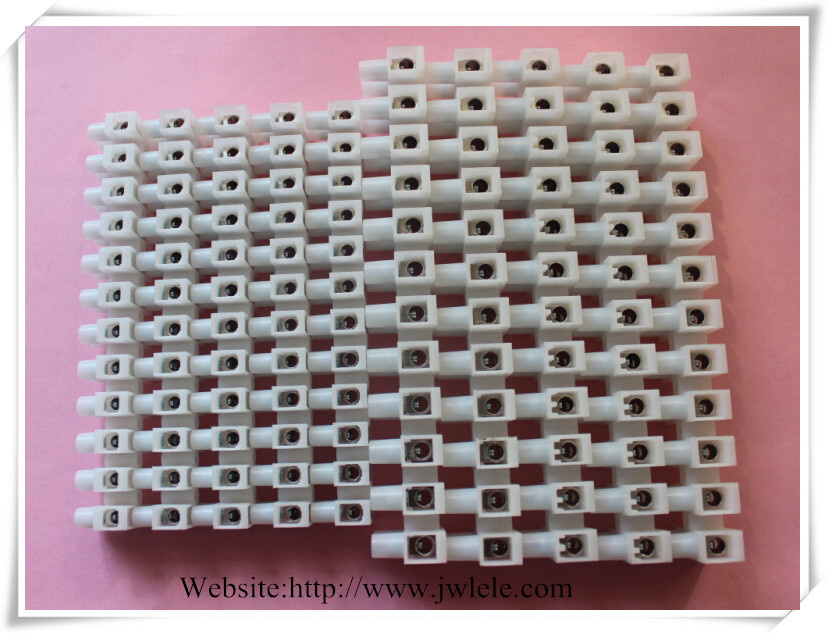

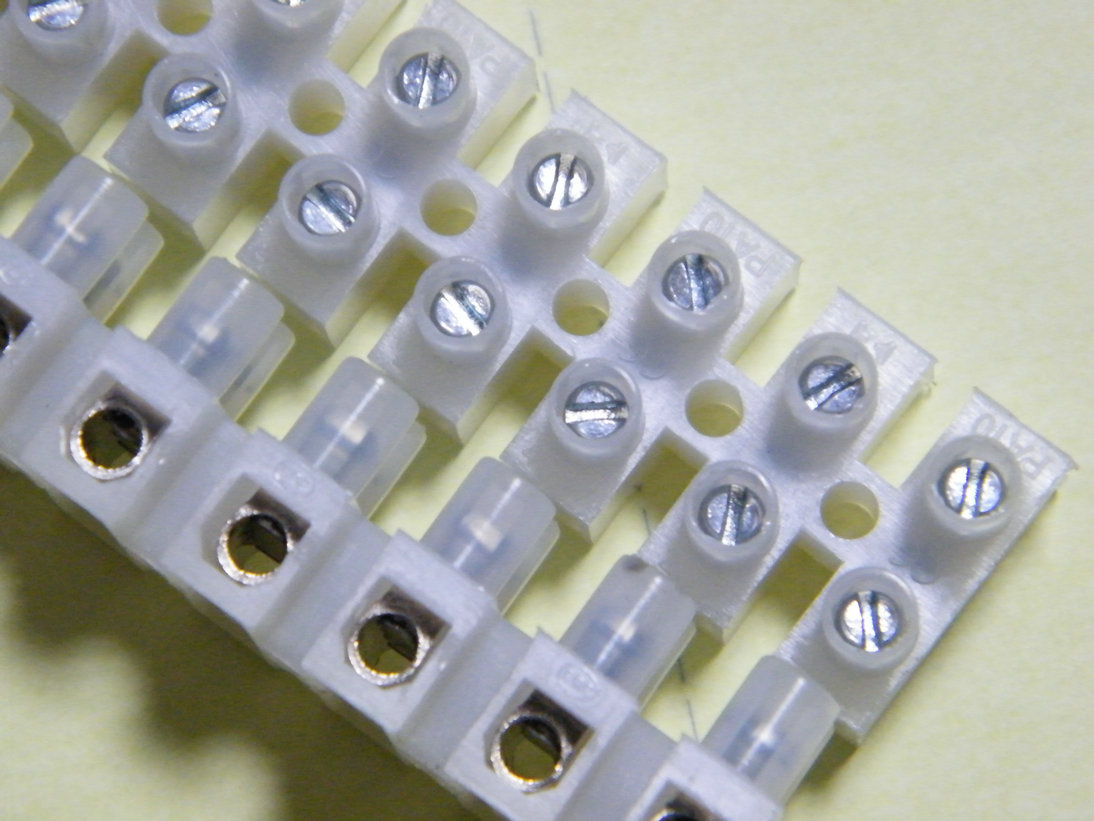

PA 12 Way Terminal Block Flat Base Type PA8h, PA12h

Name: PA 12 Way Terminal Block Flat Base Type PA8h, PA12h
Brand: all-electronics-online.com
SKU: 693434395
Availability: InStock
Rating: 5 (101 reviews)

Price:	US $ 0.14-0.15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PA8H, PA8HDS, PA10H, PA10HDS, PA12H, PA12HDS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Communication
Environmental Protection:	Resistance to Environmental
Connection Mode:	Threaded Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed

Product Description

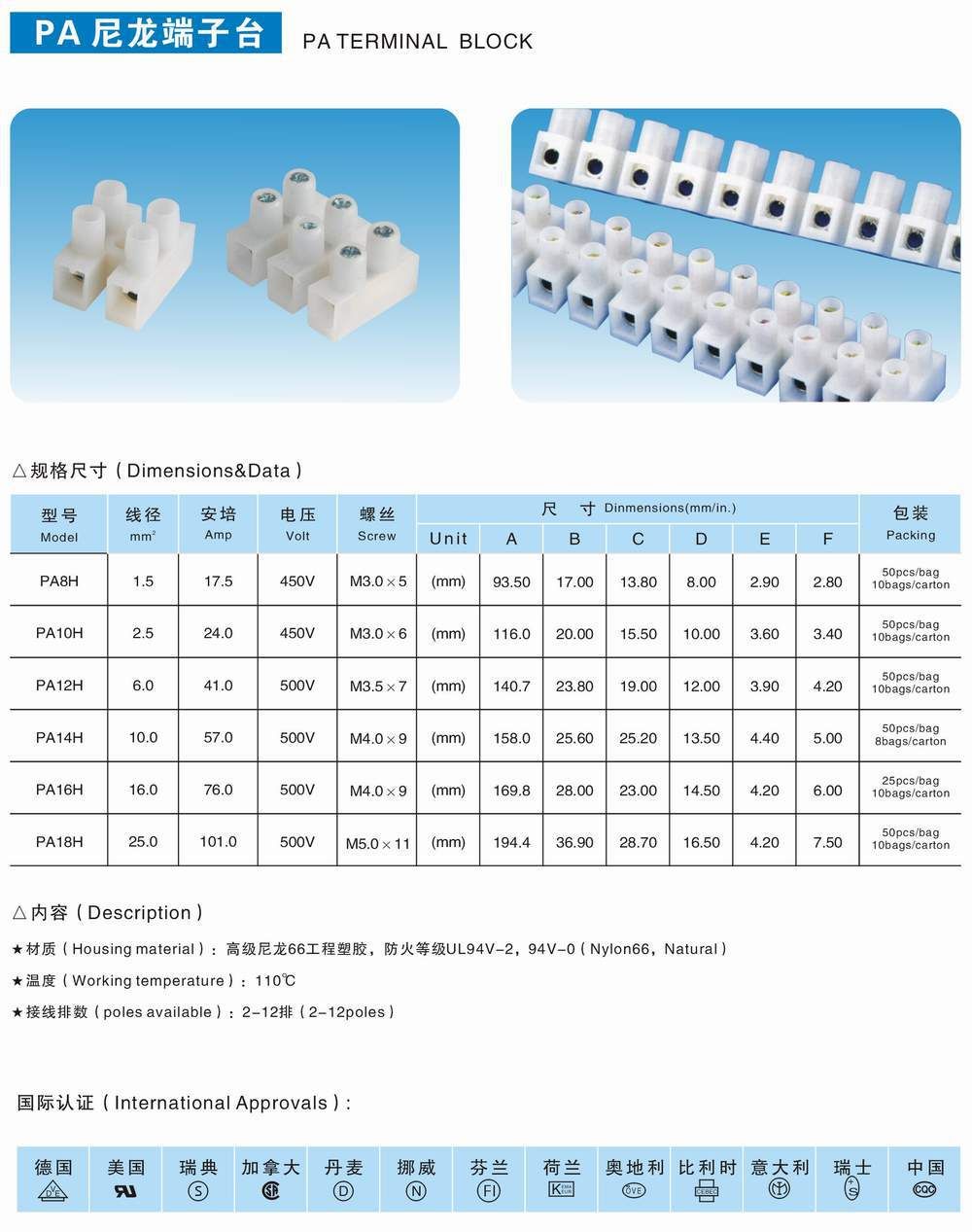

Terminal block Feature:
1. Material: Nylon66, nature
2. Cable used Zinc plating
3. Temperature: 105 UL, -30 to 110 VDE
4. Type: H

Base: Heighting 1.0mm
Cover: Nylon 66 engineering plastic, 94UV-2, 94UV-0 flame retardant rating
Temperature: 105oC UL, -30oC to 110oC VDE
Wire base: Sheet cooper, nickel plating

Shrapnel: Stainless steel, PA8DS\PA10DS additional
Screw: Carbon cooper wire, zinc plating
Wire strip length: PA8 about 5.0mm/0.20inch PA10 about 6.5mm/0.26inch
Connection rows:12

Place of Origin	Zhejiang, China (Mainland)
Brand Name	JWL
Model Number	PA8H, PA8HDS, PA10H, PA10HDS, PA12H, PA12HDS, PA14H, PA16H, PA18H
Number of Contacts	11 - 20
Conductor Size	11 - 20 AWG
Type	Feed Through
certificated	UL, CSA, VDE, CQC, CE, SGS
color	nature
Port:	Ningbo or Shanghai
Packaging Details:	10pcs/bag, 50bags/ctn
Delivery Time:	2-4 week days
Payment Terms:	L/C, T/T
Supply Ability:	500000 Piece/Pieces per Month as request

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
