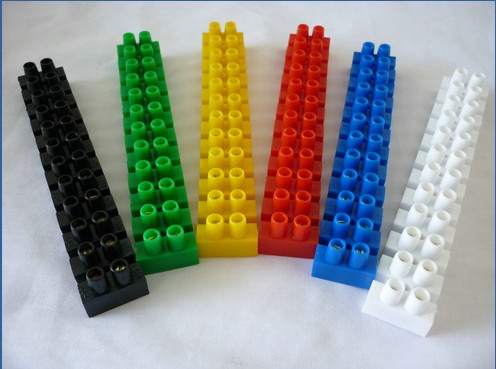

PA12h Colorful Polyamide Strip Terminal Block

Name: PA12h Colorful Polyamide Strip Terminal Block
Brand: all-electronics-online.com
SKU: 719939085
Availability: InStock
Rating: 4.3 (98 reviews)

Price:	US $ 0.25-0.3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Communication
Environmental Protection:	Resistance to Environmental
Connection Mode:	Threaded Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Brand:	Jwl

Product Description

Specification & Models
Feed Through terminal blocks (H concave bottom type)
Base: base heightening 1.2-2.5mm

Plastic housing: nylon 66 plastic, UL 94V-2, UL 94V-0 flammability rating
Temperature: 110 ºC ,150 ºC ,850 ºC

Line Block: copper alloy, znic alloy (nickel) or with stainless steel shrapnel

Shrapnel: stainless steel
Sprial: carbon steel wire, galvanized

Stripping length: 230/PA8 about 5.0mm, 500/PA10 about 6.5mm
830/PA12 about 7mm, PA14 about 9mm
PA16 about 9mm, PA18 about 11.5mm

Wiring Poles: 1-12 cut pole upon request

Item no.	L	W	H1	H2	Φ	E1	E2	screw size	material
Item no.	mm							screw size	material
3A 4mm 2	92.3	16.8	12.3	7.7	3	7.8	5.7	M2.5*4	PE PP PA
6A 6mm 2	115.4	18.8	15.4	8.7	3.2	9.6	6.3	M3*5	PE PP PA
10A 10mm 2	129.3	20.7	16	9.5	4.2	11	7.6	M3*6	PE PP PA
15A 12mm 2	137.8	22.5	18.6	10.3	4.5	11.7	8.6	M3*7	PE PP PA
20A 14mm 2	138	22.5	19	10.7	4.7	12	8.6	M4*6.5	PE PP PA
30A 16mm 2	164	25.5	20	11.7	5.6	13.9	9.3	M4*7	PE PP PA
60A 25mm 2	186	29.2	25.3	14.8	6.6	15.7	10.8	M4*9	PE PP PA
80A 35mm 2	226.8	36.1	29	18	7.8	19.2	13.2	M5*11	PE PP PA
100A 40mm 2	254.8	45	34.7	22.3	9	20.5	19.2	M6*12	PE PP PA

Place of Origin	Zhejiang, China (Mainland)
Brand Name	JWL
Model Number	PA8H, PA8HDS, PA10H, PA10HDS, PA12H, PA12HDS, PA14H, PA16H, PA18H
Number of Contacts	11 - 20
Conductor Size	11 - 20 AWG
Type	Feed Through
certificated	UL, CSA, VDE, CQC, CE, SGS
color	nature
Port:	Ningbo or Shanghai
Packaging Details:	10pcs/bag, 50bags/ctn
Delivery Time:	2-4 week days
Payment Terms:	L/C, T/T
Supply Ability:	500000 Piece/Pieces per Month as request

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
