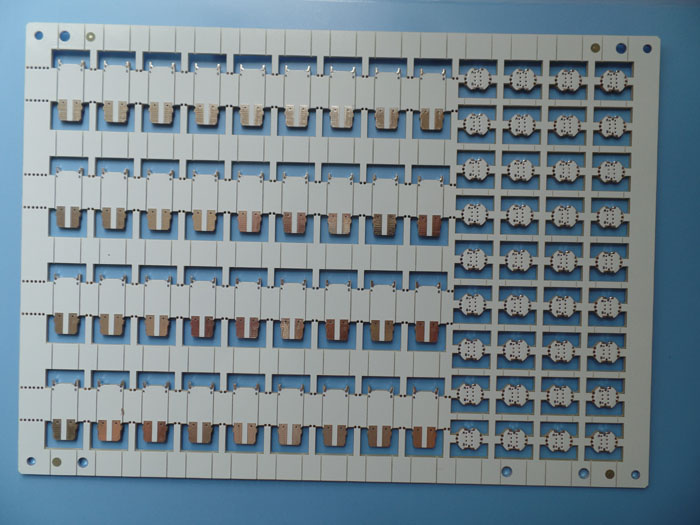

Panel PCB Double Sided Board 1.6mm Thick with White Soldermask
| Price: |
US $ 0.45/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1245R2.3 |
| Surface Finish: |
HASL Lead Free |
| Board Thick: |
1.6mm |
| Solder Mask Color: |
White |
| Legend Color: |
Black |
| Copper Thick: |
1 Oz |
| Minimum Trace and Space: |
5.5mil/6.47mil |
| Minimum/Maximum Holes: |
0.3mm/3.6mm |
| Via: |
Plated Through Hole(Pth) |
| Board Plating: |
0.0030" |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Double Sided PCB Board White PCB Solder Mask HASL Lead Free Applied In Monitoring
Systems
Commodity Introduction

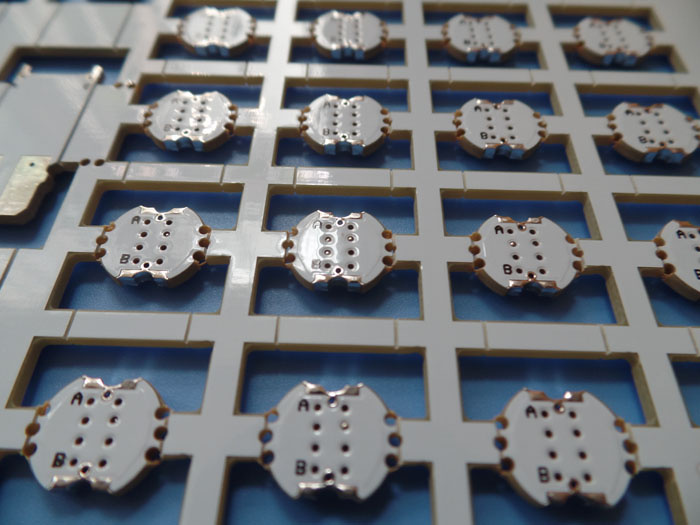

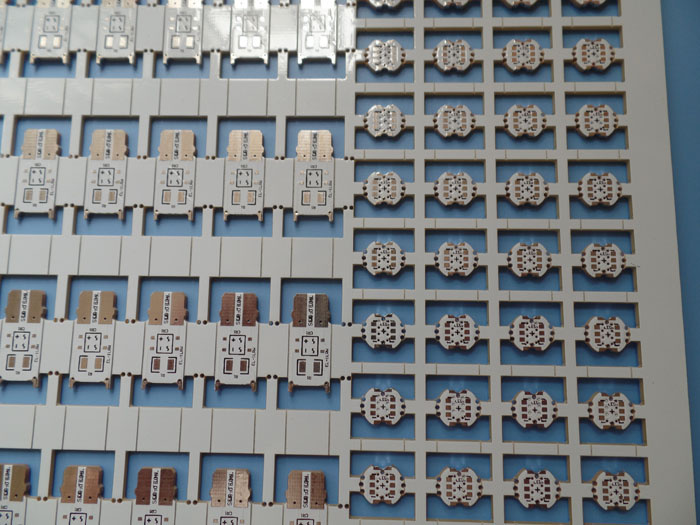

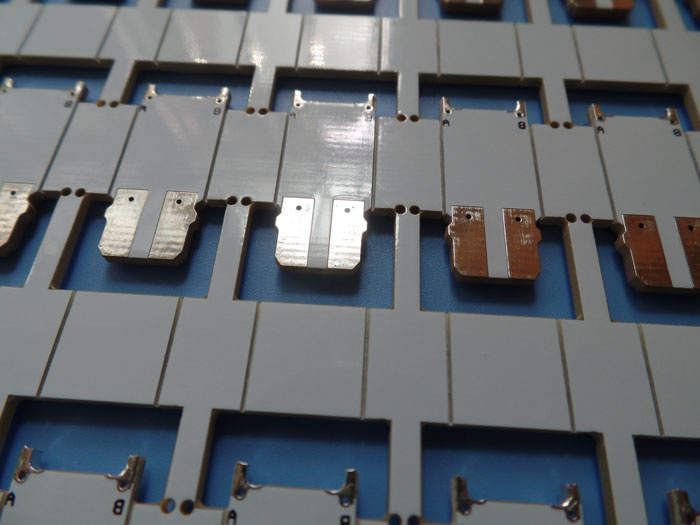

This is a type of FR-4 PCB for the application of Monitoring Systems.. It's a 2 layer board at 1.6mm
thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per
IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 221 x 198mm=72PCS=2types |
| BOARD TYPE | |
| Number of Layers | Double sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 17.8um(0.5oz)+plate TOP layer |
| FR-4 1.5mm |
| copper ------- 17.8um(1oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5.5mil/6.47mil |
| Minimum/Maximum Holes: | 0.3mm/3.6mm |
| Number of Different Holes: | 12 |
| Number of Drill Holes: | 934 |
| Number of Milled Slots: | 72 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-140 TG>135 |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | HASL, Lead Free, Sn>=2.54µm |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | White |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | Black |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Monitoring Systems, Power Transformer
Solar Led Lights
12V Inverter
GPS Logger
LAN Switch |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
PCB Development
Printed circuit board develops from single sided to double sided, multilayer and flexible, and still
maintain their own development trends. Due to the continuous development of high precision, high
density and high reliability, and constantly reduce the volume, reduce costs, improve performance,
making the printed circuit board in the future development of electronic equipment, still maintained
a strong vitality.
Review on the future development trend, the manufacturing technology of PCB mainly is
consistent, namely high density, high precision, small diameter, thin track, fine pitch, high reliable,
multilayer, high-speed transmission, light weight, thin direction. To improve productivity, reduce
costs, reduce pollution, adapt to many varieties and small batch production are the production
direction at the same time. The technology development level of printed circuit boards, it is
regarded with line width, PCB drill, aspect ratio as a representative.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
