Parallel Copper Wire Strength Non-Amrored Optic Fiber Cable (GYXTY&COPPER)

Name: Parallel Copper Wire Strength Non-Amrored Optic Fiber Cable (GYXTY&COPPER)
Brand: all-electronics-online.com
SKU: 683279232
Availability: InStock
Rating: 5 (100 reviews)

Price:	US $ 0.45-0.9/Meter
Trade Terms:	FOB,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYXTY&COPPER
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	G652D, Om1 Om2 Om3 Om4 9/125 50/125 62.5/125
Fiber Material:	Doped Silica
Fiber:	Single Mode
Strength Member:	Two Parallel Copper Wire
Tube:	Central Loose Tube
Armored:	Non-Armored
Material Of Jacket:	HDPE/Lszh Sheath/Flame Retardant Sheath
Bending Radius:	Static 10Cable-D Dynamic 20Cable-D
Applications:	Outdoor Aerial and Duct
Certificate:	ISO9001 Tlc RoHS
Type:	Single-mode Fiber
Application:	Communication
Certification:	CCC
Brand:	Efon
Core:	2-24
Sheath Material:	HDPE/Lszh Sheath/Flame Retardant Sheath/Anti-Roden
Connection Structure:	Other

Product Description

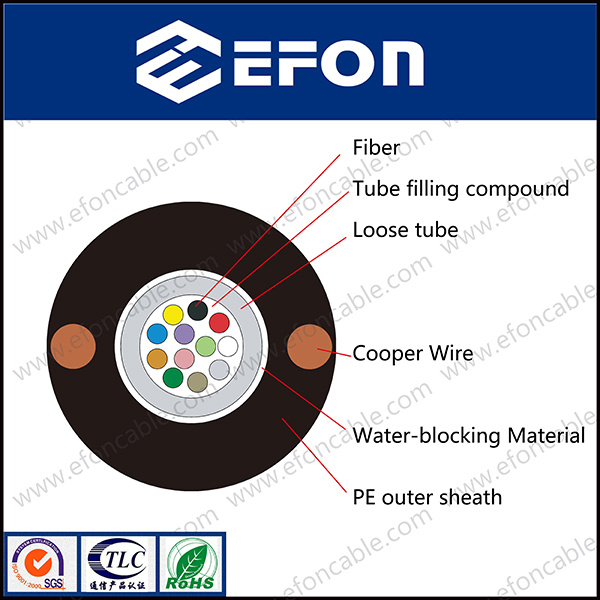

GYXTY&COPPER aerial optical cable is an outdoor communication optical cable of copper wire strength member of the central tube jelly-filled structure, with polyethylene sheath.

Features:

Full cross-section water-blocking structure with vertical cover ensure good water blocking and moisture resistance
Loose tube is filled with special ointment for a key fiber protection
The material of strengt member is copper wire.
Product life of 30 years

Applications:

Applications: Suitable for long-distance communication and indoor communication
Way of laying: overhead, pipeline
Operating temperature: -40 ~ + 70 °C
Bend radius: static 10x cable diameter; Dynamic 20x cable diameter

Products Standard

Mechanical Performance
Max Tension Performance IEC 60794–1-2-E
Max. Operation Tension IEC 60794–1-2-E1
Crush Test IEC 6079 –1-2-E3
Impact Test   IEC 60794–1-2-E4
Repeated Bending IEC 60794–1-2-E6
Torsion Test   IEC 60794–1-2-E7
Cable bend IEC 60794–1-2-E11A
Attenuation Coefficient   ITU-T G.652
Structural Test   IEC-60793-1-20
Environmental Performance
Temperature Cycling   IEC 60794–1-2-F1
Water Penetration   IEC 60794–1–2-F5B
Filing Compound Flow IEC 60794-1-E14

Structure and Technical Specifications

NOMINAL DESINGN PARAMETERS
Part NO: Increased by 2 fiber	Cable dia.(mm)	Cable net weight (Kg/km)	Min.bending radius (mm)	Min. tensile strength(N)	Min.crush pressure N/100mm
			Static state / Dynamic state	Short term / Long term	Short term / Long term
GYXTY&COPPER 2-6	10.1	110	110 / 220	1500 / 600	1000 / 300
GYXTY&COPPER 8~12	10.6	122	110 / 220	1500 / 600	1000 / 300

We produce fiber optic cable, patch cord, pigtail, optical coupler, PLC splitter and other passive components for FTTX.

We offer products of a consistent quality. Our QC team monitors the manufacturing process and inspects all products before shipment.

We have a professional customer service team, which is always ready to consult you on all the issues related to our products.

Our Principles:
* Full customer satisfaction
* Commitment to high-quality service
* Relationships based on mutual trust and respect
* Long-term cooperation rather than one time profitable sale

EFON CABLE is your reliable partner in mainland China!

We were established in 2001 as a manufacturer of fiber optic cable. Since then we have been growing to become a leading Chinese manufacturer and exporter of fiber optic products around the globe.
