Shenzhen UPSEN Electronic Co., Ltd. >> Parallel Solar Inverter 12/24/48V 220V Inbuilt Battery Charger and MPPT Controller with Ethernet Function

Parallel Solar Inverter 12/24/48V 220V Inbuilt Battery Charger and MPPT Controller with Ethernet Function

Parallel Solar Inverter 12/24/48V 220V Inbuilt Battery Charger and MPPT Controller with Ethernet Function
Price: US $ 1-100/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: RS Series
Power Source: Solar Power
Output Frequency: 50Hz or 60Hz
Charger: AC / Solar Charger
Color: Gray
Application: Home, Office, Solar Power System

Product Description

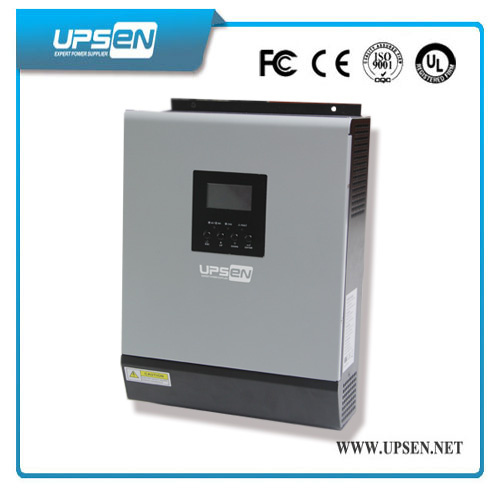

Parallel Solar Inverter Inbuilt Battery Charger 1000VA - 5000VA
Off Grid Hybrid Pure Sine Wave Inverter Controller Rainbow Star Plus Series 1000Va-5000Va   (1ph in/1ph out)


Key Features
1:Cold start function
2:High frequency full bridge design
3:Built-in PWM solar charge controller
4:Auto restart while AC is recovering
5:Compatible to mains voltage or generator power
6:Designed to Operate under Harsh Environment
7:·Pure sine wave output waveform : clean power for sensitive loads
8:Components with high-quality original, ensure products with high quality
9:Small, light and artistic, benefited from adopting the SMD paster technology
10:Parallel operation with up to 4units only available for 4KVA/5KVA (Optional)
11:Selectable input voltage range for home appliances and personal computers
12:LED & LCD Display on the front panel shows the working and failure state




Application
Supply the reliable long back up time power for the TV,Computer,DVD,VCD, Printing machines,Data center, Financial and Securities, Large Data rooms,Power tools, lawn mowers, vacuum cleaners,Cameras and photographic equipment etc.




Technical Specification
ModelRS Plus 1KRS Plus 2KRS Plus 3KRS Plus 4KRS Plus 5K
RATED POWER1000VA/800W2000VA/1600W3000VA/2400W4000VA/3200W5000VA/4000W
INPUT
Voltage208/220/230/240 VAC
Selectable Voltage Range170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation
(Batt. Mode)
230 VAC ± 5%
Surge Power2000VA4000VA6000VA8000VA10000VA
Efficiency (Peak)90~93%93%
Transfer Time10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
WaveformPure sine wave
BATTERY & AC Charger
Battery Voltage12VDC24VDC48 VDC
Floating Charge Voltage13.5VDC27VDC54 VDC
Overcharge Protection15.5VDC30VDC60 VDC
Maximum AC Charge Current10A or 20A20A or 30A20A or 30A
SOLAR CHARGER
Maximum PV Array Open
Circuit Voltage
30VDC60VDC90VDC
Solar Charge Current50A50A
Standby Power Consumption1W2W2W
PHYSICAL
Dimension,D*W*H (mm)95*240*316100*272*355120*295*468
Net Weight (kgs)5 6.99.89.8
OPERATING ENVIRONMENT
Humidity5% to 95% Relative Humidity(Non-condensing)
Operating Temperature0°C - 55°C
Storage Temperature-15°C - 60°C




Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.

We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.

We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.

We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
