Parallelable Pure Sine Wave Solar Inverter with MPPT Solar ⪞ Harge ⪞ Ontroller DC&⪞ Apdot; 4V 48V5kVA
| Price: |
Negotiable/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
PSK 5KVA |
| MPPT Solar ⪞harge ⪞ontroller: |
&⪞aret;0AMP |
| Parallel Quantity: |
5 |
| Display: |
Digitanl LCD |
| Effi⪞ien⪞y: |
98% |
| Surge Power: |
&⪞apdot; Times as Rated Power |
| Ma≃ PV Array: |
105VDC |
| AC Charger: |
≃0AMP |
| Rated Power: |
5kVA4000W |
Product Description

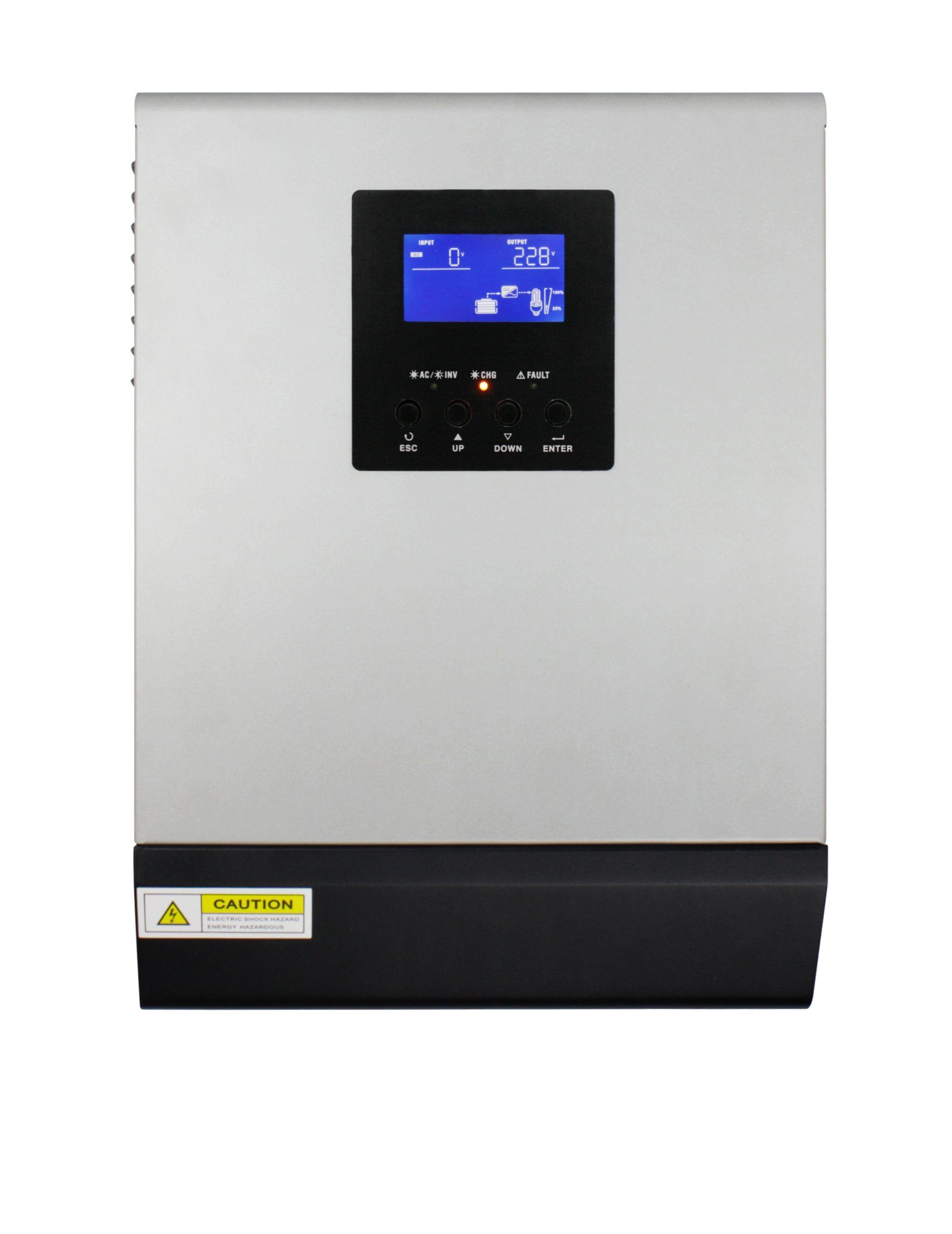

parallelable pure sine wave solar inverter with MPPT solar charge controller DC24V 48V5KVA
Pure sine wave
Built-in MPPT solar charge controller
Selectable input voltage range for home appliances and personal computers
Selectable charging current based on applications
Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Parallel operation with up to 6 units only available for 4KVA/5KVA
Optional Remote Control Panel available
Specifications
| Model | PSK
1000 | PSK
2000 | PSK
3000 | PSK
3000 | PSK
4000 | PSK
5000 |
| DC VOLTAGE | 1K-24v | 2K-24v | 3K-24v | 3K-48v | 4K-48v | 5K-48v |
| RATED POWER | 800W | 1600W | 2400W | 2400W | 3200W | 4000W |
| INPUT |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers)
90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA |
| Efficiency (Peak) | 90%-93% | 93% |
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| BATTERY & AC CHARGER |
| Battery Voltage | 24 VDC | 24 VDC | 24 VDC | 48 VDC | 48 VDC |
| Floating Charge Voltage | 27 VDC | 27 VDC | 27 VDC | 54 VDC | 54 VDC |
| Overcharge Protection | 31 VDC | 31 VDC | 31 VDC | 62 VDC | 60 VDC |
| SOLAR CHARGER & AC CHARGER |
| Maximum PV Array Power | 600 W | 600 W | 600 W | 900 W | 3000 W |
| MPPT Operating Voltage | 30V~66VDC | 30V~66VDC | 30V~66VDC | 60V~88VDC | 60V~115VDC |
| Maximum PV Array Open Circuit Voltage | 75VDC | 75VDC | 75VDC | 102VDC | 145VDC |
| Maximum Solar Charge Current | 25A | 25A | 25A | 18A | 60A |
| Max AC Charge Current | 20A | 30A | 30A | 15A | 60 A |
| Maximum Charge Current | 25A | 30A | 30A | 18A | 120A |
| AC and solar charger can't work at the same time |
| Maximum Efficiency | 98% |
Standby Power
Consumption | 2 W |
| PHYSICAL |
| Dimension D*W*H | 100*272*355 (mm) | 140*295*540 (mm) |
| Net Weight (kgs) | 6.8 | 7 | 7.4 | 12.5 | 13.5 |
| OPERATING ENVIRONMENT |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | 0°C - 55°C |
| Storage Temperature | -15°C - 60°C |
