| Prod Model: |
MCK-1508 |
| Country Of Original: |
China |
| Color: |
as Your Requirement |
| Minimium Order Quantity: |
20 Sets |
| Over Sea Sales Service: |
Available |
| Delivery Date: |
5 Working Days After Payment Arrived |
| Shipping Method: |
by Air |
| Loading Port: |
Shanghai |
| Packing Material: |
Wooden Case |
| Payment: |
Tt & LC Combine |
| Call Type: |
Mixed |
| Hardware Technology: |
Digital Switch |
| Certification: |
ISO |
| Condition: |
New |
| Usage: |
Passenger Hoist Use |

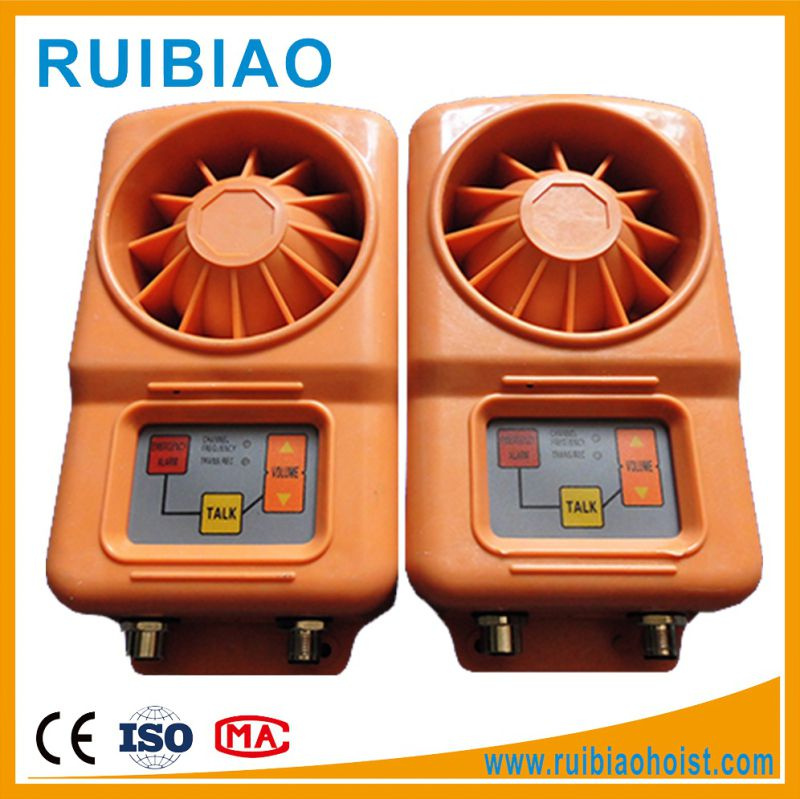

Product Description
Brief Introduction
Hoist elevator is used more and more commonly in the construction field. Construction workers on different floors usually get help from person in hoist elevator by beating the steel pipe attached on the wall, which is not safe and lack of position accuracy.
Now in order to manage the construction lift convenient and reasonably and to improve working efficiency, iHomePager layer calling system is coming. This system is wireless, no need any label, easy installation; it has successfully solved the communication problem between construction workers and lift operator. It also sharply reduces the safe risk, and greatly improves the efficiency.
The construction workers could call the elevator operator to get assistance at any time by the wireless call system.
Features
1. Micro-power wireless technology, environmental protection, no radiation;
2. Wireless design, no wiring, easy maintenance;
3. Identify call position accurately, and the call information effectively convey in 300 milliseconds;
4. Call data backup, storage, statistics, analysis, it is a good helper on quantitative management;
5. Rapid and effective response to emergencies;
Specification of IXD-G
| S/N | Feature | Details |
| 1 | Audio Output: | 0-1.5W |
| 2 | Size: | |
| 3 | Weight: | |
| 4 | Call type: | single |
| 5 | Distance: | 1500m open area |
| 6 | Frequency: | 433.92Mhz/315Mhz |
| 7 | Consumed Electricity: | 18mA |
| 8 | Power supply: | 9V |
| 9 | Receiving Sensibility: | -108dbm |
| 10 | Output Power: | ≤10mw |
Product Description
1.the description of the call system:
Our wireless floor call system for building hoist is a new generation with high confidentiality, large storage space, stable
performance and low power consumption. Meanwhile it doesn't need to use traditional skipped stitches or DIP switch coding, and
just make host to learn wireless signals that lauched by wireless son host. If the son host is lost or broken, you can make another
similar son host to learn with the host. It's very convenient.
Main techinical parameter
2.Main technical parameters and indices:
Receiving frequency: 315.75MHz
Receiving sensitivity: -112Db
EMC anti-interference: strong
Error calibration: yes
Stand-by current: ≤70
Calling buzzer capacity: 99
Directive mode: voice report
3.Suppliers and parameters of main devices
Crystal SAW: Military
Capacitor, resistor: MURATA, Samsung original
Diode, triode: NEC Japan original
Inductor: TDK Japan original
Power module: RICOH Japan
Power amplifier: Toshiba Japan
Connector: Military
Transmitting antenna: Nickel plated bronze
Power supply level: 3C certification
Voltage input: 100V-240V broad range self-adaptive
Application environment, installation mode and compatibility
plication environment: temperature -20°C~40°C, humidity ≤98%
