| Prod Model: |
NM-8104 |
| Color: |
Depend on Your Requirement |
| Packages: |
Wooden Case out Packing |
| Shipping: |
by Sea |
| Shipping Period: |
14 Working Days Upon Payment Arrived |
| Minimium Order Quantity: |
1 Set |
| Country Of Original: |
China |
| Loading Port: |
Shanghai & Qingdao |
| Model: |
Cls-191 |
| Oversea Sales Service: |
Available |
Product Description
Product Description

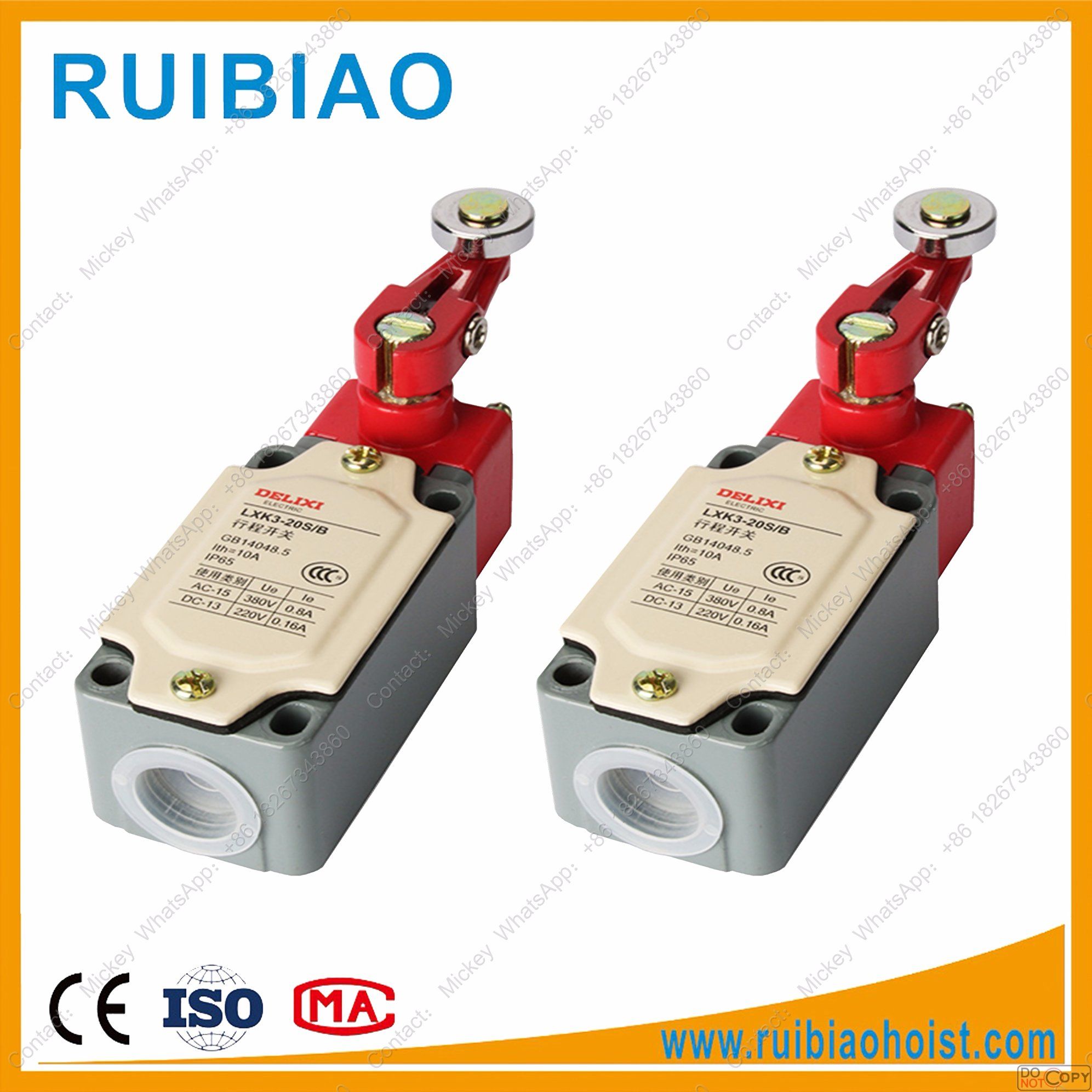

Passenger hoist limit switch
Model NO.: NM-8104
Number of Switch: Double Control Switch
Size: Normal Size
Breaking Capacity: Micro-Current
Application: Passenger Hoist Parts
Certification: SGS, CE, CCC
IP: 65
Max. Voltage: AC250V
Specification: CE
HS Code: 8543909000
Pressing Type: Spring Roller
Protection: Waterproof
Environment: <250ºC
Breaking Form: Duplex Type
Weight: 130g-190g
Max. Current: 5A
Trademark: Chnanma or as customer request
Origin: China
Product Description
1.Switch Feature:
1)N/O and N/C, brass contact, Silver tip.
2)Double circuit type of limit switch with roller lever arm.
3)Highly rigid construction, consists of intensive plastic and aluminum cast.
4)Small volume, water-proof and oil-proof construction.
5)Built-in basic switch with double spring mechanism, longer mechanical life.
6)Smooth operation with greater OT.
7)Easy-to-wire circuit opening design.
8)Wide varity of actuators, easily use.
2.Specifications
| Rated voltage | Non-inductive load | Inductive load |
| Resistive load | lamp load | Inductive load | Moto load |
| N.C | N.O | N.C | N.O | N.C | N.O | N.C | N.O |
| 125 VAC | 5 | 5 | 1.5 | 0.7 | 3 | 3 | 2 | 1 |
| 250 VAC | 5 | 5 | 1 | 0.5 | 3 | 3 | 1.5 | 0.8 |
| 8 VDC | 5 | 5 | 3 | 3 | 5 | 4 | 3 | 3 |
| 14 VDC | 5 | 5 | 3 | 3 | 4 | 4 | 3 | 3 |
| 30 VDC | 5 | 5 | 3 | 3 | 4 | 4 | 3 | 3 |
| 125 VDC | 0.4 | 0.2 | - | - | - | - | - | - |
| 250 VDC | 0.4 | 0.24 | - | - | - | - | - | - |
3.Characteristics
| Operating speed | 5mm to 5cm/s |
| Operating frequency | 120operation/min |
| contact resistance | 25mΩ max (initial) |
| Insulation resistance | 100mΩ min (at 500VDC) |
| Dielectric strength | 11,000VAC,50/60Hz for 1 minute between non-continuous terminals |
| 1,500VAC,50/60Hz for 1 minute between current carrying and non-current carrying parts and between each terminals and ground |
|
| Vibration | 10 to 55Hz,1.55mm double amplitude |
| Shock | Approx,300m/s²(approx,30G's |
| Ambient temperature | Operating:-5 to +65ºC |
| Humidity | 95% RH max. |
| Service | Mechanically 10,000,000 operations min. |
| electrically 500,000 operations min. |
| Weight | Approx. 130 to 190g |
| Degree of protection | IEC:IP65 |
4.Operating Characteristics
| Model | NM-8108 |
| OF Max | 750g |
| RF Min | 100g |
| PT Max | 20º |
| OT Min | 50º |
| MD Max | 12º |
5.Why choose Us?
1) We can provide you with different types of micro switches for your selection.
2) We can offer good quality electric life 500, 000-1, 000, 000times.
3) Various operating force, height and color for one switch for your choice.
4) Safety, on-time delivery, excellent quality with competitive price.
5) ODM&OEM professional design.
6.CUSTOMER'S QUESTIONS
Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.
Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.
Q3:Can you give me samples to test?
Answer:Yes
Q4:What's you MOQ?
Answer:MOQ 2500PCS, mixed order acceptable, welcome trial order.
Q5:What's the delivery term?
Answer:Both EXW and FOB Ningbo are acceptable.
Q6:What's the payment term?
We could start our discussion about payment term from second order on.
Q7:What's the shipment way?
Answer:Express:DHL, UPS, FedEx, TNT and SF express.
Forwarder:Air shipment or sea shipment.
7.More information of our products, please do feel free to contact us.
Reply will be available within 24 hours. Thanks!
Features
| 1).N/O and N/C, brass contact, Silver tip |
| 2)With strong aluminum die-cast cover |
| 3)Structure preventing oil,water and pressure |
| 4)Indicating plate with setting position is installed in it,ao it is easy to maintain |
| 5)Various of actuators is taken convenience for using |
| 6)Built-in contact stand has double-spring,so it has long mechanical life |
| Material | Aluminium body with stainless steel pin plunger |
| Degree of protection | IP65 |
| Mechanical | 15,000,000 operations |
| Rated frequency | 50/60 Hz |
| Protection against electric shock | Class I |
| Ambient operating temperature | -10°C to +80°C (with no icing) |
| Ambient operating humidity | 35% to 95% RH |
2.Specifications
| ITEM | Data |
| Rating load | 10A/250VAC |
| Operating speed | 1mm-50cm/s |
| Operating frequency | Mechanical | 120times/min |
| Electrical | 30times/min |
| Insulation resistance | 100MΩ(Above)DC500V |
| Contact resistance | 25MΩ(intial value) |
| Withstand voltage | Non-connection wire | 1000VAC |
| Every terminal | 1500VAC |
| Vibration | Misoperation | 10-55Hz Amplitude 1.5mm |
| Impact | Durable | 1000m/s² |
| Misoperation | 300m/s² |
| Life | Electrical | 100,000above |
| Mechanical | 1,000,000above |
| Protection degree | IP66 |
| Operation temperature | -10~+80ºC |
| Operating humidity | <85% |
3.Operating Characteristics
| Model | WLCA-2 |
| OF Max | 1360g |
| RF Min | 227g |
| PT Max | 20º |
| OT Min | 30º |
| MD Max | 12º |
| EP Max | 2720g |
| OP | 50º |
4.Why choose our switches
1) We can provide you with different types of micro switches for your selection.
2) We can offer good quality electric life 500, 000-1, 000, 000times.
3) Various operating force, height and color for one switch for your choice.
4) Safety, on-time delivery, excellent quality with competitive price.
5) ODM&OEM professional design.
5.CUSTOMER'S QUESTIONS
Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.
Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.
Q3:Can you give me samples to test?
Answer:Yes
Q4:What's you MOQ?
Answer:MOQ 2500PCS, mixed order acceptable, welcome trial order.
Q5:What's the delivery term?
Answer:Both EXW and FOB Ningbo are acceptable.
Q6:What's the payment term?
We could start our discussion about payment term from second order on.
Q7:What's the shipment way?
Answer:Express:DHL, UPS, FedEx, TNT and SF express.
Forwarder:Air shipment or sea shipment.
6.More information of our products, please do feel free to contact us.
Reply will be available within 24 hours. Thanks!
| Contact details |
| Shanghai Ruibiao Construction Machinery Co.,Ltd SHRB |
| Address | B400, Duzhuang Road, Minhang District, Shanghai of China |
| Contactor | Mickey Wei |
| Mob | 0086-18267343860 |
| | |
| | |
| Facebook | https://www.facebook.com/weiminsky |
Shanghai RuiBiao Construction Machinery Co., Ltd is the special maker of power precision transmission products of gear racks, slewing ring bearings, safety devices and gearboxes, Anemometer Wind Speed Meter, Overload Indicator and Sensor, Worm and Worm Wheel, Hoist Spare Parts for construction, engineering, lifters, lifting elevators, hoists, and machinery transmission. Our products are mainly exported to Malaysia, Italy, the USA, Spain, Greece, Turkey and Russia. We can satisfy our customers' needs well. We can produce products according to customers' special requirements.
We are making precision casting parts according to customer's technical requirements
We sincerely hope to cooperate with friends in the fields!
