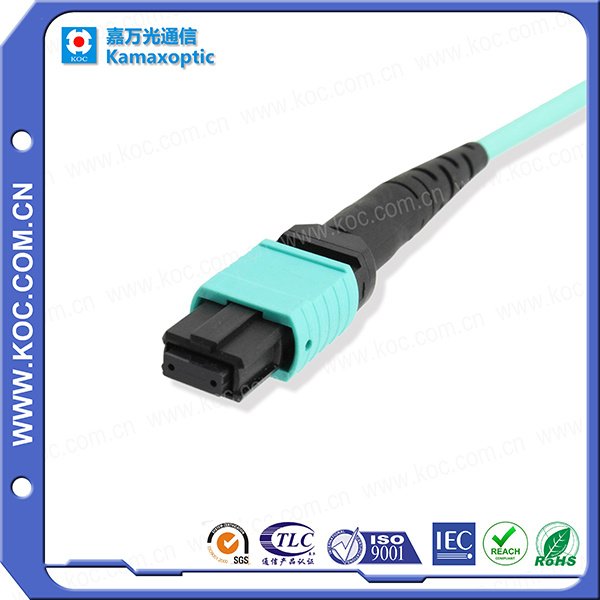

Patch Cord Om4 MPO/MTP 12f PVC 5m

Name: Patch Cord Om4 MPO/MTP 12f PVC 5m
Brand: all-electronics-online.com
SKU: 765836055
Availability: InStock
Rating: 5 (122 reviews)

Price:	US $ 30/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Patch Cord Om4 MPO/MTP 12F PVC 5m
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
MTP:	1m,3m,5m,10m,1.5m
MPO:	Patch Cord Round
12f:	PVC
Lshz:	Erica Voilet
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001

Product Description

APPLICATIONS
CATV , and Multimedia
Telecommunication networks
Active device interface
Telecommunication networks
Gigabit Ethernet
Data processing networks
Interconnection for O/E modules
Premise installations
Optical switch interframe connection
Asynchronous Transmission Mode (ATM)

FEATURES
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-1435-CORE compliant

SPECIFICATIONS

	Single mode		Multimode
	Standard	Low loss	Standard	Low loss
Insertion Loss	<=0.75dB typical<=0.5dB	<=0.4dB typical<=0.3dB	≤0.5dB typical<=0.35dB	≤0.3dB typical<=0.2dB
Return Loss	≥60 dB (APC)		≥35 dB (PC)
Repeatability	≤0.1dB
Durability	≤0.2 dB typical change, 1000 matings
Interchangeability	≤0.2dB
Tensile strength	>5kg
Operating Temperature	-40 to + 85°C

ORDERING OPTIONS

Connector code	Hook Color	Boot Type	Fiber number	Fiber Type	Length
Male	Beige	Bare fiber short	4-fiber	9/125μm (SM)	Customized
Female	Black	Ruggedized ribbon cable	8-fiber	50/125μm (MM)
	Green	Bare fiber long	12-fiber	62.5/125μm (MM)
	Yellow		16-fiber	OM3
			24-fiber	OM4

Kamaxoptic communication co., Ltd., one of KOC Group members, is specialized in fiber optical passive components and assemblies. Its 10 years' experiences in massive production of fiber optical assemblies ensure the reliable stabilities of its high quality and excellent performances of its products. It obtains the good reputations all these years from customers around the earth for its short lead-time, fast delivery, and timely after-services.

Main Product:
Patch cords and patch panel of various types;
Attenuator of various types;
FTTH devices and components;
Fiber optical equipments, tools and testers..

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.

About KOC

Located in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.

Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!

To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.

To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.

Please visit us website for more information: http://www.koc.com.cn
