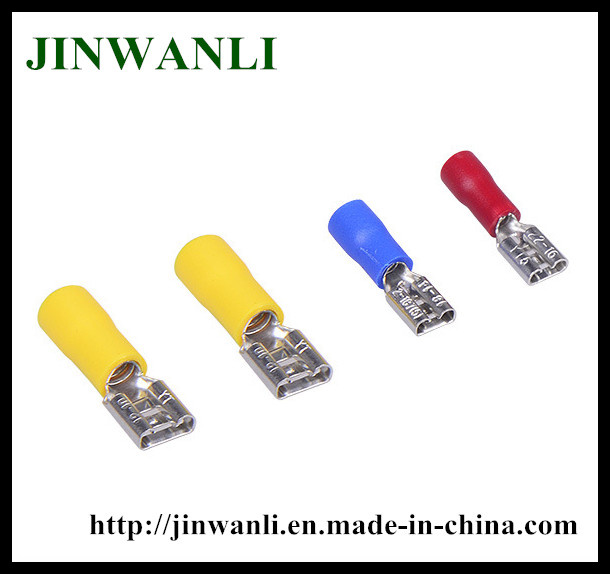

Pbdd Shoulder Shaped Male&Female Pre-Insulating Terminal

Name: Pbdd Shoulder Shaped Male&Female Pre-Insulating Terminal
Brand: all-electronics-online.com
SKU: 713381515
Availability: InStock
Rating: 4.4 (138 reviews)

Price:	US $ 0.01/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Single Hole Terminals
Material:	Copper
Application:	Conduct Electricity
Shape:	Shoulder
Brand:	Jwl

Product Description

Specifications

1) Application: Connect copper conductor (Thickness of material 0.4mm-0.5mm) in power cable with electronic equipment.

2) Material: >99.9% pure copper tube, Insulating tube: Nylon, Pvc.good conductivity.

3) Surface Treatment: Tinned, corrosion resistance

4) Working Temperature: -55 -150°C

5) Certificate: ISO9001-2008

6) Manufacturer: price advantage

Data Sheet of shoulder shaped terminal

Sectional area of conductor 0.5 - 1.5 mm2 A.W.G 22 - 16 Imax : 10A Material: brass
Item No.	NEMA TAB mm	Dimension mm
Item No.	NEMA TAB mm	B	B1	H	D	d	L
FBDD 1.25 - 250	0.8 * 6.35	7.4	6.35	10	3.8	1.7	21.5

Sectional area of conductor:1.5 - 2.5 mm2 A.W.G 16 - 14 Imax :15A Material: brass
Item No.	NEMA TAB mm	Dimension mm
Item No.	NEMA TAB mm	B	B1	H	D	d	L
FBDD 2 - 250	0.8 * 6.35	7.4	6.35	10	4.3	2.3	21.5

Sectional area of conductor:4 - 6 mm2 A.W.G 12 - 10 Imax :24A Material: brass
Item No.	NEMA TAB mm	Dimension mm
Item No.	NEMA TAB mm	B	B1	H	D	d	L
FBDD 5.5 - 250	0.8 * 6.35	7.4	6.3	13	5.7	3.4	25

Section of lead:0.5 - 1.5 mm² (USA Spec 22 - 16 ) Imax = 10A
ITEM NO.	NEMATAB	Dimension
	t	B	B1	H	DΦ	dΦ	L
	mm	mm	mm	mm	mm	mm	mm
PBDD 1.25-250	0.8*6.35	7.4	6.3	10.0	3.8	1.7	21.5

Section of lead:1.5 - 2.5 mm² (USA Spec 12 - 10 ) Imax = 15A
ITEM NO.	NEMATAB	Dimension
	t	B	B1	H	DΦ	dΦ	L
	mm	mm	mm	mm	mm	mm	mm
PBDD 2-250	0.8*6.35	7.4	6.3	10.0	4.3	2.3	21.5

Section of lead:4 - 6 mm² (USA Spec 12 - 10 ) Imax = 24A
ITEM NO.	NEMATAB	Dimension
	t	B	B1	H	DΦ	dΦ	L
	mm	mm	mm	mm	mm	mm	mm
PBDD 5.5-250	0.8*6.35	7.4	6.3	14.0	5.7	3.4	25.0

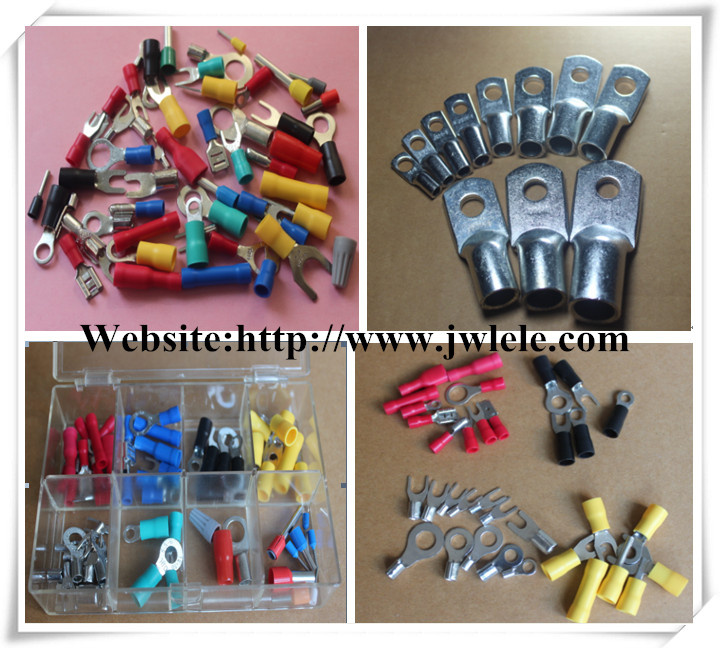

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
