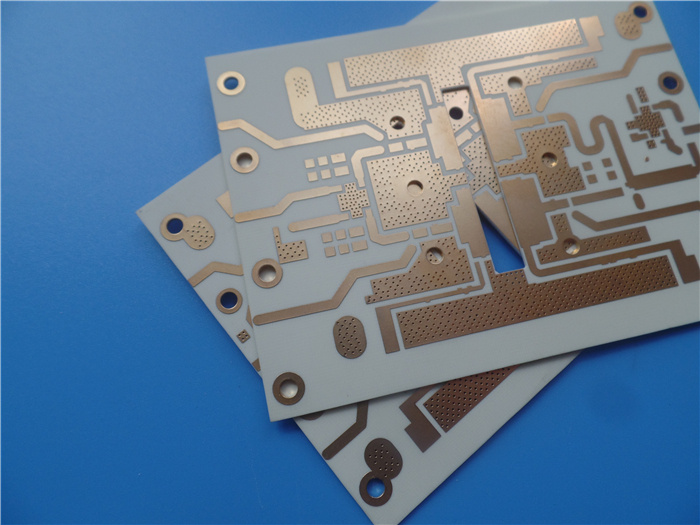

PCB 50 Ohm Single End Impedance PCB Circuit Board
Price: |
US $ 1.04/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union |
Prod Model: |
BIC-631-V6.31 |
Final Foil External: |
2 Oz |
Final Height Of PCB: |
0.8mm |
Surface Finish: |
Immersion Gold |
Solder Mask Color: |
None |
Colour Of Component Legend: |
None |
Minimum Trace And Space: |
13 Mil/15 Mil |
Minimum/Maximum Holes: |
0.3/3.21mm |
Test: |
100% Electrical Test |
Via: |
Plated Through Hole(Pth) |
Board Plating: |
0.0030" |
Type: |
Rigid Circuit Board |
Flame Retardant Properties: |
V0 |
Dielectric: |
RO4350b and RO4450b |
Material: |
Hydrocarbon/Woven Glass |
Insulation Materials: |
Glass Reinforced Hydrocarbon |
Product Description
Company ProfileFounded in Shenzhen China in 2003, Bicheng Enterprise Limited is a professional PCB export
enterprise.
1. More than 15 years of PCB experiences
2. Excellent after-sales service
3. Substrate material: Epoxy glass (FR-4), High frequency, Metal core
4. Price advantages on circuit boards
5. Multilayer PCB and Hybrid material of Multilayer PCB
6. Focus on prototypes, small batches and volume production
7. TS16949 (2009), ISO14001 (2004), ISO9001 (2008), UL certified
High Frequency PCB

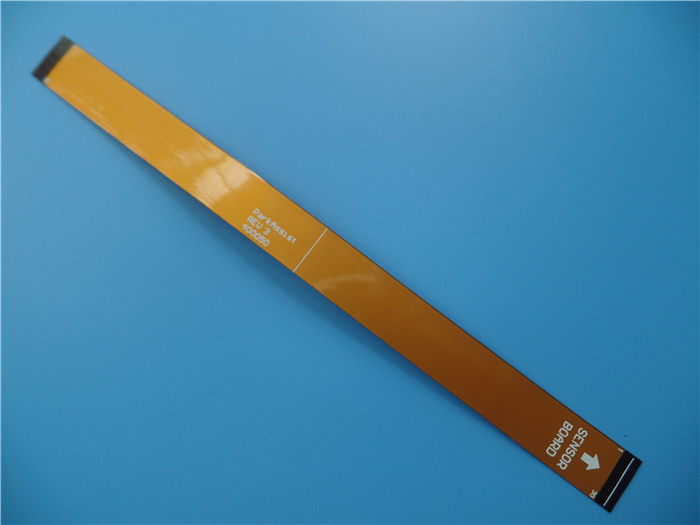

Flexible Printed Circuit

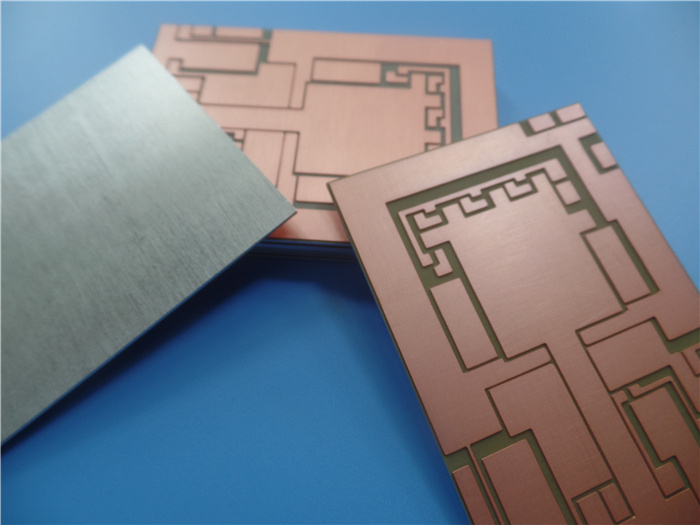

Metal Core PCB

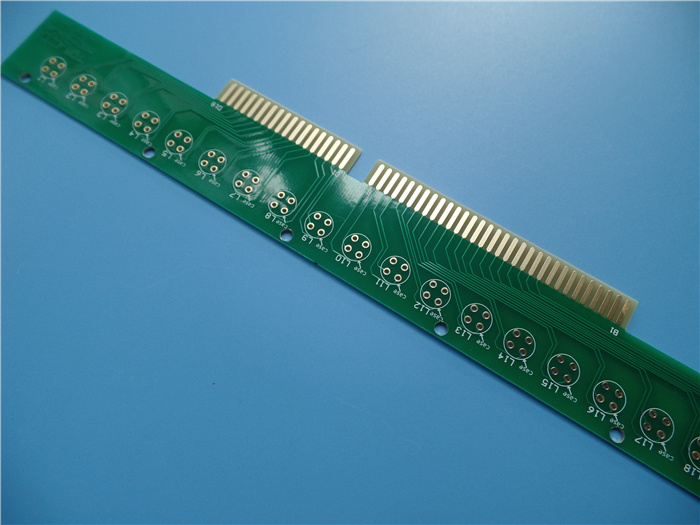

PCB Board

Technology InformationRO4350B & RO4003C Data SheetsProperty | Typical Value | Direction | Units | Condition | Test Method |
| RO4003C | RO4350B | | | | |
Dielectric Constant, εr Process | 3.38±0.05 | 3.48±0.05 | Z | - | 10 GHz/23ºC | IPC-TM -650 2.5.5.5 Clampled Stripline |
Dielectric Constant, εr Design | 3.55 | 3.66 | Z | - | 8 to 40 GHz | Differntial Phase Length Method |
Dissipation Factor Tan, δ | 0.0027 0.0021 | 0.0037 0.0031 | Z | - | 10 GHz/23ºC 2.5 GHz/23ºC | IPC-TM -650 2.5.5.5 |
Thermal Coefficient of εr | 40 | 50 | Z | ppm/ºC | minus 50ºC to 150ºC | IPC-TM -650 2.5.5.5 |
Volume Resistivity | 1.7 x 10¹º | 1.2 x 10¹º | | MΩ·CM | COND A | IPC-TM -650 2.5.17.1 |
Surface Resistivity | 4.2 x 10^9 | 5.7 x 10^9 | | MΩ | COND A | IPC-TM -650 2.5.17.1 |
Electrical Strenghth | 31.8 (780) | 31.2 (780) | Z | KV/mm (V/mil) | 0.51mm (0.020") | IPC-TM -650 2.5.6.2 |
Tensile Modulus | 19650(2850) 19450(2821) | 16767 (2432) 14153 (2053) | X Y | Mpa(ksi) | RT | ASTM D638 |
Tensile Strength | 139(20.2) 100(14.5) | 203(29.5) 130(18.9) | X Y | Mpa(ksi) | RT | ASTM D638 |
Flexural Strength | 276 (40) | 255 (37) | | Mpa(kpsi) | | IPC-TM -650 2.4.4 |
Dimensional Stability | <0.3 | <0.5 | X,Y | mm/m (mils/inch) | after etch E2/150ºC | IPC-TM -650 2.4.39A |
Coefficient of Thermal Expansion | 11 1 46 | 10 12 32 | X Y Z | ppm/ºC | minus 55ºC to 288ºC | IPC-TM -650 2.4.41 |
Tg | >280 | >280 | | ºC TMA | A | IPC-TM -650 2.4.24 |
Td | 425 | 390 | | ºC TGA | | ASTM D3850 |
Thermal Conducvitity | 0.71 | 0.69 | | W/m/ºk | 80ºC | ASTM C518 |
Moisture Absorption | 0.06 | 0.06 | | % | 48 hrs immersion 0.060" sample Temperature 50ºC | ASTM D570 |
Density | 1.79 | 1.86 | | gm/cm³ | 23ºC | ASTM D792 |
Copper Peel Strength | 1.05 (6.0) | 0.88 (5.0) | | N/mm (pli) | after solder float 1 oz. EDC Foil | IPC-TM -650 2.4.8 |
Flammability | N/A | V-0 | | | | UL 94 |
Lead-Free Process Compatible | Yes | Yes | | | | |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
