PCB 3 Oz Heavy Copper 1.0mm Thick Double Sided Board
| Price: |
US $ 1.23/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1292R3.8 |
| Min Line Width (Mil): |
9.99 Mil |
| Board Thick: |
1.01mm |
| Surface Finish: |
HASL |
| Outer Copper Foil: |
108.5 Um(3 Oz) |
| Warp-Twist: |
0.35% |
| Legend Color: |
White |
| Solder Mask Color: |
Green |
| Test: |
100% Electrical Test |
| Min Line Spacing (Mil): |
9.51 Mil |
| Solderability Test: |
245ºC 5s 1 Cycle |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

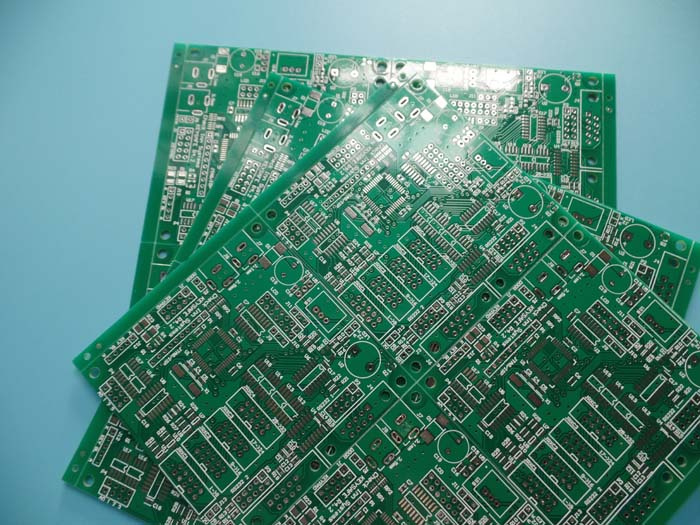

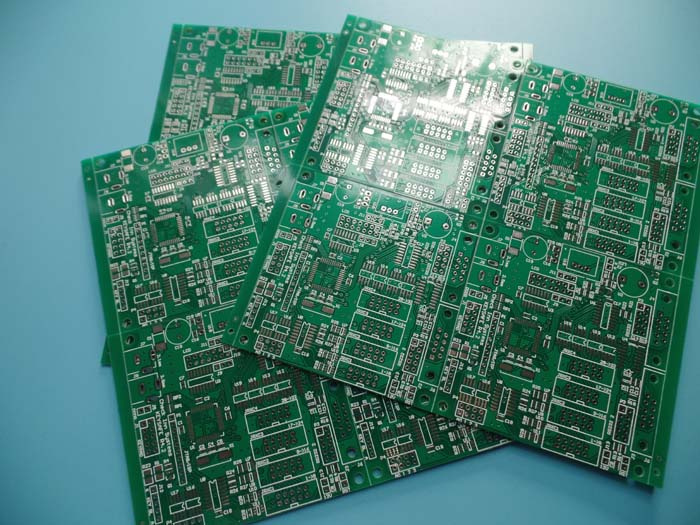

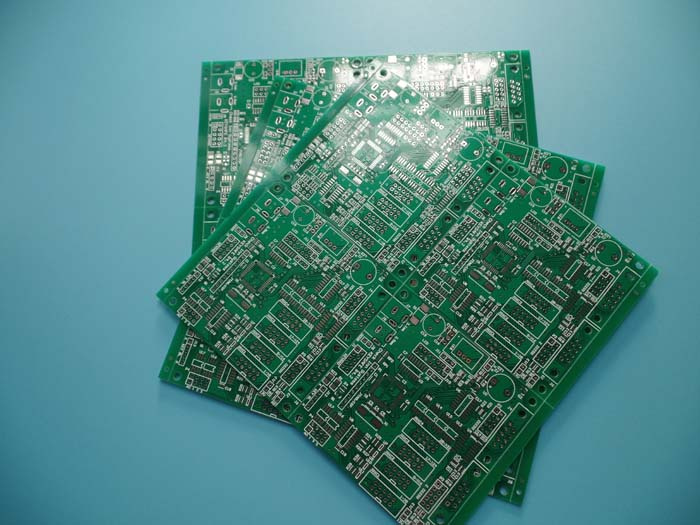

1.0mm Thick PCB circuit 3oz Heavy Copper PCB Double Sided PCB Green
Commodity Introduction
This is a type of FR-4 PCB for the application of battery. It's a 2 layer board at 1.01mm thick. The
base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012
Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| Item | Requirement | Result |
| Laminate | Type | FR-4 TG175 | FR-4 TG175 |
| Supplier | ITEQ | ITEQ |
| Board thickness | 1.00±10% mm | 1.01 mm |
| Outer copper foil | >=105um | 108.5um |
| Inner copper foil | / | / |
| Warp-twist | <= 1.0% | 0.35% |
| Legend | Type | KSM-388 | KSM-388 |
| Color | White | White |
| Location | CS & SS | CS & SS |
| Marking | Co.logo | YES | OK |
| UL.logo | YES | OK |
| Date code | WWYY | 1117 |
| Marking form | Legend | Legend |
| Location | SS | SS |
| Min line width (mil) | 10 | 9.99 |
| Min line spacing (mil) | 9.5 | 9.51 |
| Min ring width (mil) | NA | NA |
| Solder Mask | Type | KSM-S6189 | KSM-S6189 |
| Color | Green | Green |
| Thickness | >=10 um | 16.8um |
| Pencil Test | 4H | OK |
| SOLVENT TEST | NO ATTACK | OK |
| TAPE TEST | NO PEEL OFF | OK |
| Surface Treament | HASL | OK |
| Special Treament | Silk screen | / | / |
| Location | / | / |
| Forming | / | / |
| Normal Testing | Electrical test | 100% PCB passed | OK |
| Visual inspection | IPC-A-600H&IPC-6012B | OK |
| Solderability Test | 245ºC 5S 1 Cycle | OK |
PCB Capability
More than 14 years of PCB experiences
Excellent after-sales service
Substrate material: Epoxy glass (FR-4), High frequency, Metal core
Price advantages on circuit boards
Multilayer PCB and Hybrid material of Multilayer PCB
Focus on prototypes, small batches and volume production
TS16949 (2009), ISO14001 (2004), ISO9001 (2008), UL certified| Printed Circuit Board Capability |
| Parameter | Value |
| Layer Counts | 1-32 |
| Substrate Material | FR-4(including High Tg 170, High CTI>600V);
Aluminum based; RO4350B, RO4003C;
94HB and FR-1 (upon request) |
| Maximum Size | Flying test: 900*600mm, Fixture test 460*380mm,
No test 1100*600mm |
| Board Outline Tolerance | ±0.0059" (0.15mm) |
| PCB Thickness | 0.0157" - 0.3937" (0.40mm--10.00mm) |
| Thickness Tolerance(T≥0.8mm) | ±8% |
| Thickness Tolerance(t<0.8mm) | ±10% |
| Insulation Layer Thickness | 0.00295" - 0.1969" (0.075mm--5.00mm) |
| Minimum Track | 0.003" (0.075mm) |
| Minimum Space | 0.003" (0.075mm) |
| Outer Copper Thickness | 35µm--420µm (1oz-12oz) |
| Inner Copper Thickness | 17µm--420µm (0.5oz - 12oz) |
| Drill Hole(Mechanical) | 0.0059" - 0.25" (0.15mm--6.35mm) |
| Finished Hole(Mechanical) | 0.0039"-0.248" (0.10mm--6.30mm) |
| DiameterTolerance(Mechanical) | 0.00295" (0.075mm) |
| Registration (Mechanical) | 0.00197" (0.05mm) |
| Aspect Ratio | 12:1 |
| Solder Mask Type | LPI |
| Min Soldermask Bridge | 0.00315" (0.08mm) |
| Min Soldermask Clearance | 0.00197" (0.05mm) |
| Plug via Diameter | 0.0098" - 0.0236" (0.25mm--0.60mm) |
| Impedance Control Tolerance | ±10% |
| Surface Finish | HASL,HASL LF,ENIG,Imm Tin,
Imm Ag, OSP, Gold Finger |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
