PCB Assembly 4 Layer Green Soldermask with HASL Lead Free
| Price: |
US $ 0.57/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-273-V2.73 |
| Board Thickness: |
1.6mm +/-0.16 |
| Tg Value Of Board Material: |
135ºC |
| Surface Finish: |
HASL Lead Free |
| Surface Cu Thickness: |
35 Um (1 Oz) |
| Solder Mask Colour: |
Green |
| Color Of Silkscreen: |
White |
| Total Quantity Of Components: |
185 |
| RoHS Required: |
Yes |
| Applications: |
Access Control Board |
| Test: |
100% Electrical Test |
| Mode Of Production: |
SMT |
| Layers: |
Multilayer |
| Base Material: |
FR-4 |
| Certification: |
ISO |
| Customized: |
Customized |
| Metal Coating: |
HASL Lead Free |
Product Description

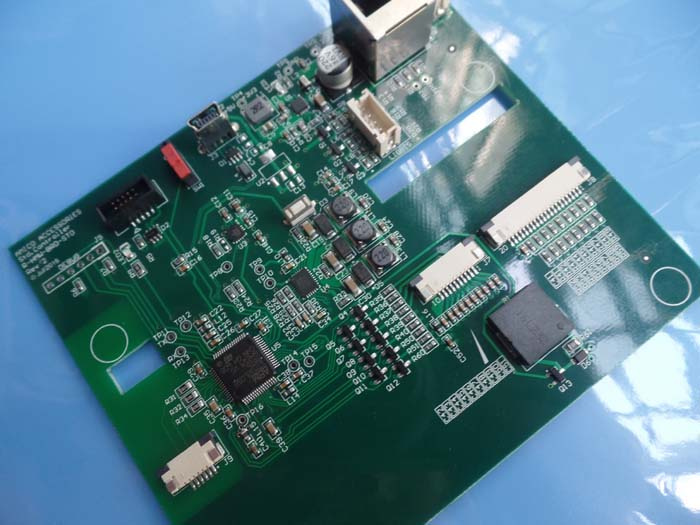

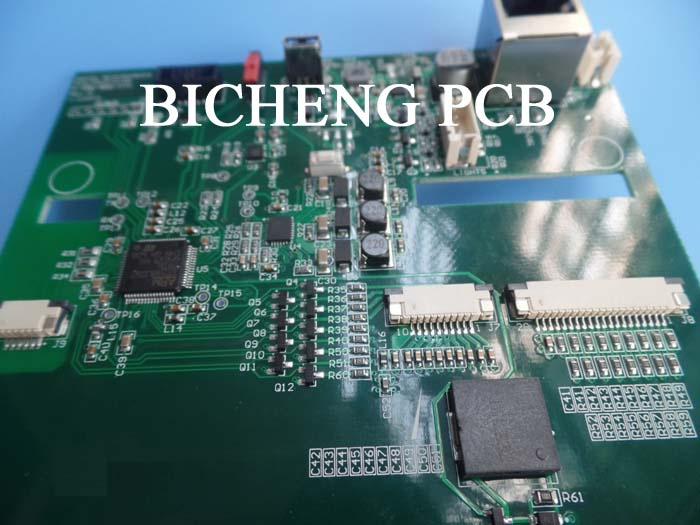

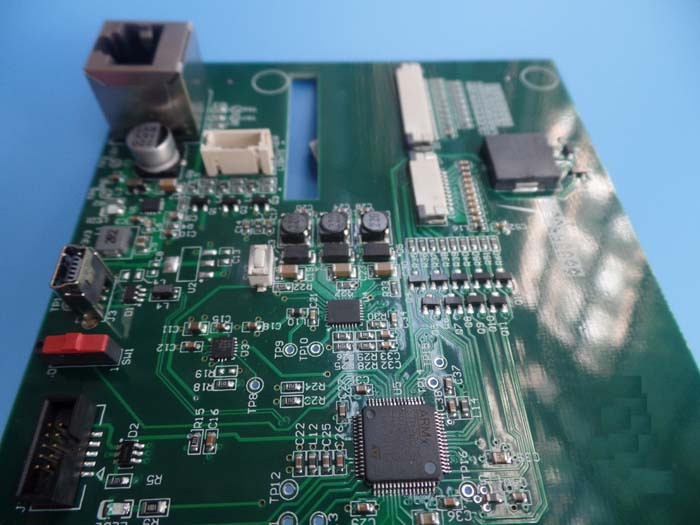

Multilayer PCB Circuit 4 Layer FR4 PCB assembly with HASL Lead Free for Access control
Board
Commodity Introduction
This is a type of PCB assembly job in the application of control system. It's composed of SMD
assembly and through hole assembly. It's fabricated per IPC-A-610 using supplied Gerber data
and bill of material (BOM). The support board is 4 layers with HASL lead free. SMD and through
hole components are on both sides.
Parameters & Data Sheet| Specifications |
| Board dimension | 115 x 100mm |
| Board Type | Multilayer 4 Layers |
| Board Thickness | 1.6mm +/-0.16 |
| Board Material | FR-4 |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 135ºC |
| |
| Surface Finish | HASL Lead free |
| RoHS Required | Yes |
| Surface Cu thickness | 35 um (1oz) |
| |
| Color of Silkscreen | White |
| Number of Silkscreen | 2 |
| Solder Mask Colour | Green |
| Number of Solder Masks | 2 |
| Thickness of Solder Mask | 13um |
| |
| Through hole assembly | YES |
| Sides of through hole assembly | 1 |
| SMD assembly | YES |
| Sides of SMD assembly | 2 |
| |
| Total quantity of components | 185 |
| Quantity of SMT | 162 |
| Quantity of Through holes | 23 |
| Applications | Access control board |
| RoHS Required | YES |
Learn PCB and Buy PCB
The components of multilayer PCB: copper foil
A multilayer board consists of copper foils, thin rigid laminates and prepreg sheets.
The standard thicknesses for copper foils are shown below| µm | 5 | 9 | 12 | 17.5 | 35 | 70 |
| oz | 0.14 | 0.25 | 0.34 | 0.5 | 1 | 2 |
Thick copper (heavy copper) foils are used for voltage and ground planes by some electronics
companies. Thicknesses up to 210 µm (6 oz) are specified for high voltage coil boards. For very
fine-line boards, 5 and 9 µm (0.14 and 0.25 oz.), ultrathin copper foils are also used for the outer
layers.
Copper foils are used as copper cladding of the thin laminates used in the inner layers. Such
laminates can be delivered with different copper thicknesses on the two sides, for example,
17.5 µm (0.5 oz.) on one side for a signal layer and 35 µm (1 oz.) on the other side for ground
or voltage planes.
Copper foils are sometimes used directly as cap foils for the outer layers. In such cases, the
copper foils are bonded to the next layers by means of prepreg and form the outer layer circuits.
For signal outer layers, the copper foil thickness is usually 17.5 µm (0.5 oz.) or 35 µm (1 oz.)
depending on the minimum track width and spacing. In the case of high-density fine-line boards,
5 or 9 µm (0.14 or 0.25 oz.) ultrathin copper foils can be the only solution to achieve the required
high resolution when etching the board.
For signal inner layers, a 35 µm (1 oz.) copper foil is normally chosen. For ground and voltage
planes, 35 µm (1 oz.) and 70 µm (2 oz.) copper foils can be used. However, the thicker foil, the
more difficult it is to fill the apertures in the planes around the hole wall with epoxy flowing from
the prepreg sheets during lamination.
