Prod Model:	BIC-1416-V1.1
Metal Coating:	Tin
Mode Of Production:	SMT
Layers:	Double-Layer
Base Material:	FR-4
Certification:	RoHS
Customized:	Customized
Condition:	New

Product Description

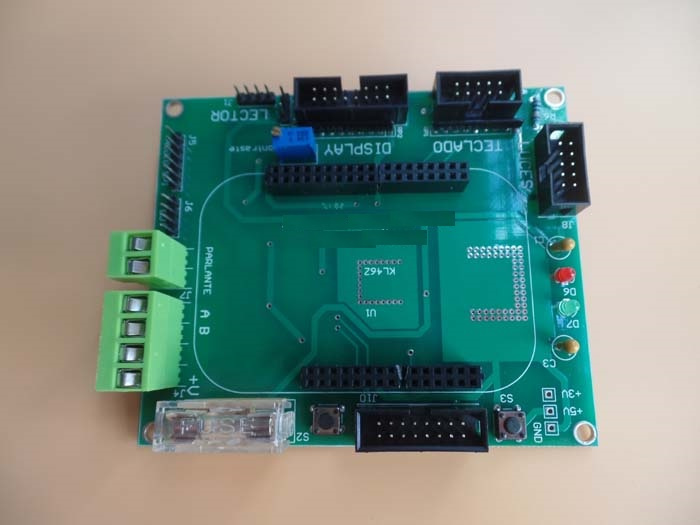

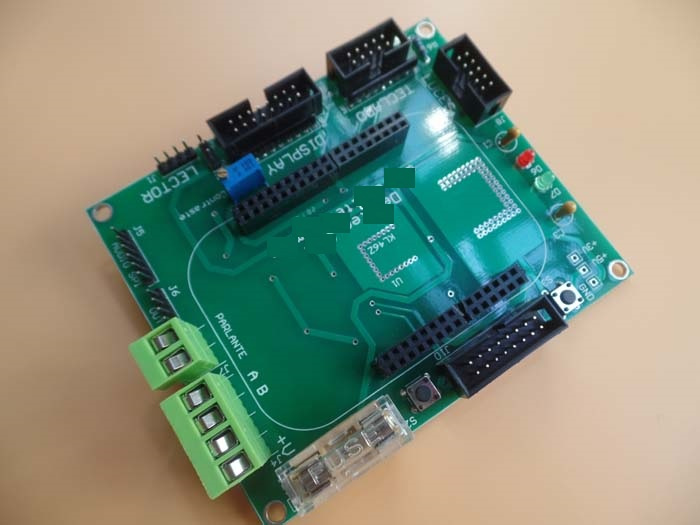

PCB assembly Double Sided PCB Circuits 366

Commodity Introduction
This is a type of PCB assembly job for the application of alarm systems. It's composed of SMD assembly and through hole assembly. It's fabricated per IPC-A-610 using supplied Gerber data and bill of material (BOM). The support board is a 2 layer board. SMD components and through holes components are on the opposite sides.

Data Sheet & Parameter

Board dimension	105.79 x 98.6mm
Board Type	Double sided PCB
Board Thickness	1.6mm +/-0.16
Board Material	FR-4
Board Material Supplier	ITEQ
Tg Value of Board Material	135ºC

Surface Finish	HASL Lead free
RoHS Required	Yes
Surface Cu thickness	35 um (1oz)

Color of Silkscreen	Whie
Number of Silkscreen	2
Solder Mask Colour	Green
Number of Solder Masks	2
Thickness of Solder Mask	13um

Through hole assembly	YES
Sides of through hole assembly	1
SMD assembly	YES
Sides of SMD assembly	1

Total quantity of components	53
Quantity of SMT	36
Quantity of Through holes	17
Applications	Alarm system
RoHS Required	YES
