PCB Black Fr4 Double Sided Circuit Board OEM

PCB Black Fr4 Double Sided Circuit Board OEM
Price: US $ 3.08/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: BIC-452.1757-V1.1
Final Foil External: 1 Oz
Final Height Of PCB: 1.6mm
Surface Finish: Immersion Gold
Solder Mask Color: Green, Psr-2000gt600d, Taiyo Supplied
Colour Of Component Legend: White, Ijr-4000 MW300, Taiyo Supplied.
Minimum Trace And Space: 4 Mil/4 Mil
Minimum / Maximum Holes: 0.3/5.5mm
Via: Not Be Visible
Board Plating: 0.0030" (0.076mm)
Test: 100% Electrical Test Prior Shipment
Type: Rigid Circuit Board
Dielectric: FR-4
Material: Fiberglass Epoxy
Flame Retardant Properties: V0

Product Description

Company Profile
The manufacturing facilities are independent industrial plant. There're 16000 square meters workshop area. Brand new automatic equipment was introduced from Israel, Germany, Japan and Taiwan area.
As of now the manufacturing capability for 2-12 layer PCBs covers 300 thousand square feet per month. 7000-8000 types of different PCBs are shipped to worldwide each month.


PRODUCTS & SERVICES
a) FR-4 TG>135, High TG>170, High CTI>600V
b) RO4350B, RO4003C, F4B microwave material
c) Aluminum based PCB, 1W/MK-3W/MK material
d) Layer Count up to 32 layers

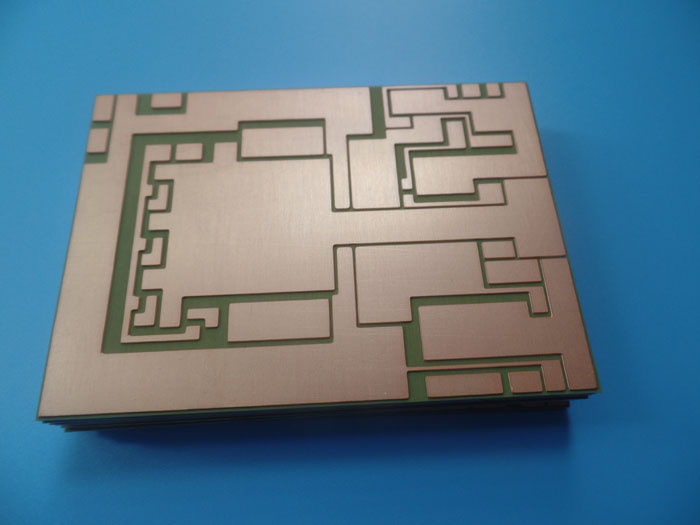

e) Heavy Copper
f) Hybrid Material Multilayer PCB
g) Impedance Controlled PCB
h) HASL Lead free, Electroless Nickle Immersion Gold (ENIG), Immersion Silver, Immersion Tin, OSP
i) Color of Solder Mask: Green, Blue, Matt Blue, Yellow, Black, Red and White etc.
j) Special holes: blind via, countersink hole, castellation hole, press-fit hole
k) Quick turn-around (QTA) Delivery
l) Minimum Order Quantity (MOQ) 1 pcs
m) Door to Door shipment service

SERVICE AREA
North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western & Southern Europe, Northern Europe, Central & South Asian, Middle East.


PCB Board


Aluminum PCB

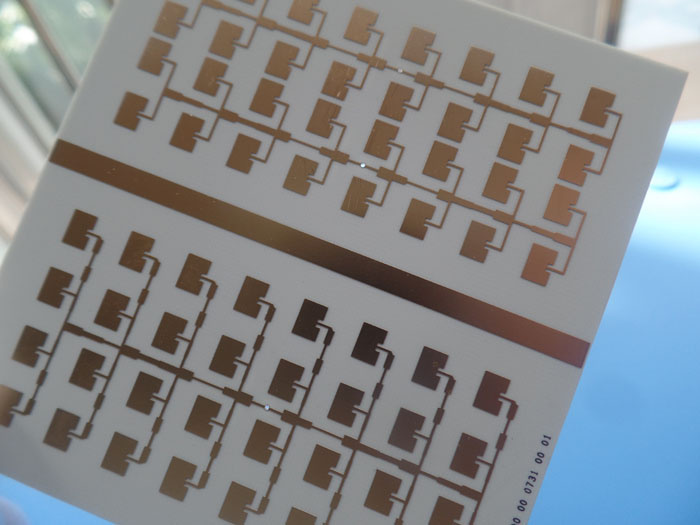

Microwave PCB

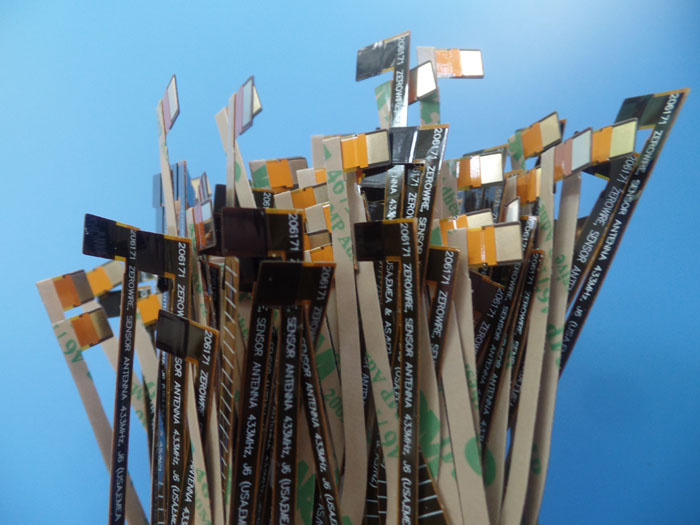

Flexible PCB


ENIG

ENIG stands for Electroless nickel immersion gold which is a type of surface plating used for circuit boards. It consists of an electroless nickel plating covered with a thin layer of immersion gold. Normally, the thickness of nickel is 120µ" - 200µ" (3µm to 5µm ) and gold 1-5µ" (0.025µm - 0.127µm).

ENIG has several advantages than HASL, including
a) Excellent surface planarity, particularly helpful for PCBs with BGA packages or even CSP mounted components to reduce failure rate during assembly and soldering.
b) Good oxidation resistance and good heat dissipation.
c) Long storage time (It can be stored for more than 1 year in vacuum bag)
d) High solderability, no stressing of circuit boards and less contamination of PCB surface.
e) SMT process is resistant to reflow soldering, resistant to rework.

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
