PCB Board 2 Layers 0.8mm Thick with Green Soldermask
| Price: |
US $ 0.41/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1273R1.3 |
| Solder Mask Color: |
Green |
| Surface Finish: |
HASL Lead Free |
| Copper Thick: |
1 Oz |
| Legend Color: |
White |
| Board Thick: |
0.8mm |
| Minimum Trace and Space: |
5.6 Mil/6 Mil |
| Minimum / Maximum Holes: |
0.5/2.2mm |
| Via: |
Plated Through Hole(Pth) |
| Board Plating: |
0.0030" |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Double Sided PCB Board Service 0.8mm Thick Printed Circuit Board FR-4 Tg135 HASL
Applied In Analog Controller
Commodity Introduction

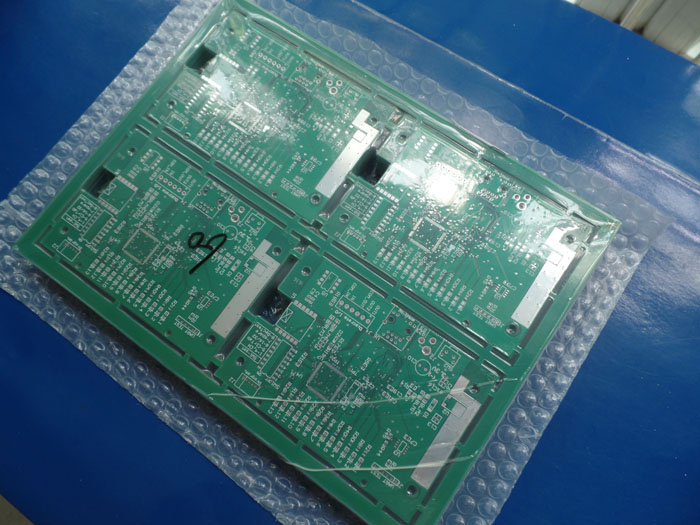

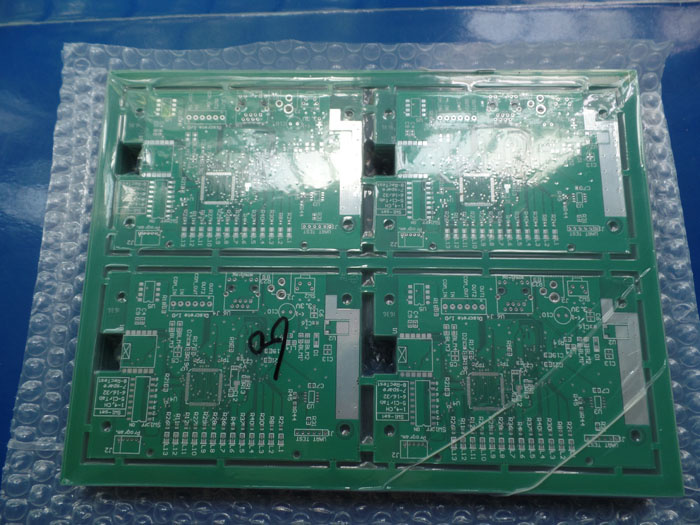

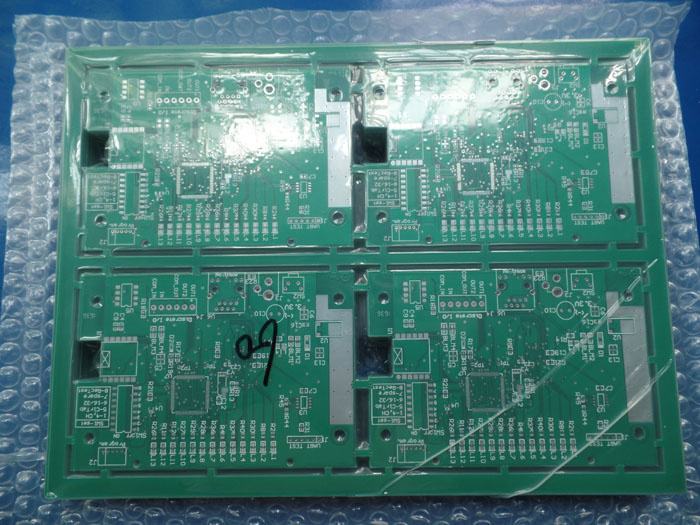

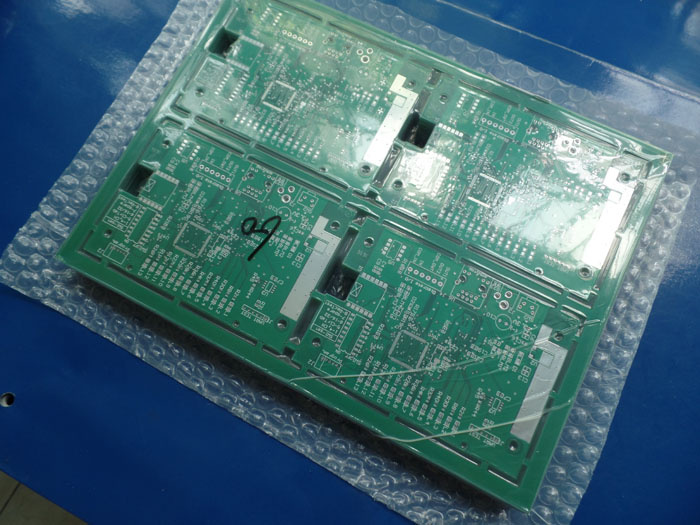

This is a type of FR-4 PCB for the application of Controller. It's a 2 layer board at 0.8mm thick.
The base laminate is from ShengYi, Solder mask and silkscreen from Taiyo. It's fabricated per
IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 211 x 144mm=4PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18um(0.5oz)+PLATE |
| FR-4 0.6mm |
| copper ------- 18um(0.5oz)+PLATE |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5.6mil/6mil |
| Minimum / Maximum Holes: | 0.5/2.2mm |
| Number of Different Holes: | 15 |
| Number of Drill Holes: | 241 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | NO |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, Shengyi S1140, TG>135, er<5.4 |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 0.8mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | HASL ,Lead Free, Sn>=2.54µm |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo supplied. Peelabel mask. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, v-cut, Fiducial marks |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Analog controller, USB Bluetooth Dongle
4G Coverage
Security Cam
Duplexer
Electronic Lock |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Bicheng PCB board
Bicheng Enterprise Limited offers single sided PCB, double sided PCB and multilayer circuit
boards. We have been serving electronics industry in Shenzhen, China for 14 years.
OUR ADVANTAGES
* Your satisfied source to buy printed circuit boards (PCBs)
* All PCBs are 100% tested (flying probe or fixture test)
* Free panelizing
* Special price for partners
* On time delivery
* No minimum order quantity
* Worldwide shipping, door to door service
OUR PRODUCTS
* PCB Prototypes and PCB mass production
* Rigid PCB Fabrication
* Flexible PCB (FPC)
* PCB up to 32 layers
* RoHS complaint, Lead free PCBs
* Material: FR-4, High Tg (Tg170, Tg180), RO4350B, RO4003C, Polyimide, Aluminum core.
* Controlled Impedance
* Hybrid PCB
* Heavy copper
* Surface finish: HASL, HASL lead free, Immersion tin, Immersion silver, Immersion gold, Gold
finger
* Blind via, countersunk hole, castellation hole, press-fit hole
* 3 days to 4 weeks lead time
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

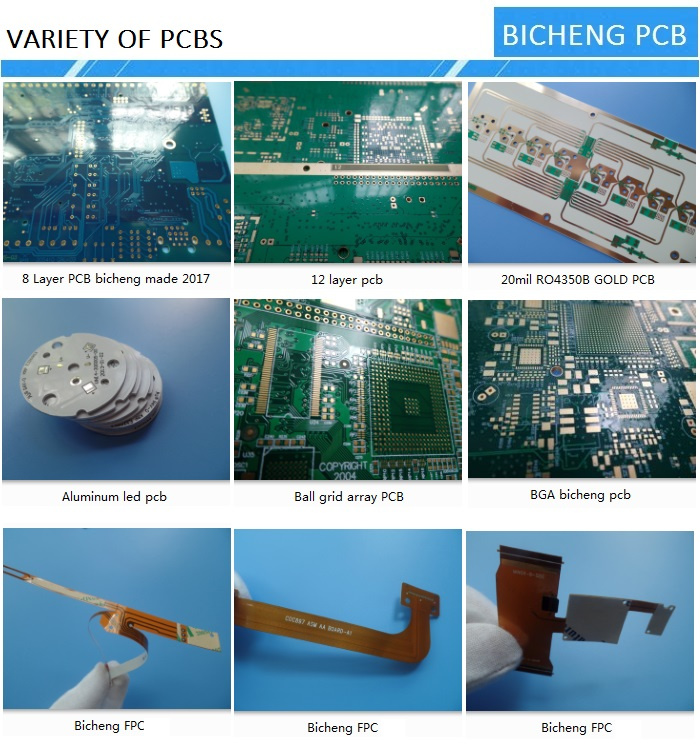

A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
