PCB Board 4 Layer HASL with Green Soldermask V-Cut Machining
| Price: |
US $ 0.63/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-230-V2.30 |
| Outer Copper Foil: |
1oz |
| Board Thickness: |
1oz |
| Surface Treament: |
HASL Lead Free |
| Solder Mask: |
Green,Psr-2000gt 600d |
| Legend: |
White,Ijr-4000 MW300 |
| Min Line Width (Mil): |
8.2 |
| Min Line Spacing (Mil): |
8 |
| Warp-Twist: |
0.21% |
| Electrical Test: |
100% PCB Passed |
| Forming: |
V-Cut |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Prototype Tg 170 4 Layer Green Solder Mask PCB with HASL for Routing Milling V-cut
Machining contour Panel PCB in Wireless Antennas
Commodity Introduction

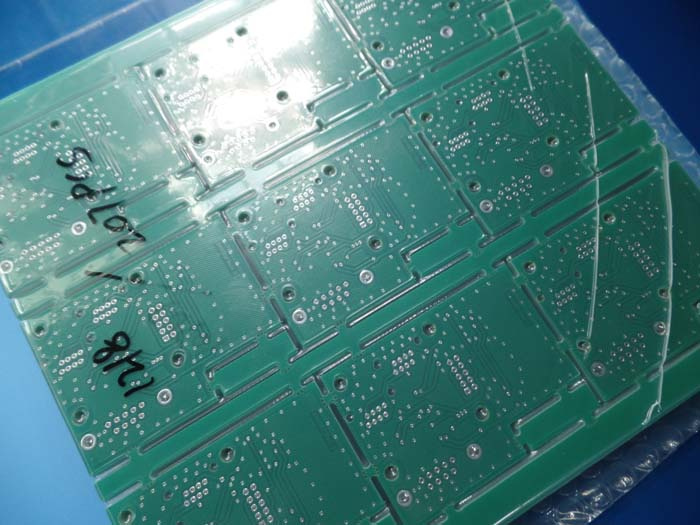

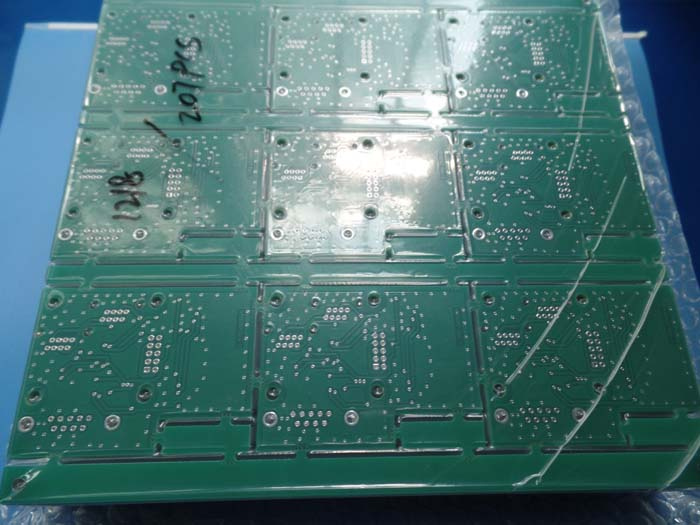

This is a type of FR-4 PCB for the application of Wireless Antennas. It's a 4 layer board at 1.6mm
thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per
IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| Item | Requirement | Result |
| Laminate | Type | FR-4 TG170 | FR-4 TG170 |
| Supplier | ITEQ | ITEQ |
| Board thickness | 1.6+/-10%mm | 1.60-1.63mm |
| Outer copper foil | >=35 um | 43.98um |
| Inner copper foil | 35um | 35um |
| Warp-twist | <= 0.75% | 0.21% |
| Legend | Type | IJR-4000 MW300 | IJR-4000 MW300 |
| Color | White | White |
| Location | CS & SS | CS & SS |
| Marking | Co.logo | YES | OK |
| UL.logo | YES | OK |
| Date code | WWYY | WWYY |
| Marking form | NA | OK |
| Location | CS | CS |
| Min line width (mil) | 8 | 8.2 |
| Min line spacing (mil) | 8 | 8 |
| Min ring width (mil) | NA | NA |
| Solder Mask | Type | PSR-2000GT 600D | PSR-2000GT 600D |
| Color | Green | Green |
| Thickness | >=10 um | 14 um |
| Pencil Test | 6H OR ABOVE | OK |
| SOLVENT TEST | NO ATTACK | OK |
| TAPE TEST | NO PEEL OFF | OK |
| Surface Treament | HASL Lead free | OK |
| Special Treament | Silk screen | / | / |
| Location | / | / |
| Forming | V-cut | OK |
| Normal Testing | Electrical test | 100% PCB passed | OK |
| Visual inspection | IPC-A-600H&IPC-6012C | OK |
| Solderability Test | 245ºC 5S 1 Cycle | OK |
Finished dimension (unit: mm): including v-cut| No | Required Dimension (tolerance) | Actual Dimension |
| 1 | 355.60 | 355.72 | 355.63 | 355.68 | 355.65 |
| 2 | 213.03 | 212.99 | 212.95 | 213.04 | 212.98 |
Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)| NO | Required | PTH | Actual Dimension |
| 1 | 0.610 | Y | 0.600 | 0.575 | 0.625 | 0.600 |
| 2 | 0.760 | Y | 0.750 | 0.725 | 0.775 | 0.750 |
| 3 | 0.810 | Y | 0.800 | 0.750 | 0.825 | 0.800 |
| 4 | 0.900 | Y | 0.900 | 0.875 | 0.925 | 0.900 |
| 5 | 1.020 | Y | 1.025 | 1.000 | 1.050 | 1.025 |
| 6 | 1.100 | Y | 1.100 | 1.075 | 1.125 | 1.100 |
| 7 | 2.100 | Y | 2.100 | 2.075 | 2.125 | 2.100 |
| 8 | 2.500 | Y | 2.500 | 2.475 | 2.525 | 2.500 |
| 9 | 3.200 | Y | 3.200 | 3.175 | 3.225 | 3.200 |
| 10 | 3.500 | N | 3.500 | 3.475 | 3.525 | 3.500 |
Learn PCB and Buy PCB
Glass Transition Temperature (Tg)
The thermal properties of the resin system are characterized by the glass transition
temperature(Tg), which always is expressed in °C. The most commonly used property is the
thermal expansion.When measuring the expansion versus the temperature, we can get a curve
as shown in followingpicture. The Tg is determined by the intersection of the tangents of the flat
and steep parts of theexpansion curve. Below the glass transition temperature, the epoxy resin
is rigid and glassy. Whenthe glass transition temperature is exceeded, it changes to a soft and
rubbery state.
For the most commonly used types of epoxy resin (FR-4 grade), the glass transition temperature
is in the range 115-130°C, so when the board is soldered, the glass transition temperature is easily
exceeded. The board expands in the Z-axis direction and stresses the copper of the hole wall.
The expansion of epoxy resin is about 15 to 20 times greater than that of copper when exceeding
Tg.This implies a certain risk of wall cracking in plated-through holes, and the more resin around
the hole wall, the greater risk. Below the glass transition temperature, the expansion ratio between
epoxy and copper is only three times, so here the risk of cracking is negligible.
