PCB Board 4 Layer PCB 1oz Each Layer 1.52-1.56mm Thick

Name: PCB Board 4 Layer PCB 1oz Each Layer 1.52-1.56mm Thick
Brand: all-electronics-online.com
SKU: 823745705
Availability: InStock
Rating: 4.4 (42 reviews)

Price:	US $ 1.23/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC1335R3.8
Surface Finish:	HASL Lead Free
Board Material:	Fr-4
Min Line Width (Mil):	6.2
Min Line Spacing (Mil):	5.8
Solder Mask Color:	14 Um
Outer Copper Foil:	41.35
Inner Copper Foil:	1oz
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

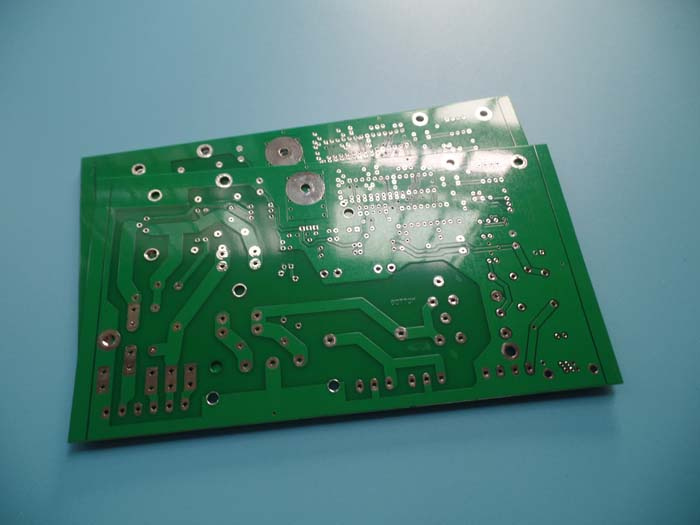

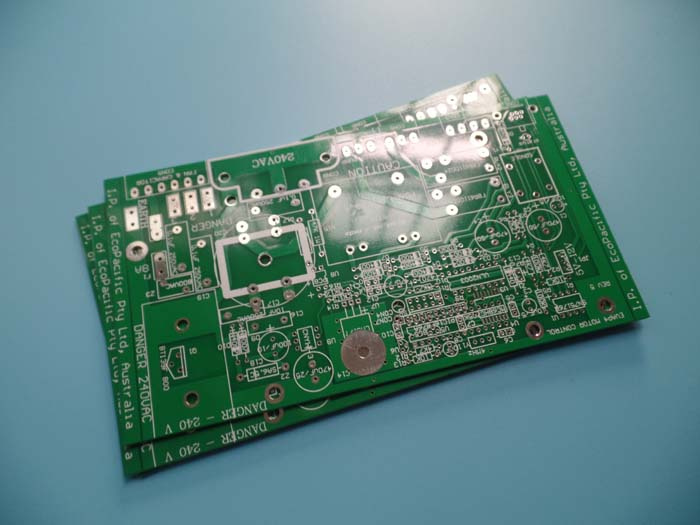

PCB board 4 Layer PCB 1oz Each Layer 1.52-1.56mm Thick

Commodity Introduction
This is a type of FR-4 PCB for the application of CODEC. It's a 4 layer board at 1.52mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.

Parameters & Data Sheet

Item		Requirement	Result
Laminate	Type	FR-4 TG170	FR-4 TG170
	Supplier	ITEQ	ITEQ
	Board thickness	1.60±10%mm	1.52-1.56mm
	Outer copper foil	>=35 um	41.53
	Inner copper foil	1/1 OZ	1/1 OZ
	Warp-twist	<= 1%	0.71%
Legend	Type	KUANG SHUN	KUANG SHUN
	Color	White	White
	Location	CS	CS
Marking	Co.logo	YES	OK
	UL.logo	YES	OK
	Date code	WWYY	0 717
	Marking form	/	/
	Location	CS	CS
Min line width (mil)		6	6.2
Min line spacing (mil)		6	5.8
Min ring width (mil)		NA	NA
Solder Mask	Type	KUANG SHUN	KUANG SHUN
	Color	Green	Green
	Thickness	>=10 um	14 um
	Pencil Test	6H OR ABOVE	OK
	SOLVENT TEST	NO ATTACK	OK
	TAPE TEST	NO PEEL OFF	OK
Surface Treament	HASL Lead free		OK
Special Treament	Silk screen	/	/
	Location	/	/
	Forming	V-cut	OK
Normal Testing	Electrical test	100% PCB passed	OK
	Visual inspection	IPC-A-600H&IPC-6012B	OK
	Solderability Test	245ºC 5S 1 Cycle	OK

PCB Bow and Warpage
The value B shall be less than 0.75% of the diagonal of the panel.
