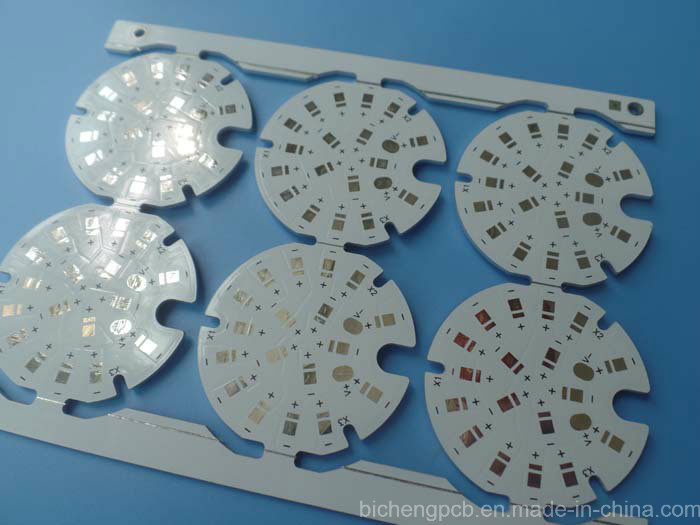

PCB Board 4 Oz (140 um) Metal Back Single End Impedance

Name: PCB Board 4 Oz (140 um) Metal Back Single End Impedance
Brand: all-electronics-online.com
SKU: 831392995
Availability: InStock
Rating: 4.4 (111 reviews)

Price:	US $ 1.2/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-563-V5.63
Board Thickness:	0.20mm
Tg Value Of Board Material:	60ºC
Surface Cu Thickness:	35 µm (1 Oz)
Pth Cu Thickness:	≥20 µm
Surface Finish:	Immersion Gold
Coverlay Colour:	Yellow
Color Of Silkscreen:	White
Peeling Test Of Coverlay:	No Peelable
RoHS Required:	Yes
Function:	100% Pass Electrical Test
Structure:	Double-Sided FPC
Material:	Polyimide
Combination Mode:	Adhesive Flexible Plate
Conductive Adhesive:	Conductive Silver Paste
Application:	Application of Antenna
Insulation Materials:	Polyimide
Brand:	Bicheng

Product Description

Company Profile
Bicheng Enterprise Limited is a unique printed circuit board supplier and export enterprise. We
have been specialized in multispecies of PCB, medium and small batch PCB, superior difficulty
PCB and quick turn-around prototypes. The single plant has the highest operating efficiency,
the strongest mixed manufacturing capacity, the best performance ratio of the fast circuit board
supplier.

Printed Circuit Board

High Frequency PCB

Aluminum PCB

Flexible PCB

Performance parameter of MCPCB substrate (The parameter will continue to be improved
without notice)

Test item	Unit	Aluminum base	Copper base	Iron base	Test method
Test item	Unit	Actual vale	Actual vale	Actual vale	Test method
Peel strength	N/mm	2.2	2	2.3	4010 of GJB1651
Surface resistance	MΩ	1 x (10^6)	1 x (10^6)	1 x (10^6)	5020 of GJB1651
Volume resistance	MΩ.m	3.2 x (10^7)	3.2 x (10^7)	3.2 x (10^7)	5020 of GJB1651
Breakdown voltage	KV/min	≥2.0 (Breakdown voltage is adjustable according to customers' demend)	≥1.0 (Breakdown voltage is adjustable according to customers' demend)	≥1.0 (Breakdown voltage is adjustable according to customers' demend)	5040 of GJB1651
Solder dipping	ºC/min	260ºC, 3 minutes, no bubble and delamination	260ºC, 3 minutes, no bubble and delamination	260ºC, 3 minutes, no bubble and delamination	4010 of GJB1651
Flammability	-	FV-0	FV-0	FV-0	17 of GB /T4722
Thermal resistance	ºC/W	0.25-1.2	0.25-1.2	0.25-1.2	TO-220
Dielectric constant	-	3	3	3	(40ºC, 93%,96h)
Thermal conductivity of Dielectric	W/M.K	0.8-8	0.8-350	0.8-3	ASTM 5470-D
Working temperature	ºC	≤120	≤120	≤120	(40ºC, 93%,1Y)
Thermal conductivity of metal base	W/M.K	≥200	≥350	≥45	ASTM

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
